KOALA Bell switch n/t IP44 grey/graphite 155-08

local index:
MNZ004VIPL
Catalog No:
155-08
EAN code:
5906365208240
Manufacturer: VIPLAST
Depth [mm]: 48
Number of keys: 1
Color: Gray | Graphite
Price:
4,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 2 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

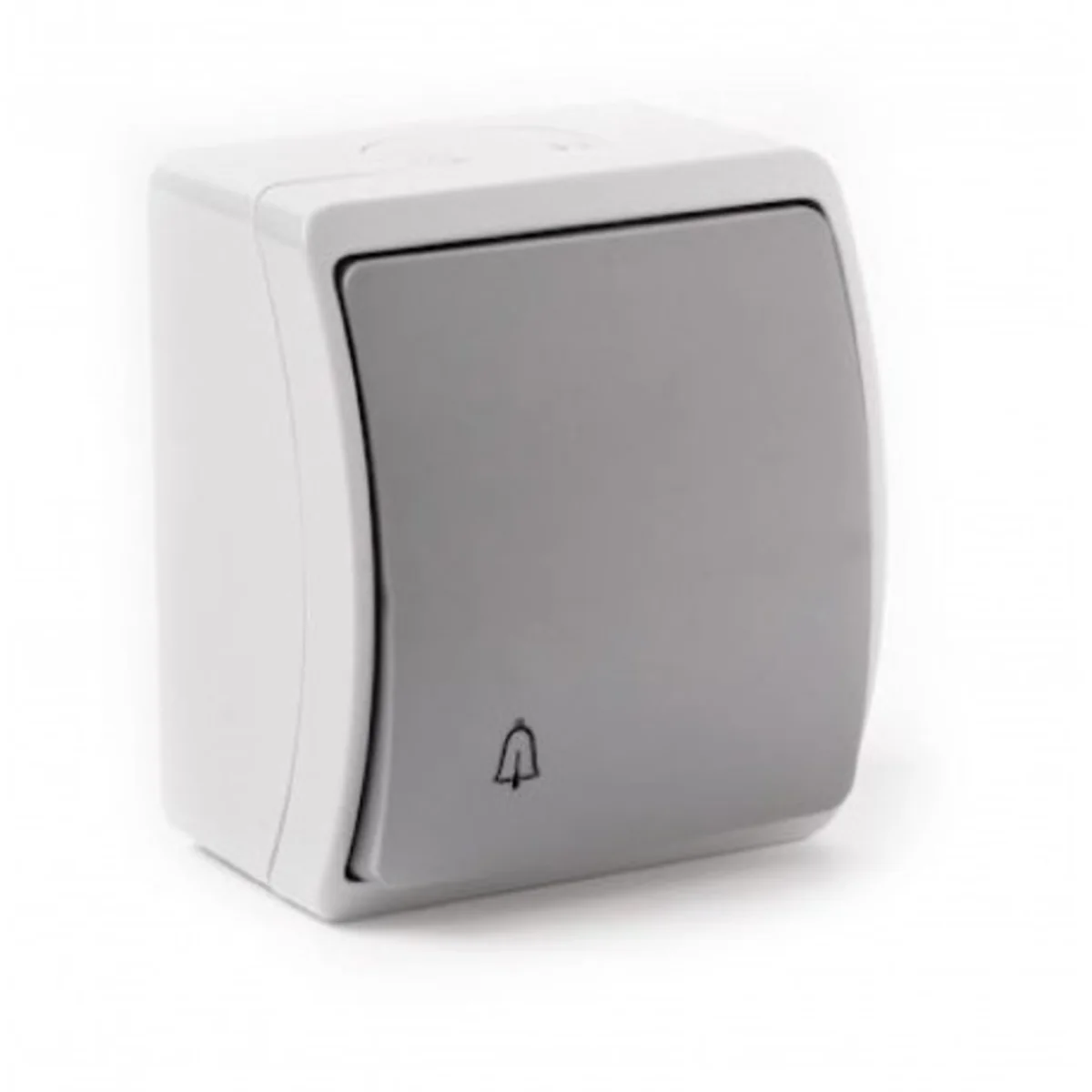

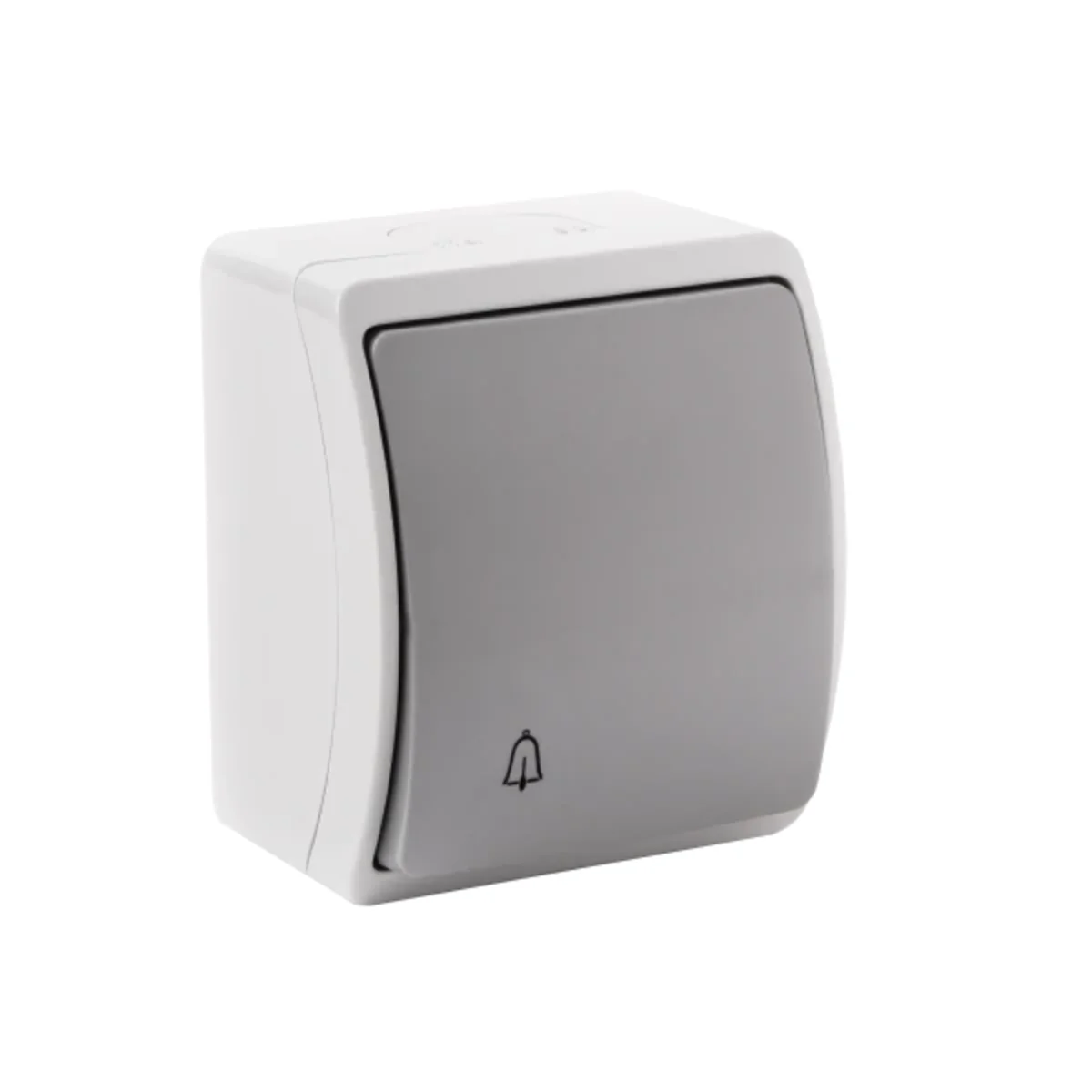

Surface-mounted bell switch from the Koala series, from the manufacturer ViPlast. The product part number is 155-08.

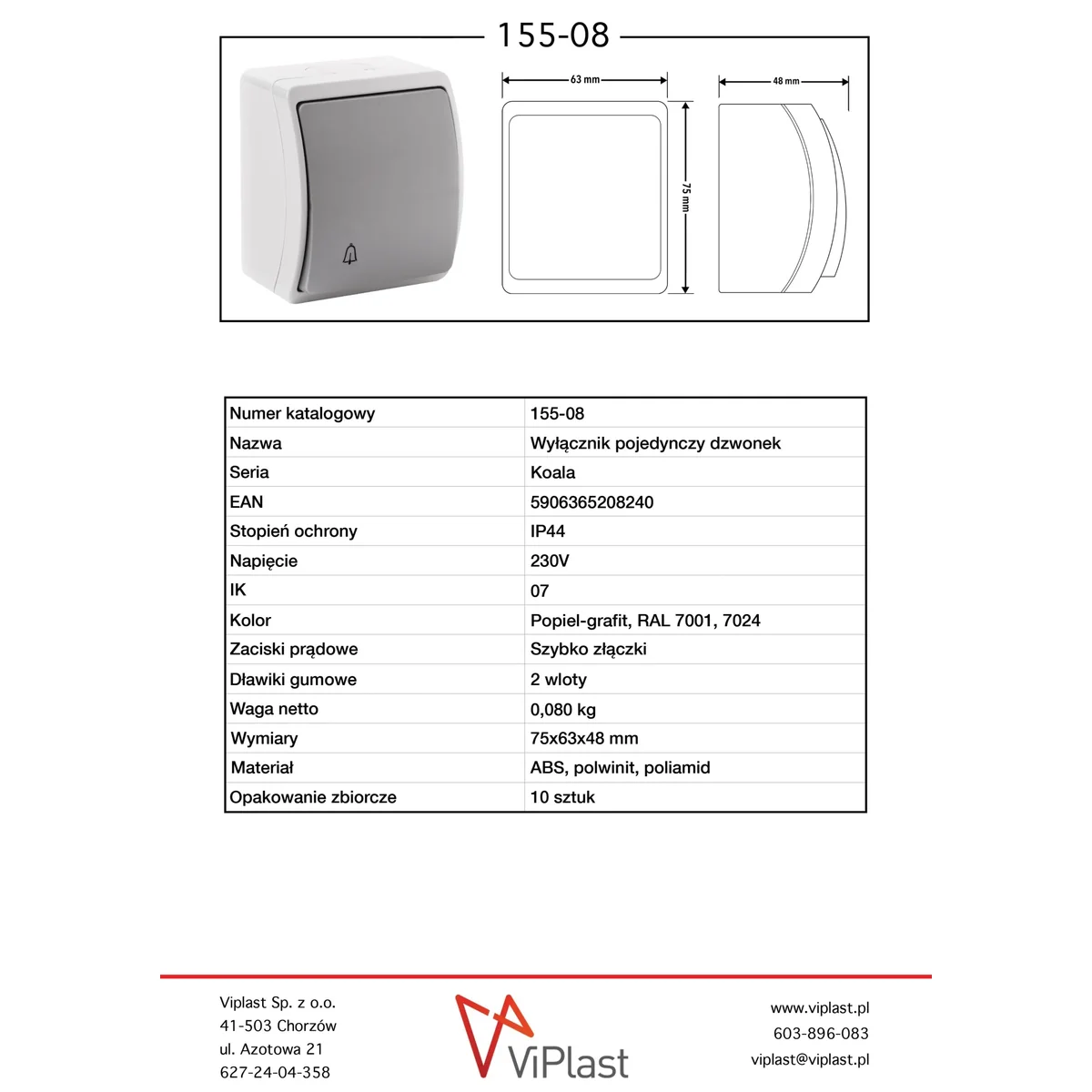

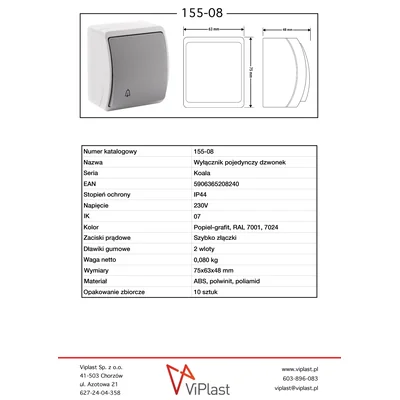

Technical data

  • Depth [mm]
    48
  • Color
    Gray Graphite
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP44
  • Type
    Surface-mounted
  • Height [mm]
    75
  • Accurate color
    Ash Graphite
  • Terminal type
    Threadless
  • For the frame system
    NO
  • Number of keys
    1
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Rated current [A]
    10
  • Family
    KOALA
  • Width [mm]
    63
  • Version
    Confident
  • Degree of mechanical protection
    IK07
  • Backlight
    NO
  • Variant
    Bell
  • Exact material
    ABS Polyvinite Polyamide
