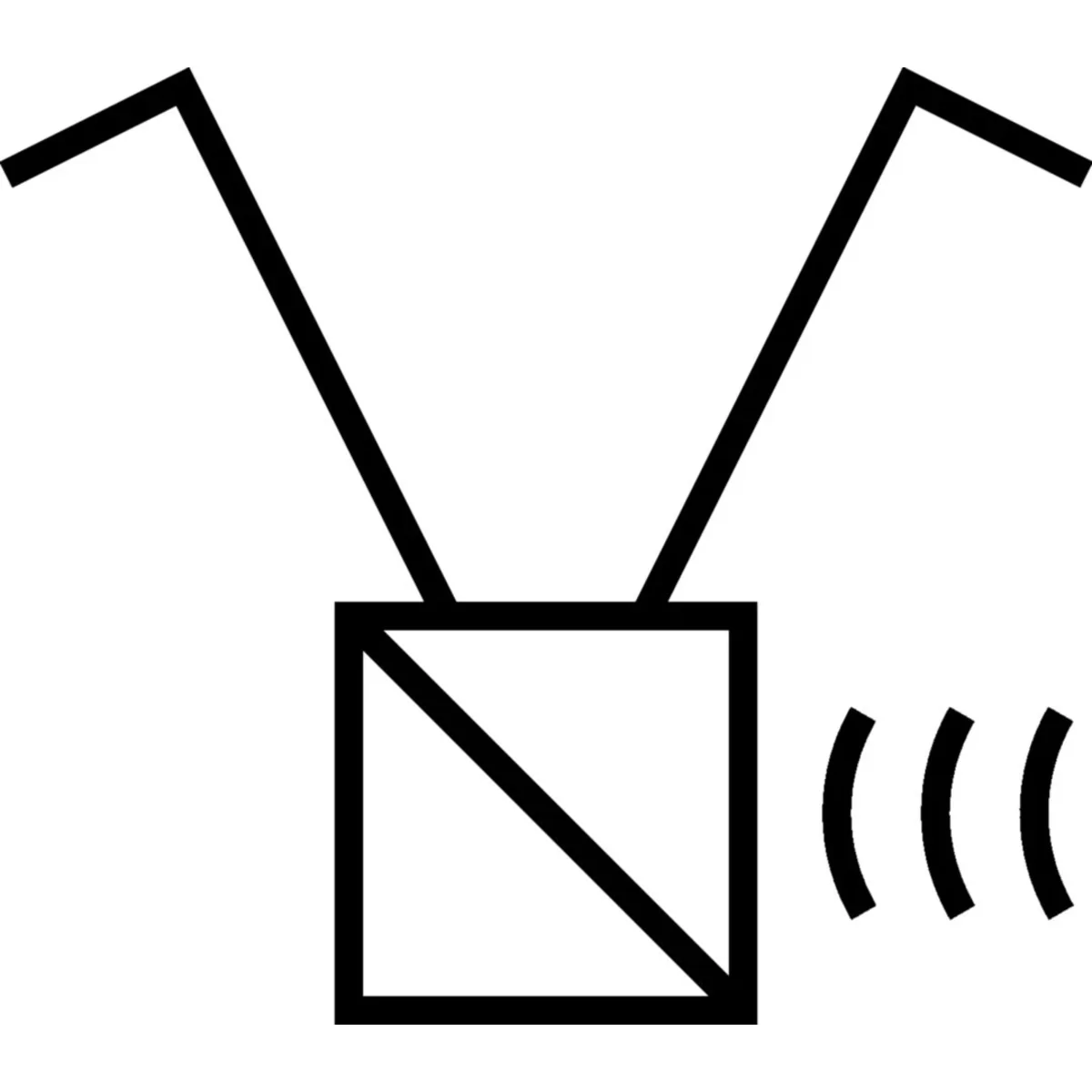

KNX RF quicklink surface-mounted switching output 2-fold IP55, TRE202
local index:
AEA012HAGE
Catalog No:
TRE202
EAN code:
3250615989338
Price:
226,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
KNX RF quicklink surface-mounted switching output 2-fold IP55,
Technical data
-
Length [mm]150
-
Contact type2 NO
-
Operating temperature range [°C]from -10 to 55
-
Receiver category2
-
Radio transmitter power [mA]<10
-
Operating voltage via DC bus [V]21 - 32
-
Connection typeWith screw-elevator clamps
-
BeaconYes
-
Conventional transformers [VA]600 per channel
-
Range of the radio transmitter (in the building) [m]thirty
-
Number of outputs2
-
SurfaceMatt
-
Width [mm]85
-
Maximum bulb power [W]for each channel 1500
-
Number of quicklinksup to 20 transmitters/receivers
-
AC supply voltage [V]230
-
Radio protocolKNX
-
Manual controlYes
-
Electronic transformers [W]600 per channel
-
Relative humidity (no condensation) [%]0 - 65 (non-condensing)
-
Radio transmitter range (in open area) [m]100
-
PKWIU26.51.20.0
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentYes
-
Bus system PowernetNo
-
Radio frequent bidirectionalYes
-
Width in number of modular spacings0
-
With LED indicationYes
-
Output power2300 W
-
Max. number of switching contacts2
-
Rated current10 A
-
Different phases connectableNo
-
Bus module detachableNo
-
Modular expandabilityNo
-
Bus system KNX-RF (Radio Frequent)Yes
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodSurface mounted
-
Local operation/hand operationYes
-
Max. switching power2300 W
-
Suitable for C-loadNo
-
Max. switching current10 A
-
Rated operating voltage195 ... 253 V
-
With bus connectionNo
-
Min. depth of built-in installation box40 mm
-
Degree of protection (IP)IP55
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 16 pcs. | 384 pcs. |
| Weight (kg) | 0,250 | 0,360 | 6,175 | 171,200 |
| Width (m) | 0,085 | 0,145 | 0,310 | 0,800 |
| Length (m) | 0,150 | 0,045 | 0,230 | 1,050 |
| Depth (m) | 0,035 | 0,220 | 0,360 | 1,200 |
