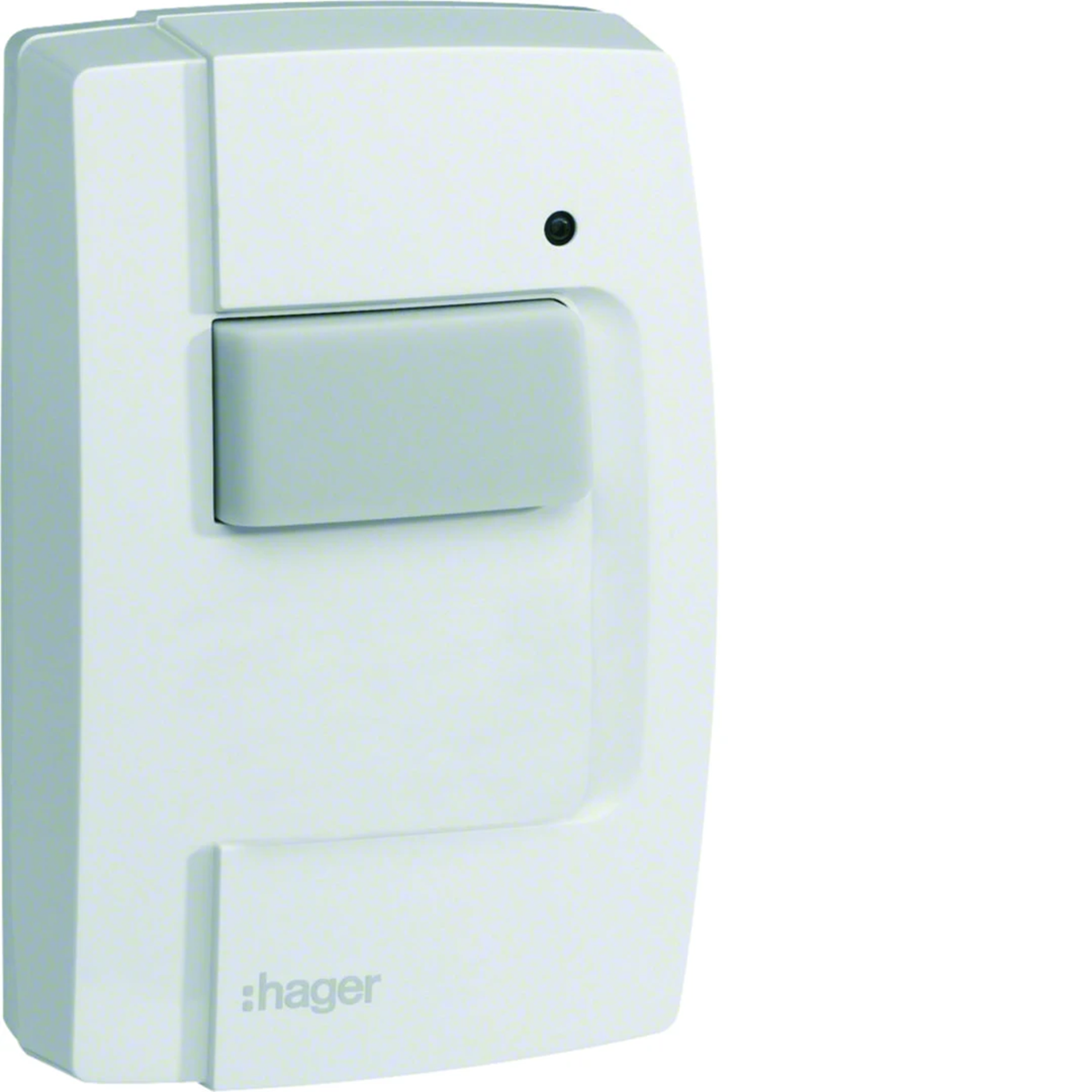

KNX RF quicklink surface-mounted radio transmitter 1-way IP55, TRE301

local index:
AEA013HAGE
Catalog No:
TRE301
EAN code:
3250615989277
Manufacturer: HAGER
Battery: 2x 3V CR2430
Color: White
Installation: Surface-mounted
Price:
116,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

KNX RF quicklink surface-mounted radio transmitter 1-way IP55,

Technical data

  • Battery
    2x 3V CR2430
  • Installation
    Surface-mounted
  • Width [mm]
    49
  • Operating temperature range [°C]
    from -10 to 55
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of radio channels
    2
  • Radio protocol
    KNX
  • Range of the radio transmitter (in the building) [m]
    thirty
  • Battery life [years]
    ≈ 5
  • Color
    White
  • Level of security
    IP55
  • Height [mm]
    76
  • Accurate color
    Snow white
  • Receiver category
    2
  • Number of quicklinks
    up to 20 transmitters/receivers
  • storage temperature [°C]
    from -20 to 70
  • Radio transmitter range (in open area) [m]
    100
  • PKWIU
    26.51.20.0

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    Yes
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • With anti-theft/dismantling protection
    No
  • Number of actuation points
    1
  • With LED indication
    Yes
  • With display
    No
  • Material quality
    Other
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • With room temperature controller
    No
  • Degree of protection (IP)
    IP55
  • Bus system KNX-RF (Radio Frequent)
    Yes
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Surface mounted
  • With bus connection
    No
  • Number of buttons
    1
  • With label area
    No
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • With IR sensor
    No
  • Min. depth of built-in installation box
    25 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,104 0,110 6,980 190,520
Width (m) 0,026 0,080 0,315 0,800
Length (m) 0,103 0,045 0,215 1,050
Depth (m) 0,058 0,100 0,360 1,200
