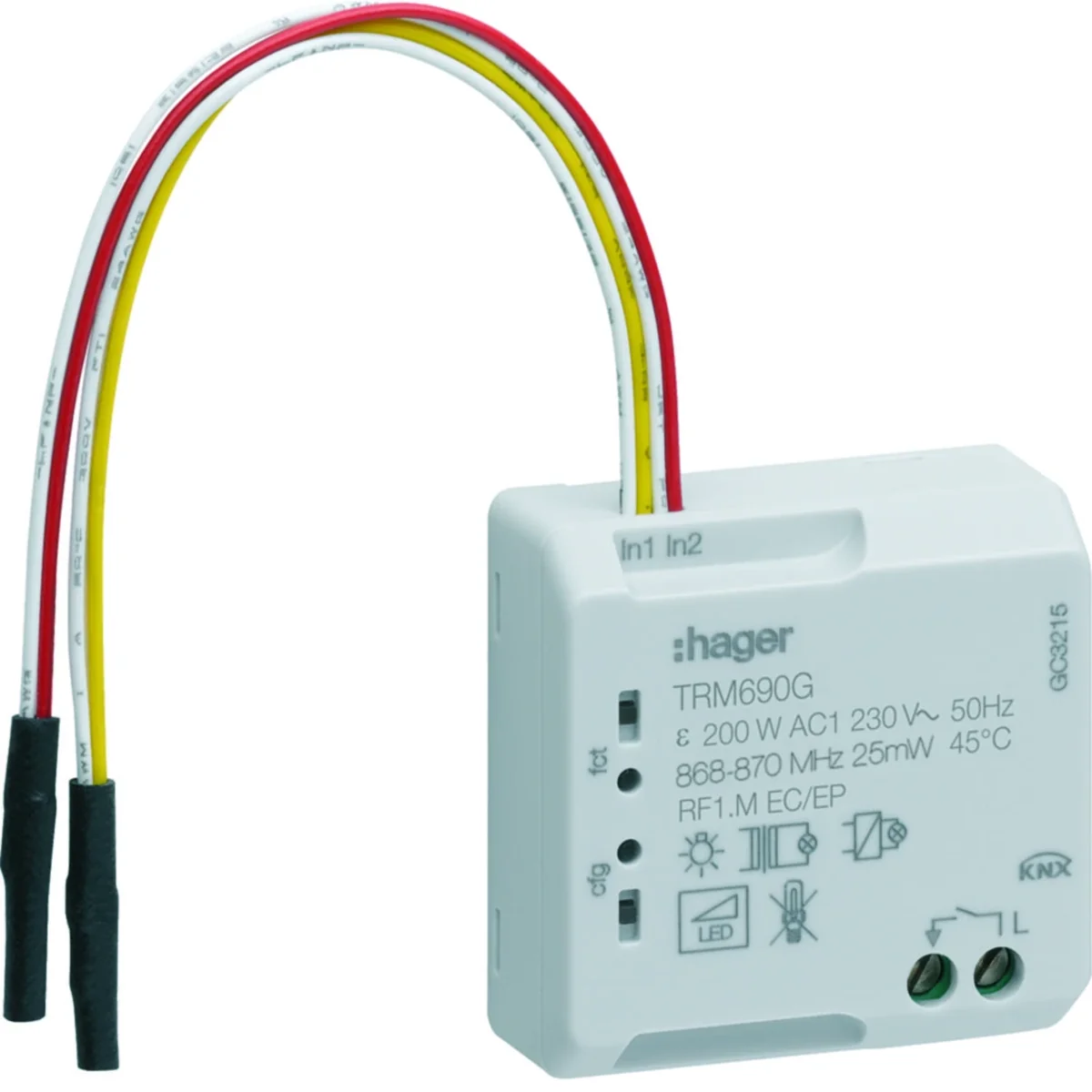

KNX RF quicklink Electronic switching output 1-fold + potential-free input 2-fold TRM690G

local index:
AEA016HAGE
Catalog No:
TRM690G
EAN code:
3250615989055
Manufacturer: HAGER
Depth [mm]: 18
Surface: Matt
power loss [W]: 0.13
Price:
131,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

KNX RF quicklink Electronic switching output 1-fold + potential-free input 2-fold

Technical data

  • Depth [mm]
    18
  • power loss [W]
    0.13
  • Connection type
    With a screw
  • Operating temperature range [°C]
    from -15 to 45
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of radio channels
    2
  • Radio transmitter power [mA]
    <10
  • Radio protocol
    KNX
  • Manual control
    Yes
  • storage temperature [°C]
    from -25 to 70
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Radio transmitter range (in open area) [m]
    100
  • Wire cross-section (cord) [mm²]
    0.5 - 1.5
  • PKWIU
    26.51.20.0
  • Surface
    Matt
  • Width [mm]
    40
  • Height [mm]
    40
  • Maximum bulb power [W]
    200
  • Receiver category
    2
  • Number of quicklinks
    up to 20 transmitters/receivers
  • AC supply voltage [V]
    230
  • Connection type
    With screw-elevator clamps
  • Beacon
    Yes
  • Conventional transformers [VA]
    10 - 175
  • Range of the radio transmitter (in the building) [m]
    thirty
  • Number of outputs
    1
  • Conductor cross-section (wire) [mm²]
    0.5 - 2.5

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • Width in number of modular spacings
    0
  • With LED indication
    Yes
  • Output power
    200 W
  • Max. number of switching contacts
    1
  • Rated current
    0.85 A
  • Different phases connectable
    No
  • Bus module detachable
    No
  • Modular expandability
    No
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • Local operation/hand operation
    Yes
  • Max. switching power
    200 W
  • Suitable for C-load
    No
  • Max. switching current
    1 A
  • Rated operating voltage
    230 ... 230 V
  • With bus connection
    Yes
  • Min. depth of built-in installation box
    40 mm
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,024 0,080 5,165 146,960
Width (m) 0,018 0,085 0,310 0,800
Length (m) 0,040 0,040 0,215 1,010
Depth (m) 0,040 0,090 0,360 1,200
