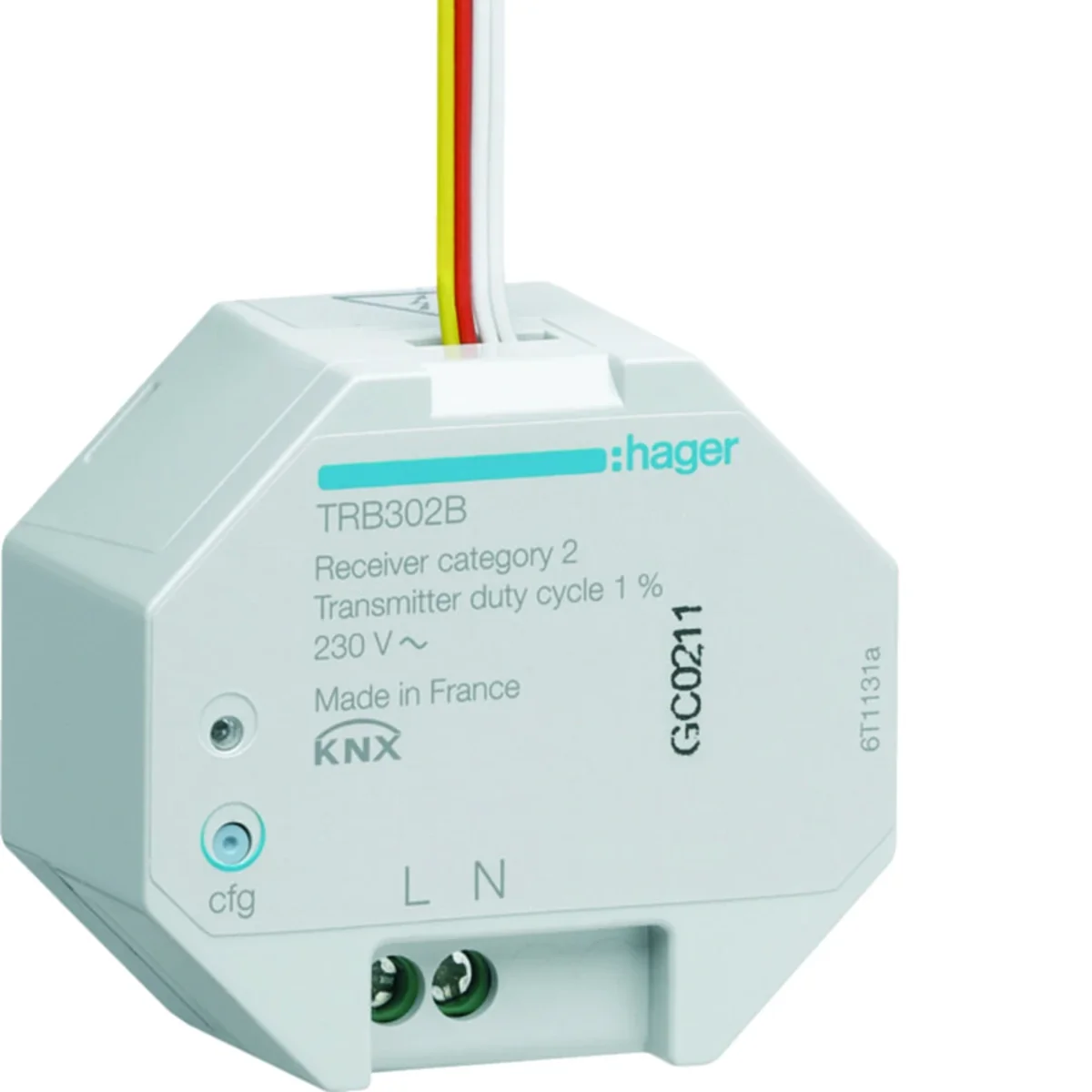

KNX RF quicklink 2-channel pushbutton input 230 V, TRB302B
local index:
AEA007HAGE
Catalog No:
TRB302B
EAN code:
3250615989284
Price:
148,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
KNX RF quicklink 2-channel pushbutton input 230 V,
Technical data
-
Rated frequency [Hz]60
-
ColorGray
-
Level of securityIP20
-
Width [mm]48
-
Operating temperature range [°C]from -5 to 45
-
Receiver category2
-
Number of quicklinksup to 20 transmitters/receivers
-
AC supply voltage [V]230
-
Radio protocolKNX
-
BeaconYes
-
Radio transmitter range (in open area) [m]100
-
Conductor cross-section (wire) [mm²]0.5 - 2.5
-
Depth [mm]thirty
-
InstallationFlush-mounted
-
power loss [W]0.9
-
Height [mm]53
-
Radio transmitter/receiver frequency [MHz]868.3
-
Number of radio channels2
-
Radio transmitter power [mA]<10
-
AC operating voltage [V]230
-
Connection typeWith screw-elevator clamps
-
Range of the radio transmitter (in the building) [m]thirty
-
Wire cross-section (cord) [mm²]0.5 - 2.5
-
PKWIU26.51.20.0
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentYes
-
Bus system PowernetNo
-
Radio frequent bidirectionalNo
-
Width in number of modular spacings0
-
Bus module detachableNo
-
With LED indicationYes
-
Input voltage5 ... 5 V
-
External signal voltage necessaryNo
-
Min. depth of built-in installation box40 mm
-
Bus system KNX-RF (Radio Frequent)Yes
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodFlush-mounted
-
With bus connectionNo
-
LED controllingNo
-
Number of inputs2
-
Type of voltage (input voltage)DC
-
Degree of protection (IP)IP20
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,055 | 0,060 | 3,970 | 118,280 |
| Width (m) | 0,020 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,045 | 0,040 | 0,215 | 1,050 |
| Depth (m) | 0,045 | 0,100 | 0,365 | 1,200 |
