KIER Universal dimmer for incandescent, incandescent and LED satin light loads ŁP-8WL2/45
local index:
MMC051OSPE
Catalog No:
ŁP-8WL2/45
EAN code:
5907577478667
Manufacturer:
OSPEL
Additional features: With the function of a stair switch
Depth [mm]: 52
Number of keys: Knob
Price:
44,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

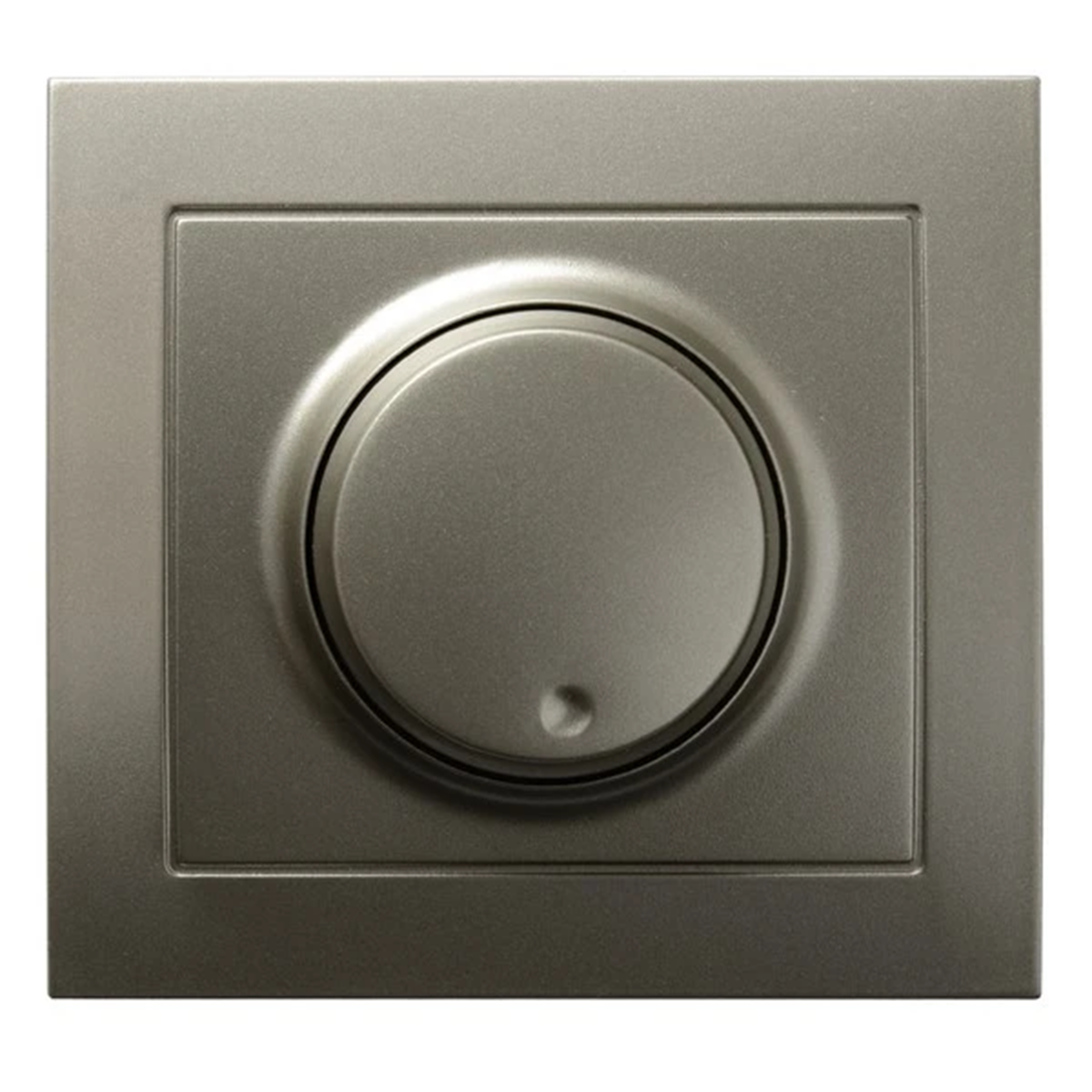

Universal dimmer from the Kier series, from Ospel. The product catalog number is ŁP-8WL2/45.
FEATURES
- Adjusted to incandescent and halogen loads and LED.
- Load power: GLS-10-250W, CFL 5-75W, LED 0-100W.
- Time to bed function. < li>Working in a stair system.
Technical data
-
Additional featuresWith the function of a stair switch
-
Number of keysKnob
-
ShapeRectangular
-
Fixingclaws screws
-
Typedimmers
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]82
-
Accurate colorlight satin
-
Mounting depth [mm]31
-
Terminal typeThreaded
-
PKWIU27.33.11.0
-
Depth [mm]52
-
ColorSilver
-
MaterialPlastic
-
Rated voltage [V]230
-
FamilyDIR
-
Width [mm]88
-
VersionFor incandescent lighting For halogen lighting For LED
-
Surface protectionvarnishing
-
BacklightNO
-
load power [W]GLS: 10-250 CFL: 5-75 LED: 0-100
-
For the frame systemNO
Other technical data
-
Assembly arrangementBasic element with complete housing
-
Number of modules (module system)1
-
Serial dimmerYes
-
Substation inputNo
-
Applicable with buttonYes
-
Applicable with presence indicatorNo
-
Applicable with transmission buttonNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)1035
-
Suitable for degree of protection (IP)IP20
-
Nominal voltage230 ... 230 V
-
Control voltage230 ... 230 V
-
Device width88 mm
-
Device depth52 mm
-
Method of operationTurn/push button
-
App control via BluetoothNo
-
Type of loadUniversal and LED Retrofit
-
Light value memoryYes
-
Applicable with movement sensorNo
-
Applicable with time switch/timerNo
-
Applicable with infrared buttonNo
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
ColourOther
-
TransparentNo
-
Impact strengthIK03
-
Frequency50 ... 50 Hz
-
Core cross section1 ... 1.5 mm²
-
Device height82 mm
-
Min. depth of built-in installation box60 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 5 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,090 |
