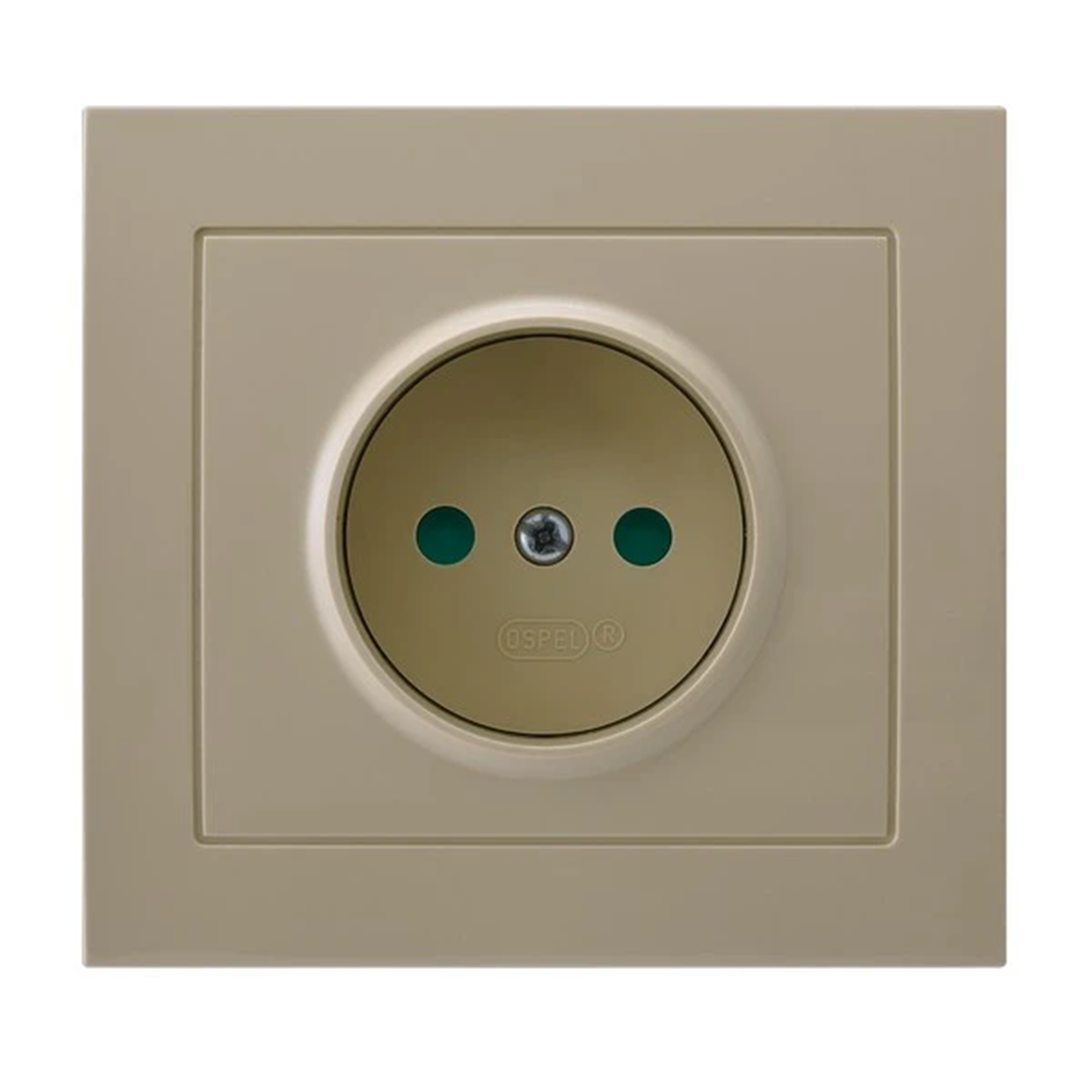

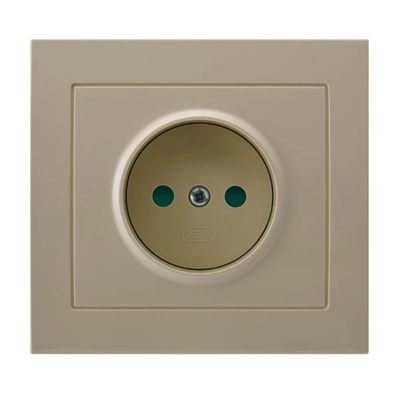

KIER Single socket with track shutters beige GP-1WP/01

local index:
MEE011OSPE
Catalog No:
GP-1WP/01
EAN code:
5907577470722
Manufacturer: OSPEL
Depth [mm]: 39
Number of sockets: 1
Color: Beige
Price:
3,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Single electrical socket, with shutters for current paths.



SERIES DESCRIPTION

Direction< series /strong> stands for modern compact products. Thanks to this, composing electrical installation solutions is very simple, and the available assortment will allow you to create interiors equipped with all amenities.

Technical data

  • Depth [mm]
    39
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    DIR
  • Width [mm]
    88
  • Ground
    Lack
  • Surface protection
    Natural
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    NO
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    82
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    Multi-standard socket
  • Okrągły styk ochronny
    no
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    no
  • Number of modules (module system)
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    yes
  • Colour
    Beige
  • Transparent
    yes
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • With on/off switch
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    82 mm
  • Min. depth of built-in installation box
    60 mm
  • Protective contact
    no
  • Number of active contacts (round)
    0
  • With signal lamp
    no
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • With hinged lid
    no
  • Label space/information surface
    no
  • RAL-number (similar)
    1001
  • Lockable
    no
  • Insulated mounting
    no
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    no
  • With loop through function
    no
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    88 mm
  • Device depth
    39 mm
