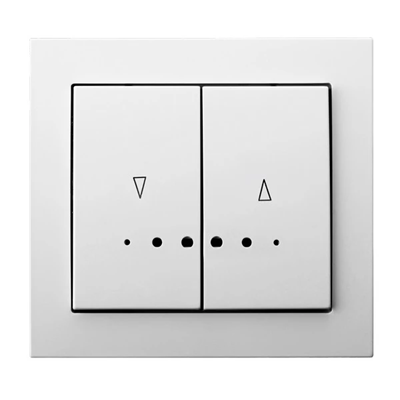

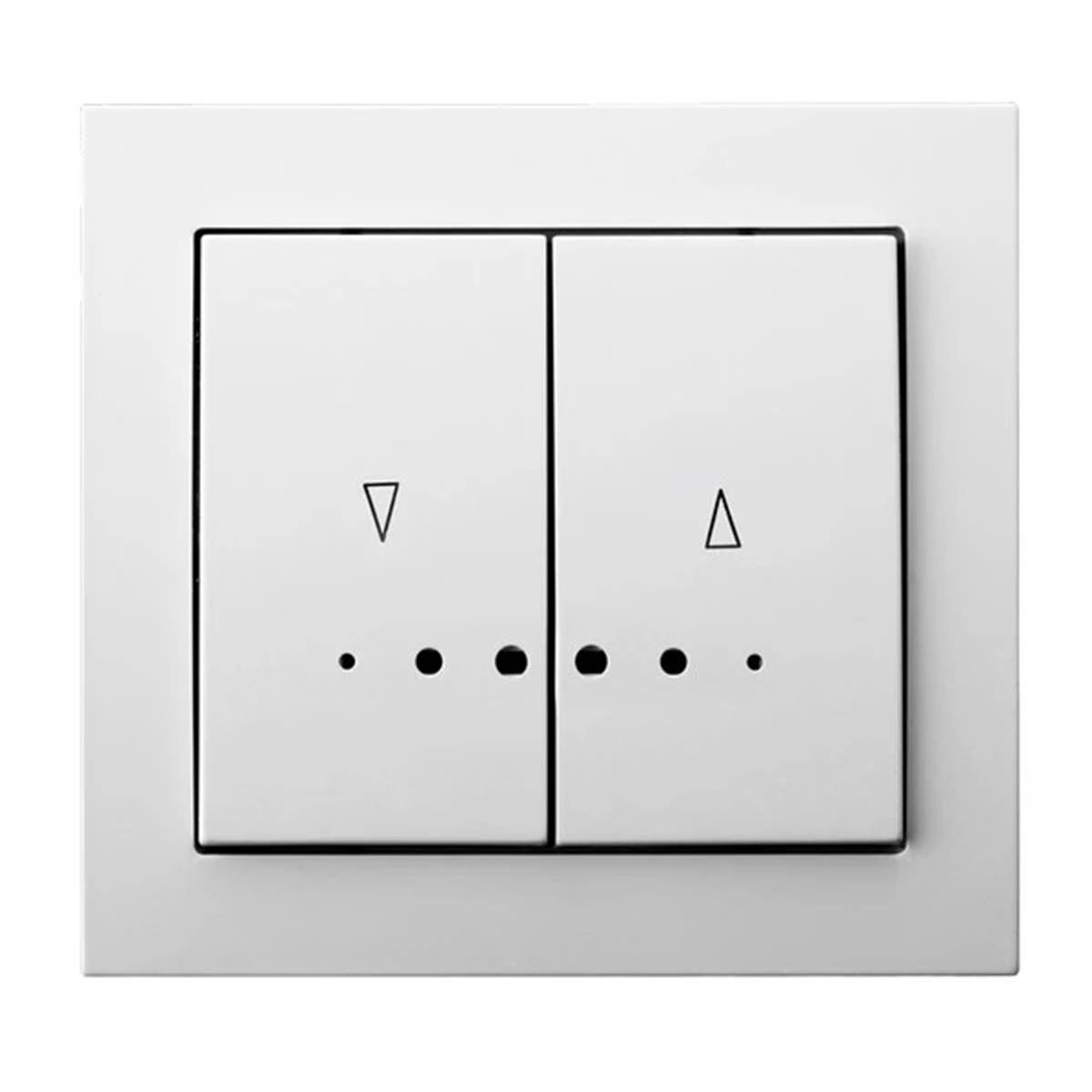

KIER Shutter switch with white backlight ŁP-7WS/00
local index:
MMO093OSPE
Catalog No:
ŁP-7WS/00
EAN code:
5907577462833
Price:
6,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
A shutter switch with backlight, from the Kier series, from Ospel. The product catalog number is ŁP-7WS/00.
Technical data
-
Depth [mm]39
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyDIR
-
Width [mm]88
-
VersionSingle
-
Surface protectionNatural
-
Mounting depth [mm]26
-
VariantTwo-position normally open
-
Backlight typeLTS lamp
-
PKWIU27.33.11.0
-
Number of keys2
-
ShapeRectangular
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeShutter
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]82
-
BacklightYes
-
Terminal typeThreaded
-
For the frame systemNO
-
Backlight colorOrange
Other technical data
-
Assembly arrangementBasic element with complete housing
-
Method of operationRocker
-
Mechanical controllableYes
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Type of fasteningMounting with claw and screw
-
RAL-number (similar)9003
-
Label space/information surfaceNo
-
Rated current10 A
-
Number of buttons2
-
Min. depth of built-in installation box40 mm
-
ModelOther
-
Blokada elektryczna i mechanicznaYes
-
Electronic controllableNo
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
ColourWhite
-
TransparentNo
-
Suitable for degree of protection (IP)IP20
-
Nominal voltage250 V
-
Number of modules (module system)0
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,090 |
