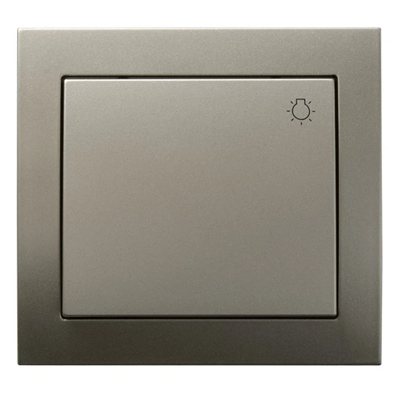

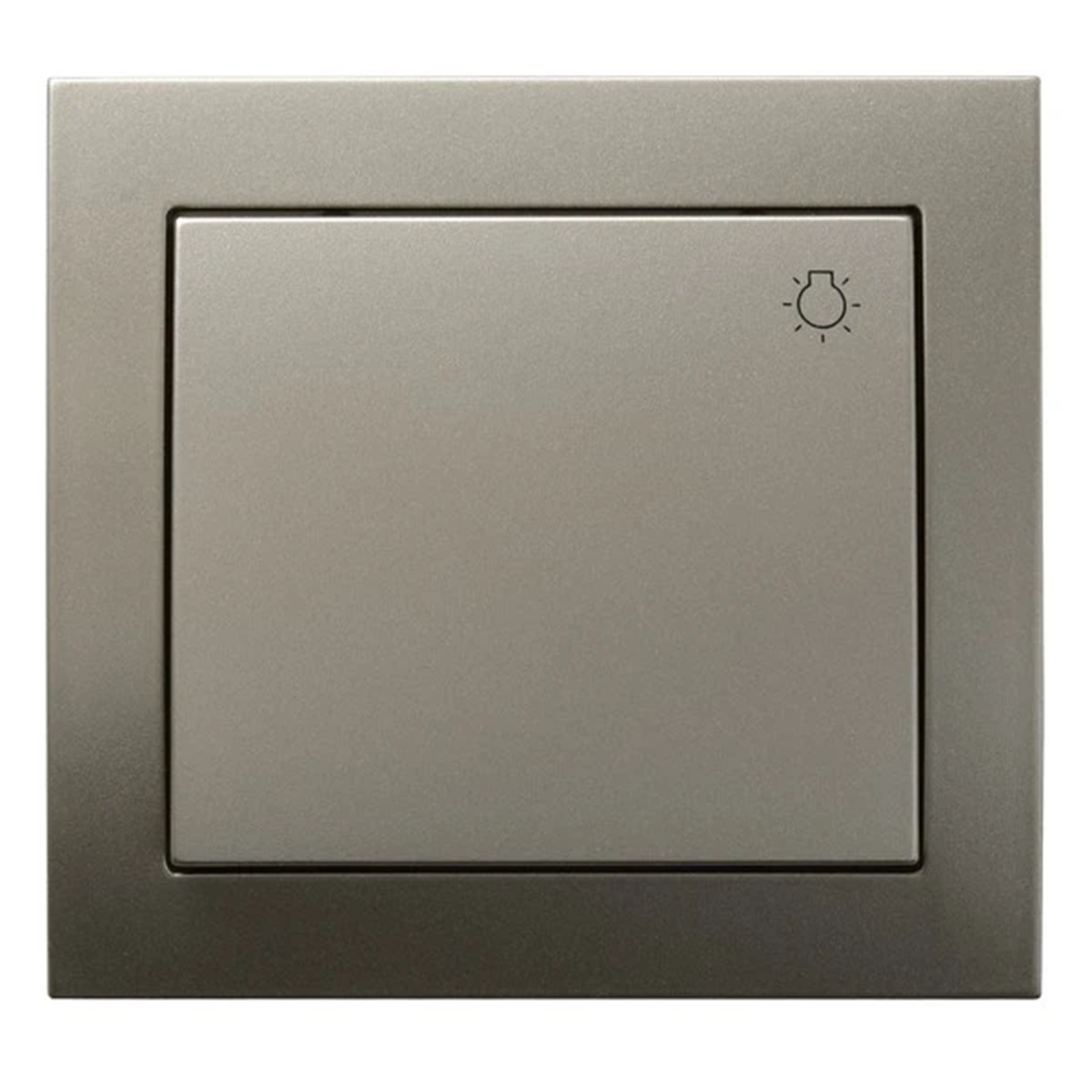

KIER Short-circuit switch "light" satin light ŁP-5W/45
local index:
MMZ095OSPE
Catalog No:
ŁP-5W/45
EAN code:
5907577473471
Price:
4,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The "Light" switch from the Kier series, from the manufacturer Ospel. The product catalog number is ŁP-5W/45. Satin light.
FEATURES
- Equipped with a frame.< /li>
- Symbol "light" on the key.
- To obtain IP44 splash-proof class, use a sealing kit for switches.
SERIES DESCRIPTION
< p>The Kier series are modern compact products. Thanks to this, composing electrical installation solutions is very simple, and the available assortment will allow you to create interiors equipped with all amenities.Technical data
-
Depth [mm]39
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyDIR
-
SymbolLight
-
TypeFlush-mounted
-
Height [mm]82
-
Accurate colorlight satin
-
Mounting depth [mm]26
-
VariantLight
-
Exact materialPlastic Metal
-
Number of keys1
-
ShapeRectangular
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeShort
-
Level of securityIP20
-
Width [mm]88
-
VersionConfident
-
Surface protectionvarnishing
-
BacklightNO
-
Terminal typeThreaded
-
For the frame systemNO
-
PKWIU27.33.11.0
Other technical data
-
Method of operationRocker/button
-
Number of modules (module system)0
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)1035
-
IlluminationNo
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width88 mm
-
Device depth39 mm
-
Assembly arrangementBasic element with complete housing
-
Push button switchYes
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
ColourOther
-
Label space/information surfaceNo
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height82 mm
-
Built-in depth26 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 5 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
