KIER RTV-SAT socket with two SAT outputs brown metallic GPA-W2S/52

local index:
MEA333OSPE
Catalog No:
GPA-W2S/52
EAN code:
5907577474416
Manufacturer: OSPEL
Depth [mm]: 34
Number of sockets: 3
Color: Brown
Price:
25,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

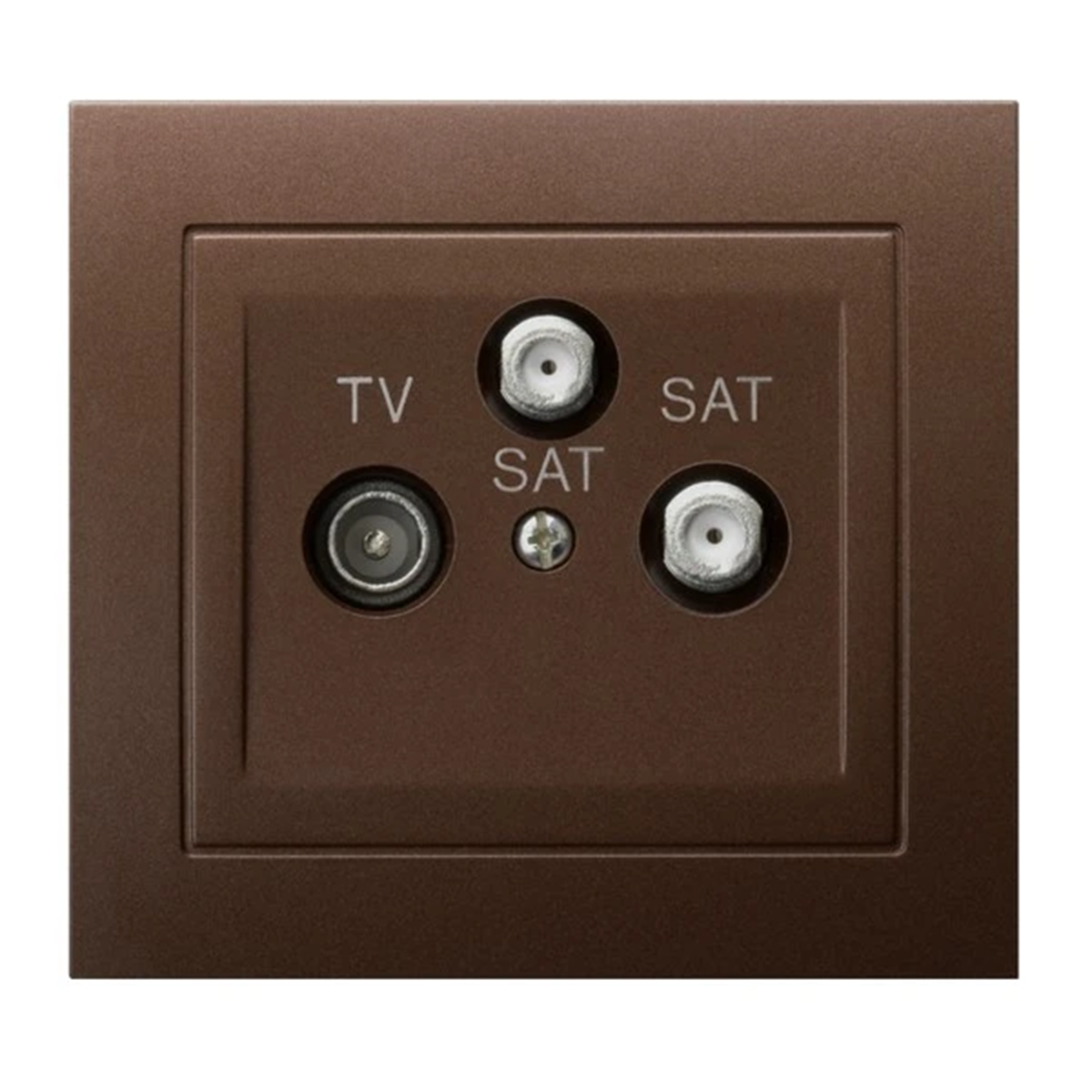

RTV antenna socket with two SAT outputs. Equipped with a frame.



SERIES DESCRIPTION

The Kier series are modern compact products. Thanks to this, composing electrical installation solutions is very simple, and the available assortment will allow you to create interiors equipped with all amenities.

Technical data

  • Depth [mm]
    34
  • Color
    Brown
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    RTV: 0.5-1.5 Sat: 10-12 SAT2: 6-8
  • Height [mm]
    82
  • Frequency Range [MHz]
    For SAT input: 5-2400
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    3
  • Shape
    Rectangular
  • Fixing
    claws screws
  • Overprint
    Yes
  • Family
    DIR
  • Width [mm]
    88
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Bronze metallic
  • Mounting depth [mm]
    24
  • Variant
    RTV sat sat2
  • For the frame system
    NO
  • PKWIU
    26.40.52.0

Other technical data

  • Model
    End socket
  • Number of modules (module system)
    1
  • Tap loss at 860 MHz
    1 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    0 dB
  • Suitable for remote power supply
    no
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    8025
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    2.5 dB
  • Suitable for cable modem
    no
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    0 ... 860 MHz
  • Colour
    Brown
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    yes
