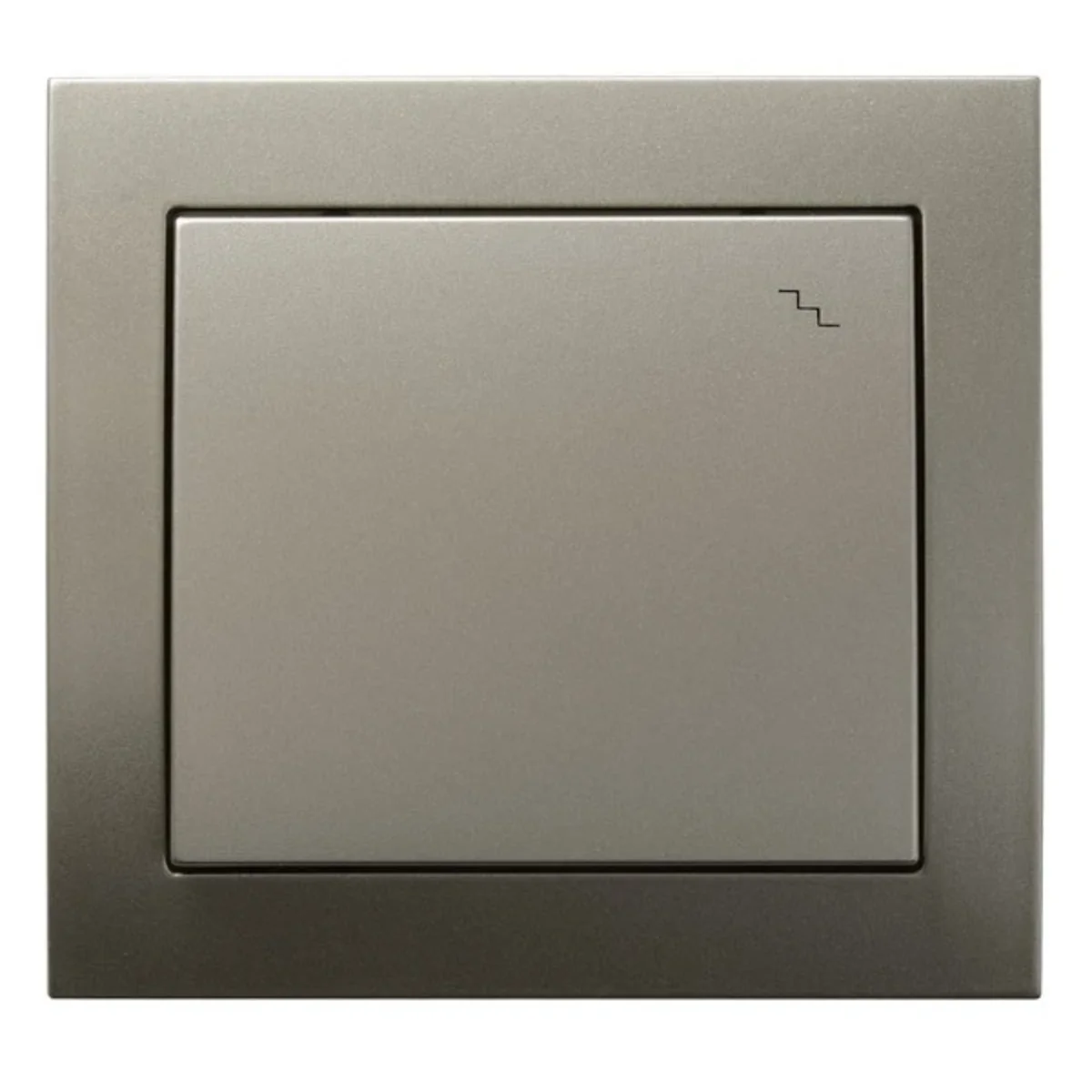

KIER Light satin stair switch ŁP-3W/45

Index local:
MMS093OSPE
Numéro de catalogue:
ŁP-3W/45
Code EAN:
5907577473433
Producteur: OSPEL
Depth [mm]: 39
Number of keys: 1
Color: Silver
Prix:
23,91 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 4 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Stair switch from the Kier series, from Ospel. The product catalog number is ŁP-3W/45.



FEATURES

  • Single.
  • Complete; with frame.
  • Thread clamps.
  • Color satin light.
  • < li>Rated current 10AX.
  • Rated voltage 230V.
  • flush mounting.< /li>
  • Ingress protection IP20.
  • Dimensions: 82 x 88 mm (height x width).

  ;

SERIES DESCRIPTION

The Kier series are modern compact products. Thanks to this, composing electrical installation solutions is very simple, and the available assortment will allow you to create interiors equipped with all amenities.

Données techniques

  • Depth [mm]
    39
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    DIR
  • Symbol
    Stairs
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Exact material
    Plastic Metal
  • Number of keys
    1
  • Shape
    Rectangular
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Width [mm]
    88
  • Height [mm]
    82
  • Accurate color
    light satin
  • Mounting depth [mm]
    26
  • For the frame system
    NO
  • PKWIU
    27.33.11.0

Autres données techniques

  • Wiring system
    Two-way switch
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Other
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    82 mm
  • Built-in depth
    26 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    0
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1035
  • Illumination
    No
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    16 AX
  • Connection type
    Push-in clamp
  • Device width
    88 mm
  • Device depth
    39 mm
  • Min. depth of built-in installation box
    60 mm

Détails du fabricant

  • Producteur
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Emballage en vrac

Une sorte de paquet Pudełko
Quantité 5 pcs.
Largeur (m) 0,880
Longueur (m) 0,820
Profondeur (m) 0,260
