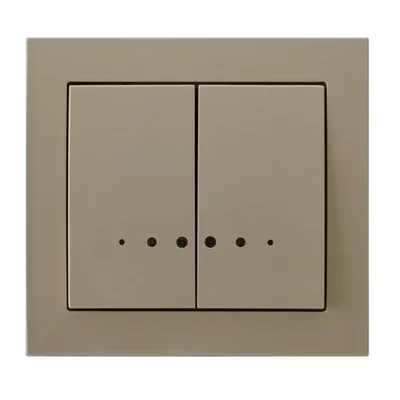

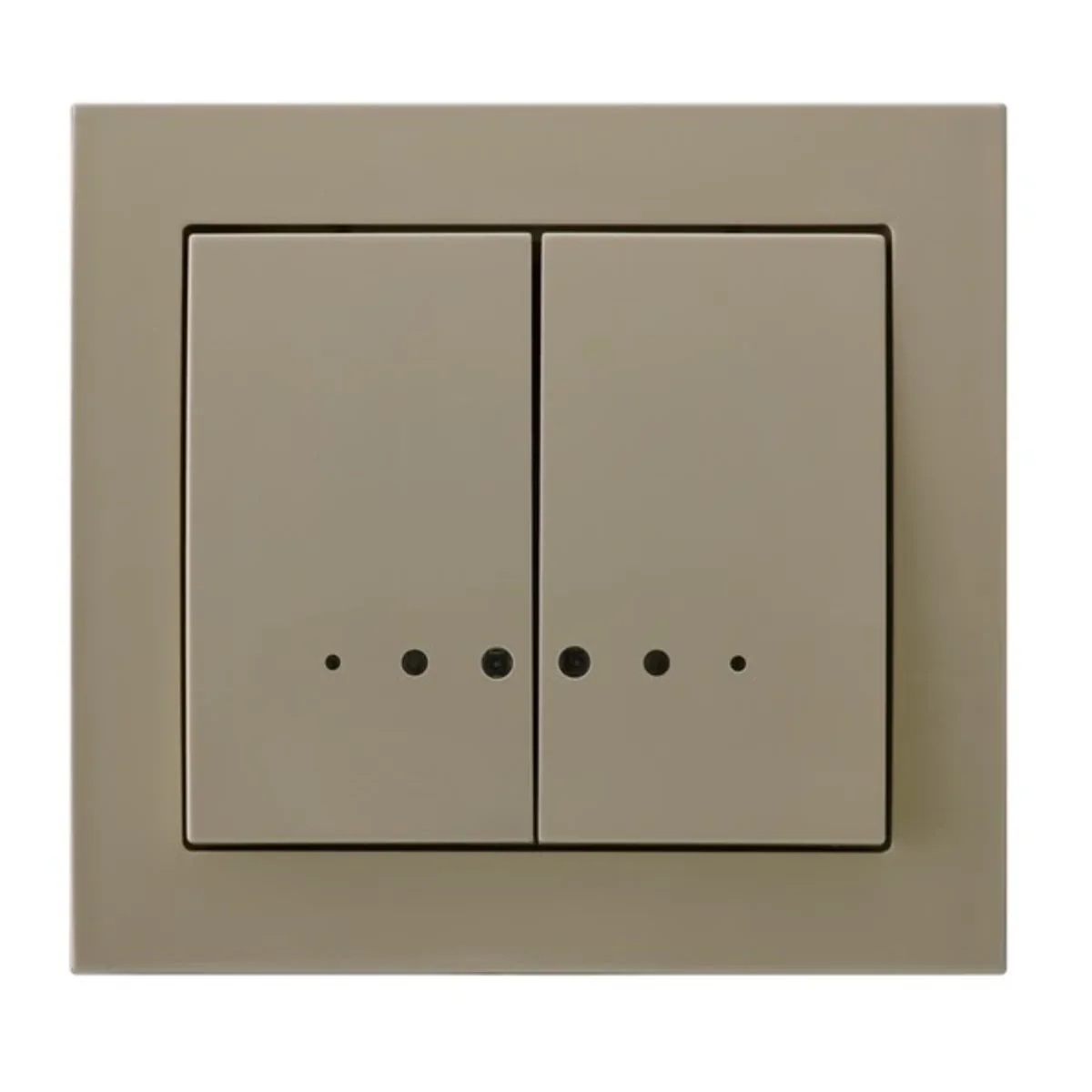

KIER Double switch, candlestick with backlight ŁP-2WS/01
local index:
MMT059OSPE
Catalog No:
ŁP-2WS/01
EAN code:
5907577470531
Price:
5,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Candlestick connector from the Kier series, from Ospel. The product's catalog number is ŁP-2WS/01.
FEATURES
- Two-group< /strong>.
- With orange backlight (LTS lamp).
- Complete; with frame.
- Thread clamps.
- Color beige.
- Rated current 10AX.
- Rated voltage 230V.
- Mounting flush.
- Rating IP20.
- Dimensions: 82 x 88 mm (height x width).
SERIES DESCRIPTION
The Kier series are modern compact products. Thanks to this, composing electrical installation solutions is very simple, and the available assortment will allow you to create interiors equipped with all amenities.
Technical data
-
Depth [mm]39
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyDIR
-
Width [mm]88
-
Height [mm]82
-
BacklightYes
-
Terminal typeThreaded
-
Exact materialPlastic Metal
-
Backlight colorOrange
-
Number of keys2
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeCandlestick
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionNatural
-
Mounting depth [mm]26
-
For the frame systemNO
-
Backlight typeLTS lamp
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemOff switch 2x1-pole
-
Assembly arrangementBasic element with complete housing
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourBeige
-
Label space/information surfaceNo
-
Function lightingOrientation
-
Suitable for degree of protection (IP)IP20
-
Rated current16 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height82 mm
-
Built-in depth26 mm
-
Method of operationRocker/button
-
Number of modules (module system)0
-
Number of rockers2
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)1001
-
IlluminationYes
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps16 AX
-
Connection typePush-in clamp
-
Device width88 mm
-
Device depth39 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,090 |
