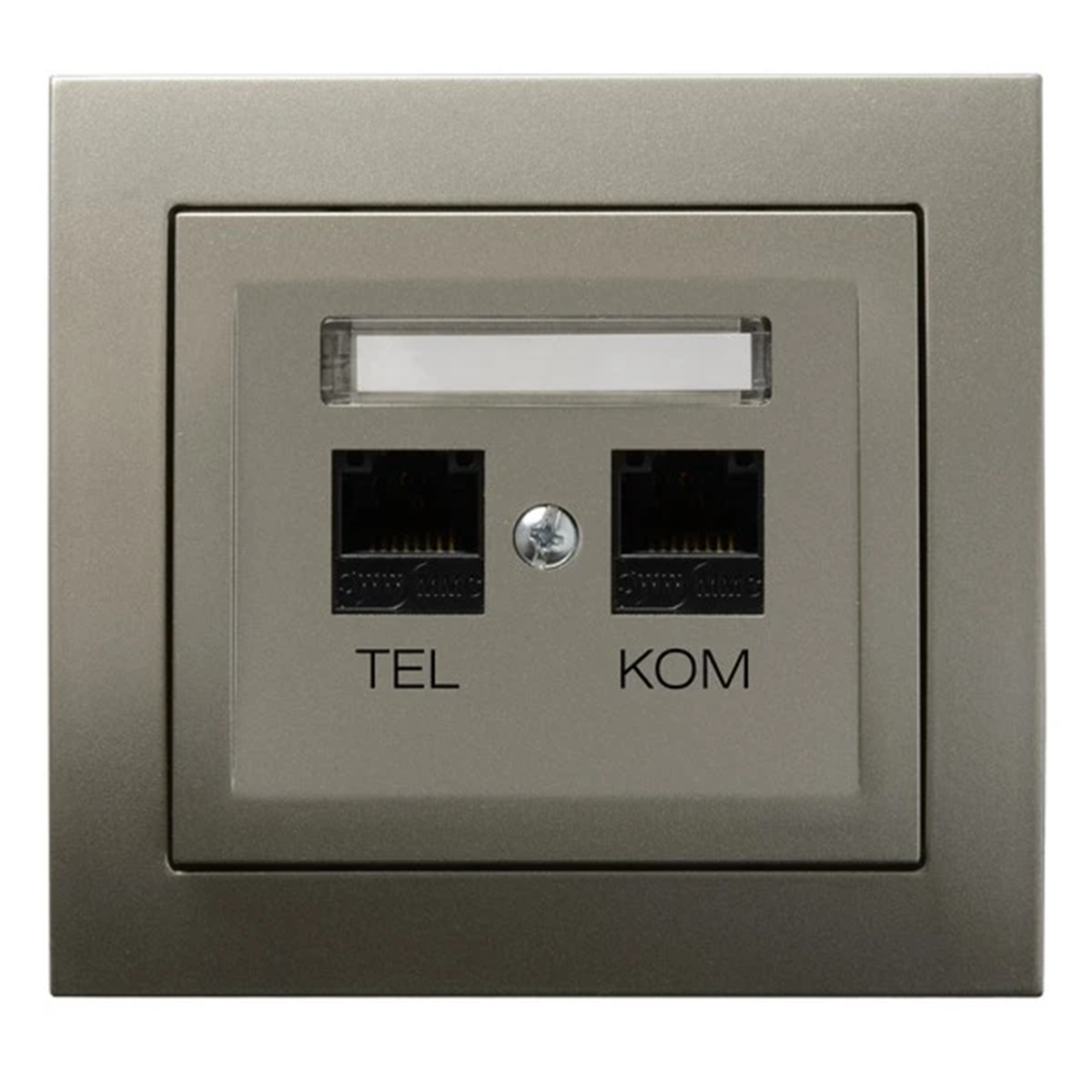

KIER Computer and telephone socket RJ 45 cat. 5e (8-pin) + RJ 11 (6-pin) satin light GPKT-W/K/45

local index:
MEI143OSPE
Catalog No:
GPKT-W/K/45
EAN code:
5907577473945
Manufacturer: OSPEL
Depth [mm]: 31
Category: 5e
Color: Silver
Price:
20,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Computer and telephone socket RJ45 category 5e (8-pin) + RJ11 (6-pin). It is used to connect a telephone cable and a twisted pair signal cable, category 5e.



SERIES DESCRIPTION

The Kier series is modern compact products. Thanks to this, composing electrical installation solutions is very simple, and the available assortment will allow you to create interiors equipped with all amenities.

Technical data

  • Depth [mm]
    31
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    82
  • Accurate color
    light satin
  • Terminal type
    Threadless
  • For the frame system
    NO
  • Dust cover
    NO
  • Exact material
    Plastic Metal
  • Category
    5e
  • Shape
    Rectangular
  • Fixing
    claws screws
  • Descriptive field
    Yes
  • Family
    DIR
  • Width [mm]
    88
  • Version
    UTP
  • Surface protection
    varnishing
  • Mounting depth [mm]
    21
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • Extra socket
    RJ11
  • PKWIU
    26.30.30.0

Other technical data

  • Surface mounting
    No
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with complete housing
  • With buses/couplings
    Yes
  • Category
    5E
  • RAL-number
    1035
  • Shielded housing
    No
  • With label space
    Yes
  • Separate strain relief
    No
  • Outlet direction
    Straight
  • Degree of protection (IP)
    IP20
  • Colour coding
    Yes
  • Device height
    82 mm
  • Duct installation
    No
  • Type of fastening
    Engage (snap)
  • Type of connector
    Other
  • Suitable for number of connectors
    2
  • Colour
    Other
  • Shielded buses
    No
  • Separate earthing connection
    No
  • Compatible with third-party covers
    No
  • Mounting method shielding connection
    None
  • With dust cover
    No
  • Mechanical coding
    No
  • Device width
    88 mm
  • Device depth
    31 mm

Bulk packaging

A kind of package Pudełko
Quantity 5 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
