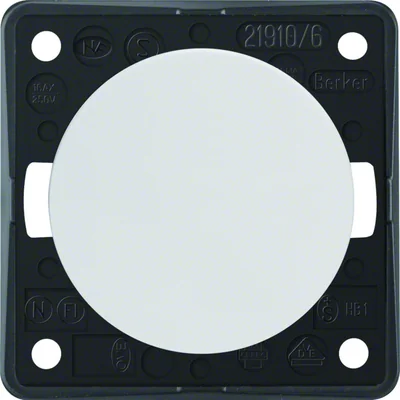

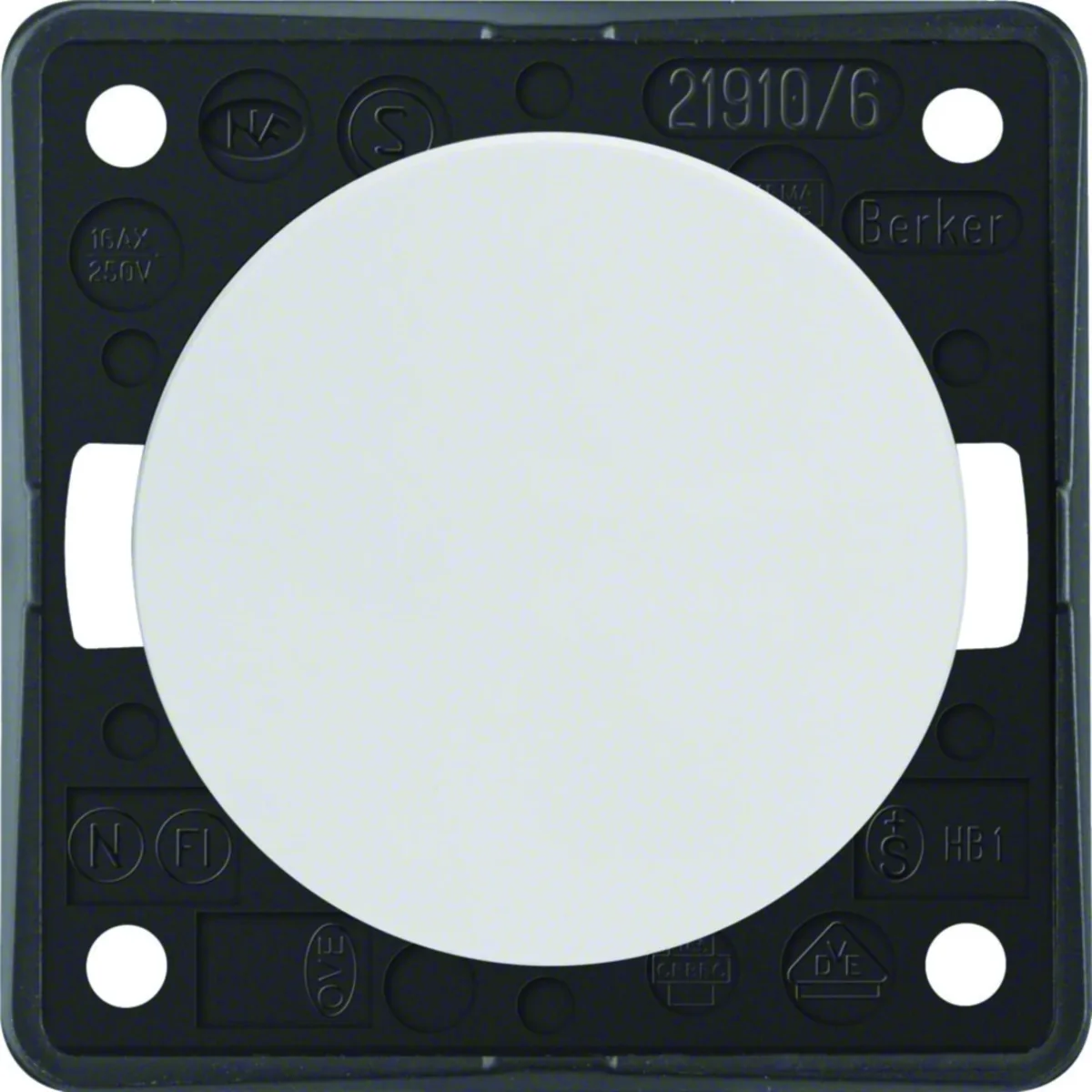

Key switch, universal, snow-white, glossy, Integro Flow/Pure 936562509
local index:
MMS009BERK
Catalog No:
936562509
EAN code:
4011334240112
Price:
10,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Universal stair switch from the Integro Flow/Pure series, from the manufacturer Berker. Product part number is 936562509.
- For screw connection.
- 1-pole/variable.
Technical data
-
Depth [mm]25
-
ColorWhite
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeStairs Single
-
Level of securityIP44
-
TypeRecessed Surface-mounted
-
Surface finishmatte
-
Terminal typeThreaded
-
Exact materialThermoplastic
-
Number of keys1
-
ShapeRound
-
InstallationRecessed Surface-mounted
-
Rated current [A]16
-
FamilyINTEGRO FLOW INTEGRA PURE
-
Width [mm]55.5
-
Height [mm]55.5
-
BacklightNO
-
For the frame systemYes
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemTwo-way switch
-
Assembly arrangementBasic element with central cover plate
-
Number of rockers1
-
Type of fasteningScrew mounting
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9010
-
IlluminationNo
-
Type of lightingOther
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typeScrewed terminal
-
Device width55.5 mm
-
Device depth25 mm
-
Min. depth of built-in installation box13 mm
-
Method of operationRocker/button
-
Number of modules (module system)0
-
Mounting methodBuilt-in installation
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
Label space/information surfaceYes
-
Function lightingOther
-
Suitable for degree of protection (IP)IP44
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height55.5 mm
-
Built-in depth10 mm
Bulk packaging
| A kind of package | Karton | Pakiet | |
| Quantity | 1 pcs. | 10 pcs. | 100 pcs. |
| Weight (kg) | 0,030 | 0,365 | 4,055 |
| Width (m) | 0,056 | 0,140 | 0,320 |
| Length (m) | 0,024 | 0,065 | 0,215 |
| Depth (m) | 0,056 | 0,205 | 0,365 |
