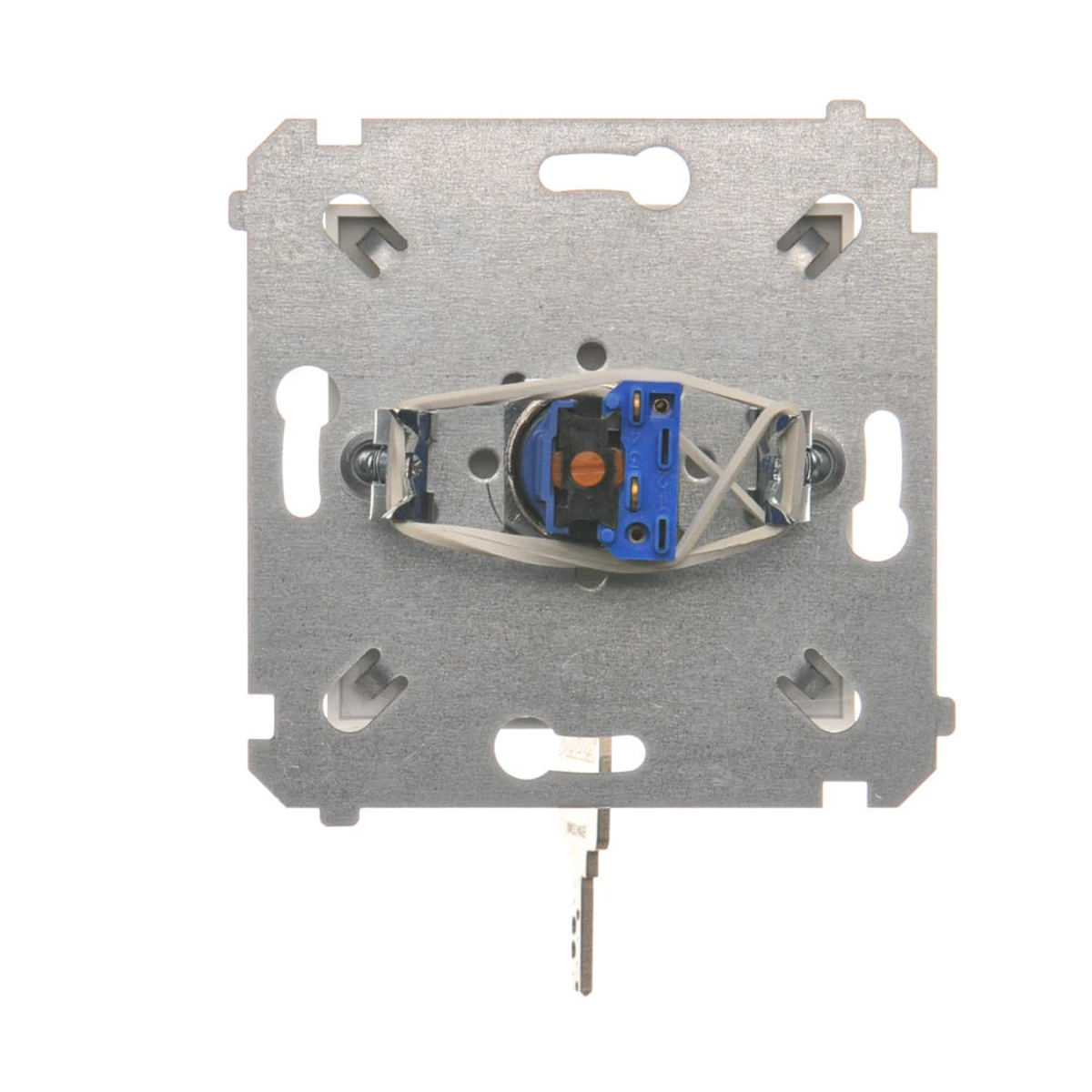

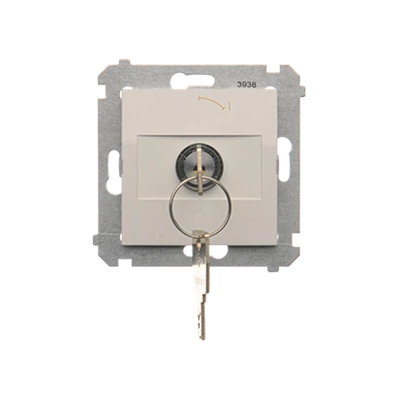

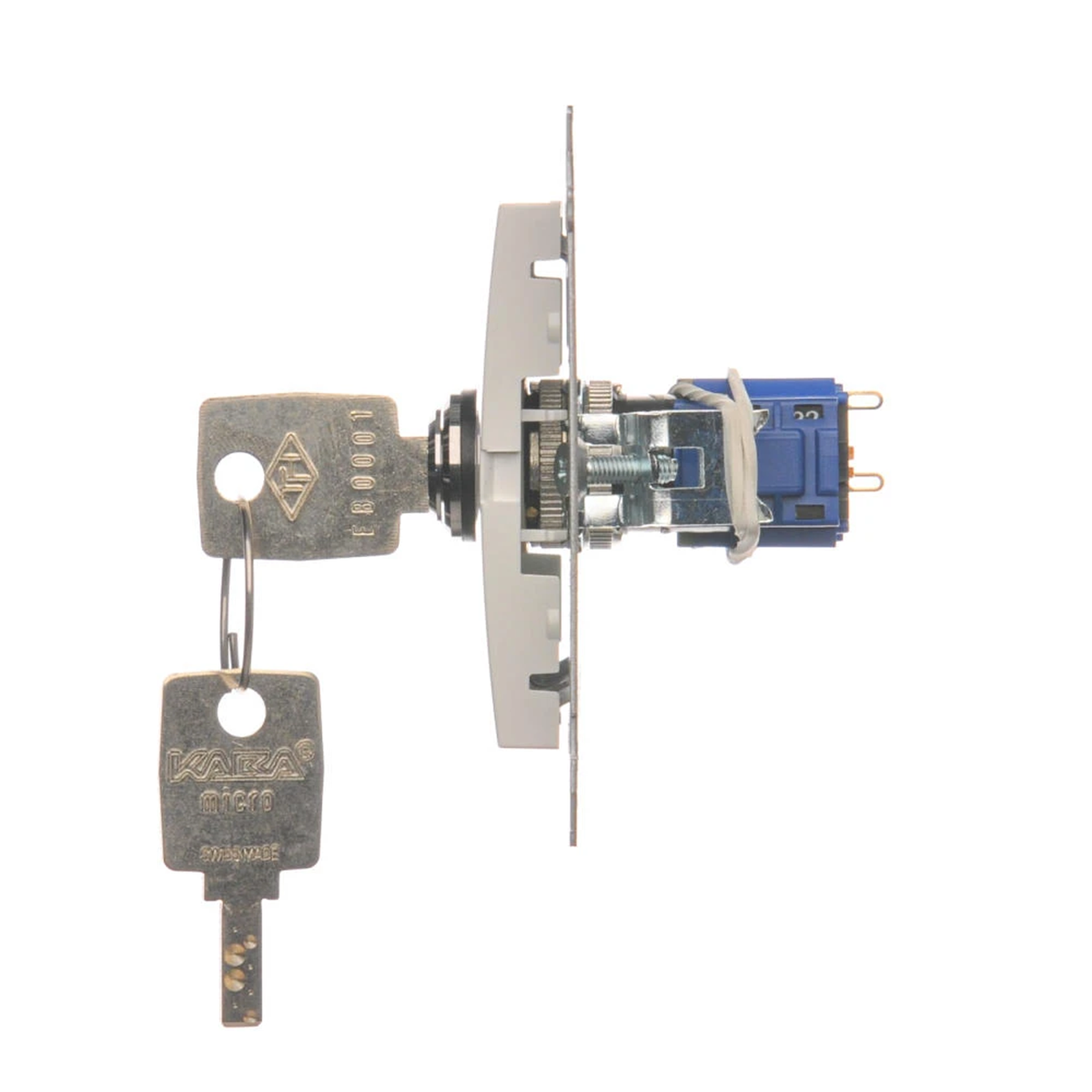

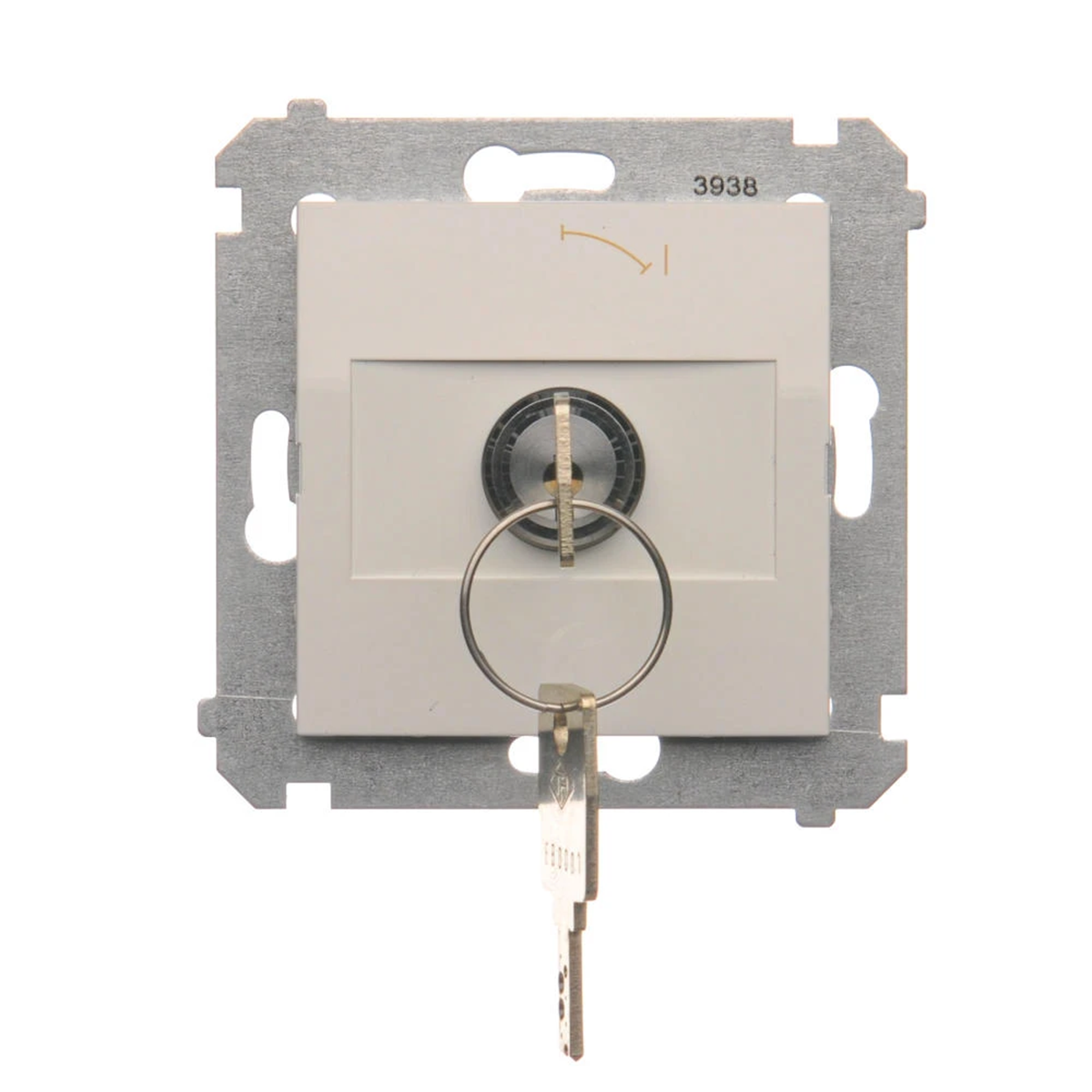

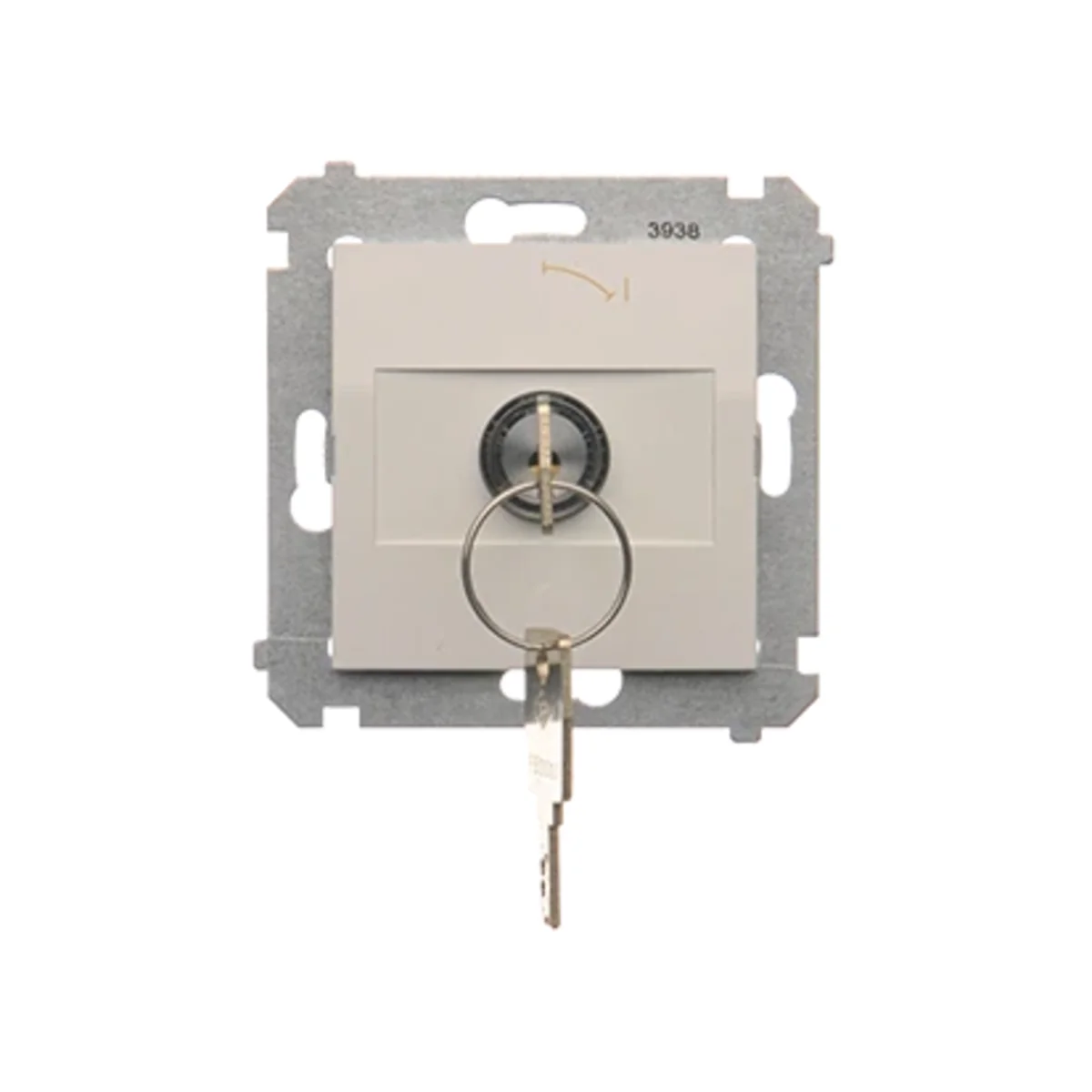

Key switch momentary button (module) 2-position 0-I N/O contact 5 A 230V white DP1K.01/11

local index:
MMZ200KONT
Catalog No:
DP1K.01/11
EAN code:
5902787828691
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 47
Number of keys: key
Price:
85,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Momentary key switch (push button) Simon 54 series Simon 54, from the manufacturer Contact Simon. Product catalog number it's DP1K.01/11. In white.



FEATURES

  • 2 position &ldquo ;0-I”.
  • Single-pole pushbutton (monostable).
  • 1 NO contact.
  • For soldering.
  • < li>The key can be removed only in the 0 position.
  • The product comes with 2 pieces of keyów.



SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by a noble form and rich colors.

Technical data

  • Halogen free
    Yes
  • Number of keys
    key
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Rated current [A]
    5
  • Family
    Simon 54
  • Width [mm]
    75
  • Version
    Confident
  • Surface protection
    Natural
  • Backlight
    NO
  • Variant
    Ordinary
  • Exact material
    PC
  • PKWIU
    27.33.11.0
  • Depth [mm]
    47
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • items
    0-1
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    Shiny
  • Mounting depth [mm]
    31
  • For the frame system
    Yes
  • Connection type
    For soldering

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Contacts
    1 make contact (NO)
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Nominal voltage
    250 V
  • Method of operation
    Key
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP20

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,068 0,068 0,791
Width (m) 0,075 0,085 0,190
Length (m) 0,075 0,055 0,290
Depth (m) 0,047 0,115 0,100
