Key switch momentary button (module) 2-position 0-I N/O contact 5 A 230V 0 gold (metallic) DP1K.01/44

Name: Key switch momentary button (module) 2-position 0-I N/O contact 5 A 230V 0 gold (metallic)
Brand: KONTAKT-SIMON
SKU: MMZ203KONT
Price: 86.95 PLN

local index:

MMZ203KONT

Catalog No:

DP1K.01/44

EAN code:

5902787828721

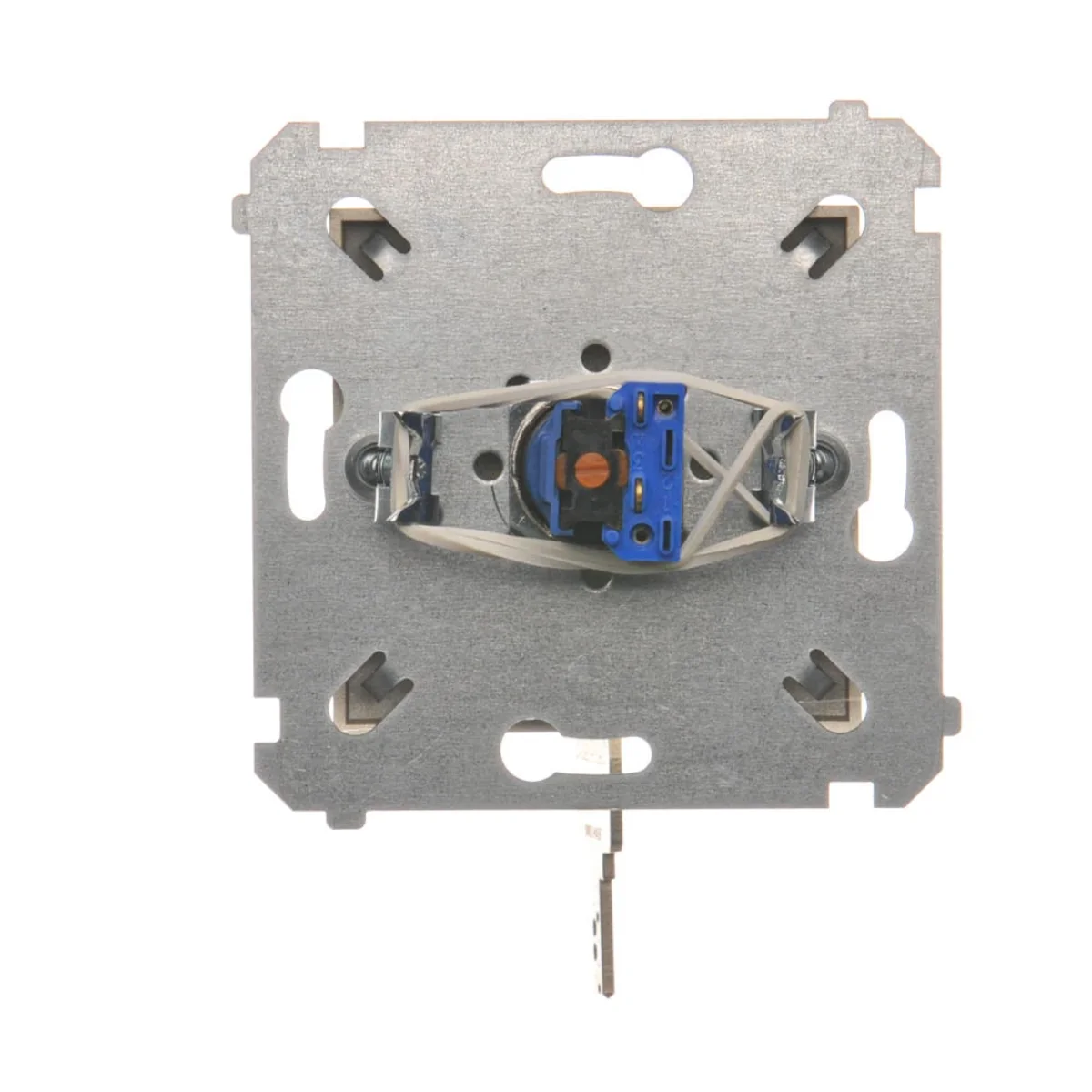

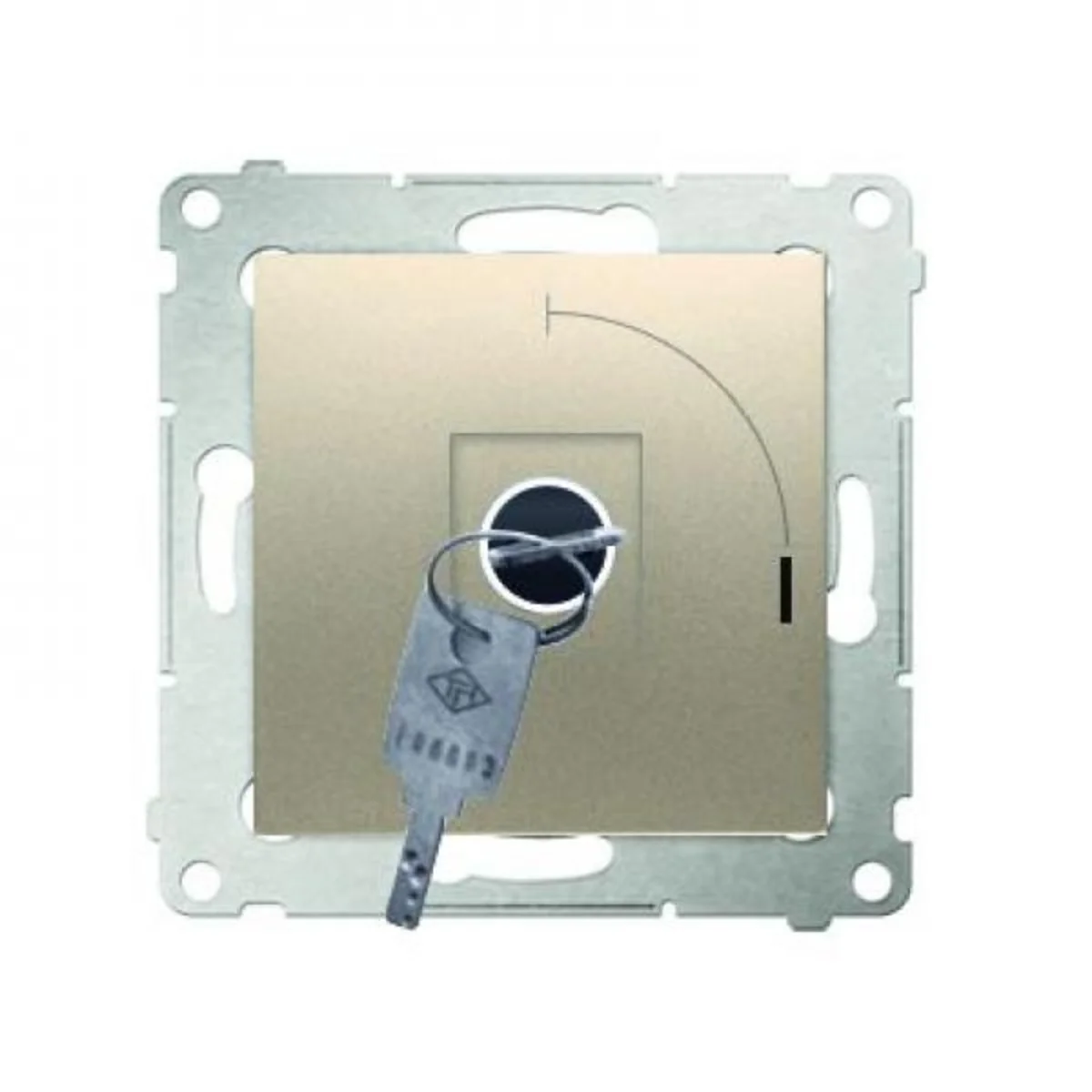

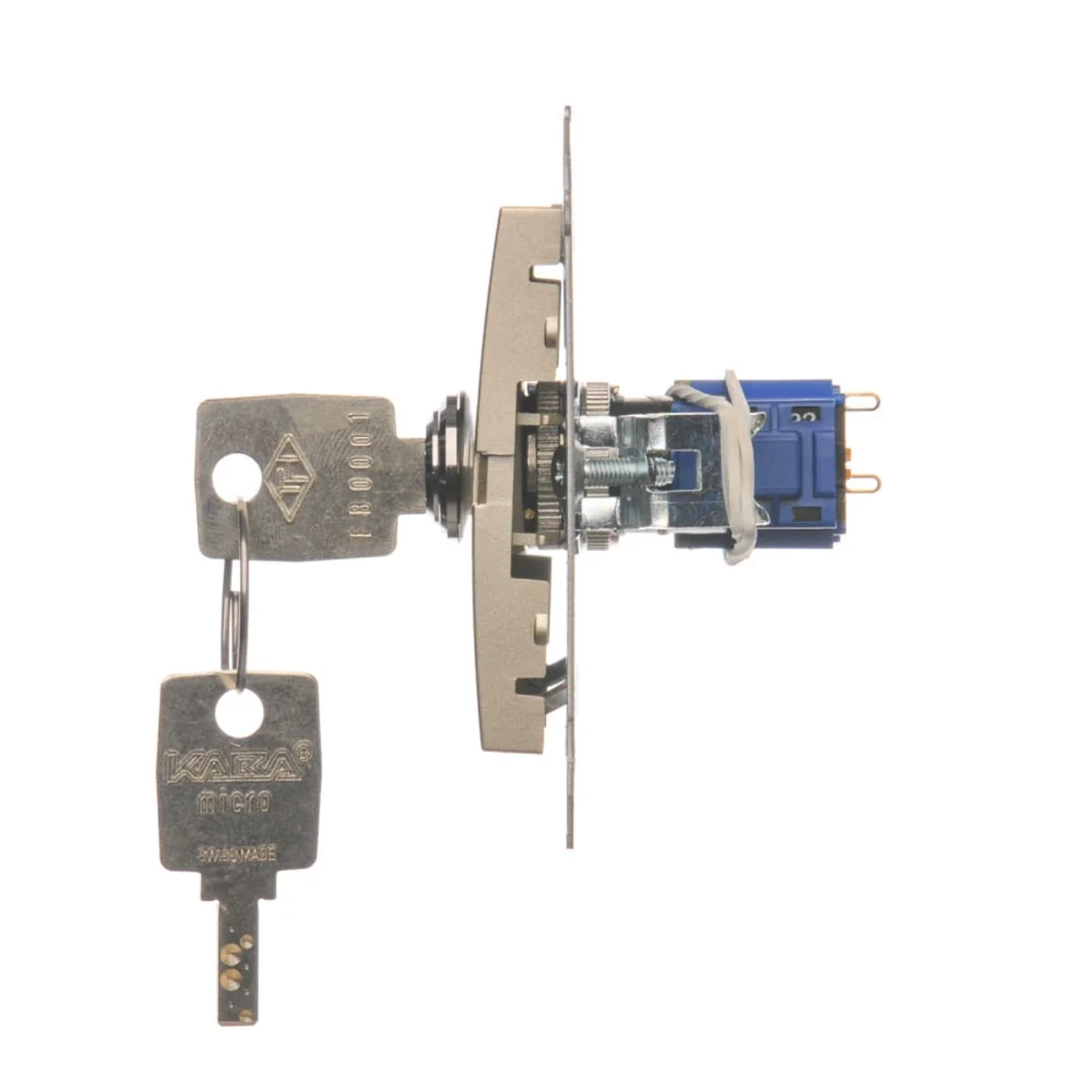

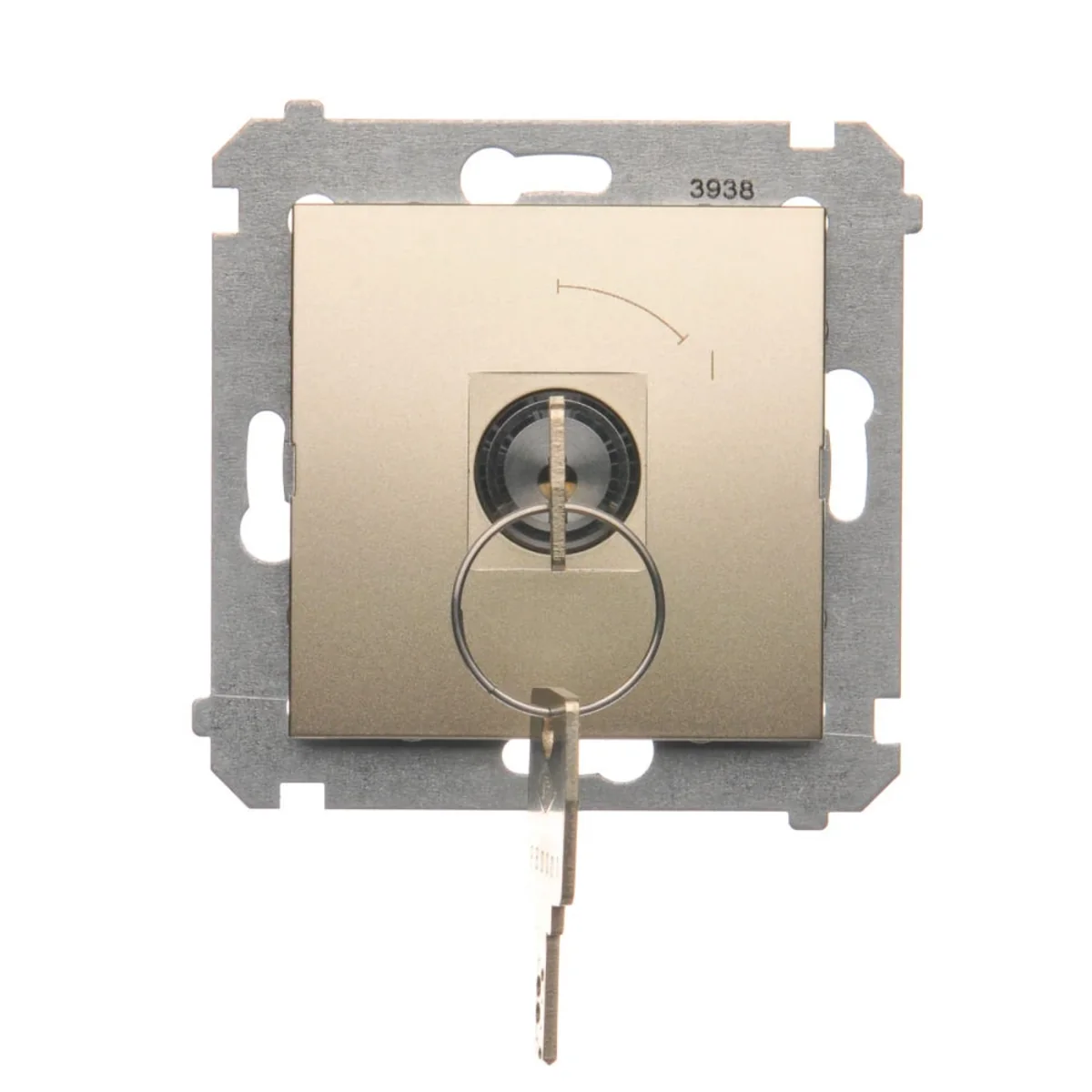

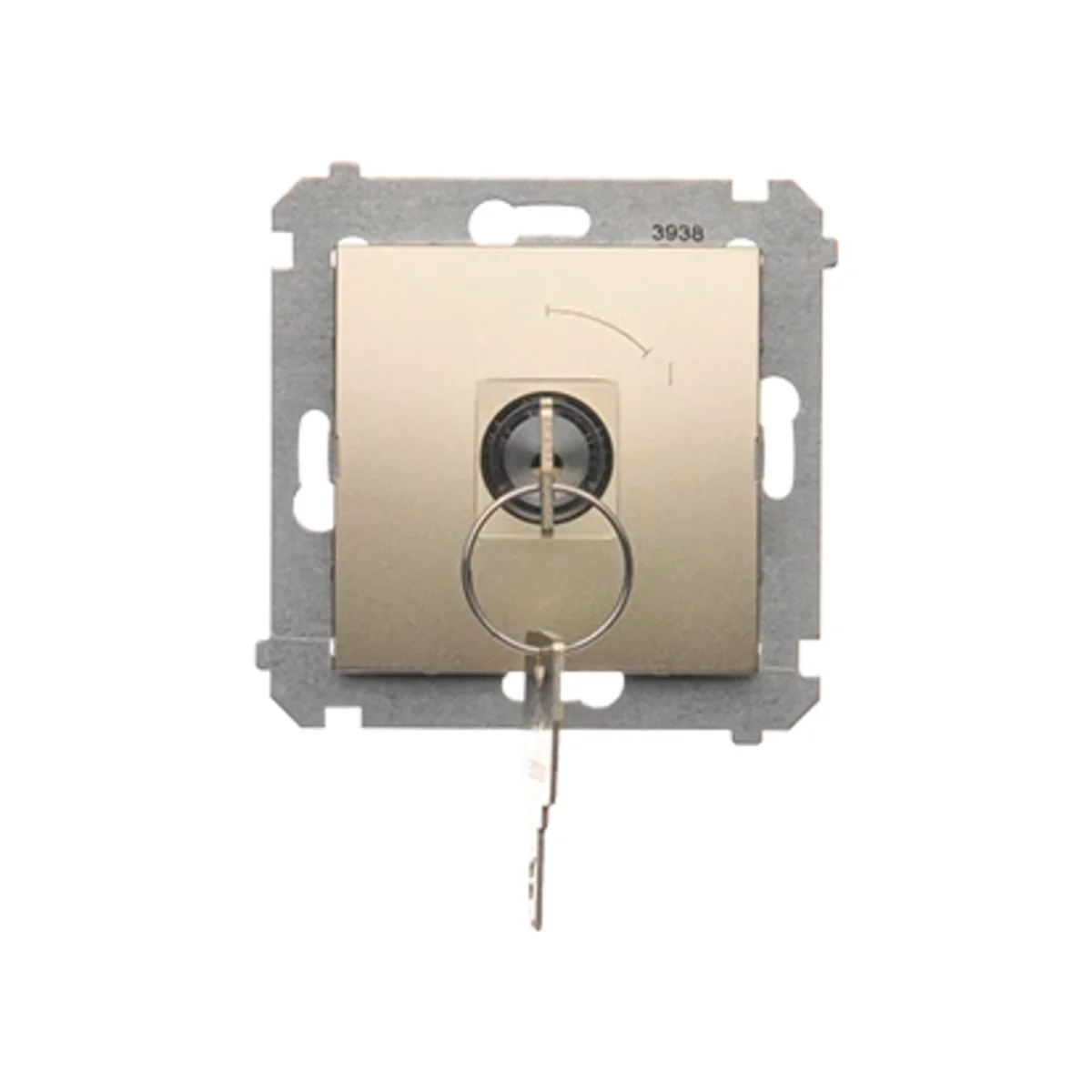

Key switch momentary button (module) 2-position 0-I N/O contact 5 A 230V 0 gold (metallic)

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 47

Number of keys: key

See full description

Price:

86,95 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Momentary key switch (push button) from the series Simon 54, from the manufacturer Contact Simon. Product catalog number it's DP1K.01/44. Gold matt, metallic colour.

FEATURES

2-position “0-I”.
Single-pole pushbutton (monostable).
1 NO contact.
For soldering.< /li>
The key can only be removed in position 0.
2 keys w are included with the product.

< h3>SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, distinguished by its noble form and rich colors.

Technical data

Halogen free

Yes
Number of keys

key
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Rated current [A]

5
Family

Simon 54
Width [mm]

75
Version

Confident
Surface protection

varnishing
Accurate color

Gold metallic matt
Mounting depth [mm]

31
For the frame system

Yes
Connection type

For soldering

Depth [mm]

47
Color

Golden
Material

Plastic
Installation

Flush-mounted
items

0-1
Type

Short
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

matte
Backlight

NO
Variant

Ordinary
Exact material

PC
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Contacts

1 make contact (NO)
Material

Plastic
Surface protection

Lacquered
Suitable for degree of protection (IP)

IP20

Method of operation

Key
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Nominal voltage

250 V

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,068	0,068	0,791
Width (m)	0,075	0,085	0,190
Length (m)	0,075	0,055	0,290
Depth (m)	0,047	0,115	0,100
