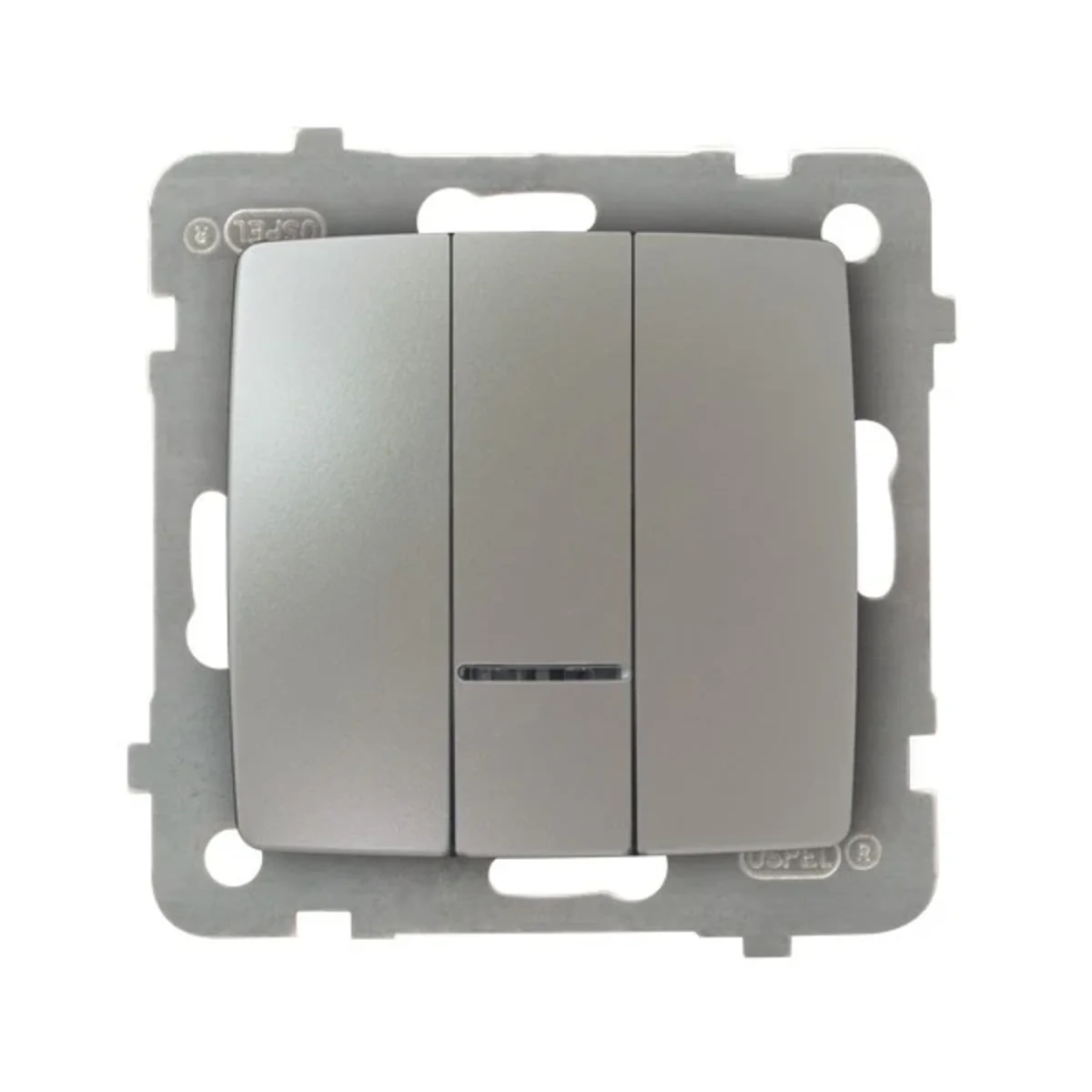

KARO Triple switch with silver pearl illumination, without a frame ŁP-13SS/M/43
local index:
MMW028OSPE
Catalog No:
ŁP-13SS/M/43
EAN code:
5907577458591
Price:
10,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Triple illuminated switch from the Karo series, from Ospel. The product's catalog number is ŁP-13SS/M/43.
SERIES DESCRIPTION
In < strong>Karo combines strong shapes of mechanisms with delicate lines of frames. The triple connector characterizes the features of this unique series.
Technical data
-
Depth [mm]42
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyDIAMOND
-
Width [mm]71
-
Height [mm]71
-
Accurate colorSilver pearl
-
Mounting depth [mm]25
-
For the frame systemYes
-
Backlight typeLTS lamp
-
PKWIU27.33.11.0
-
Number of keys3
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeMulti-key
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
BacklightYes
-
Terminal typeThreaded
-
Exact materialPlastic Metal
-
Backlight colorBlue
Other technical data
-
Wiring systemOff switch 2x1-pole
-
Assembly arrangementBasic element with complete housing
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
ColourOther
-
Label space/information surfaceNo
-
Function lightingOrientation
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height75 mm
-
Built-in depth25 mm
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Number of rockers3
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9002
-
IlluminationYes
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width75 mm
-
Device depth42 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 5 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
