KARO Triple connector chocolate metal, frameless ŁP-13S/M/40

Name: KARO Triple connector chocolate metal, frameless
Brand: OSPEL
SKU: MMW022OSPE
Price: 9.58 PLN

Indice locale:

MMW022OSPE

Numero di catalogo:

ŁP-13S/M/40

Codice EAN:

5907577458546

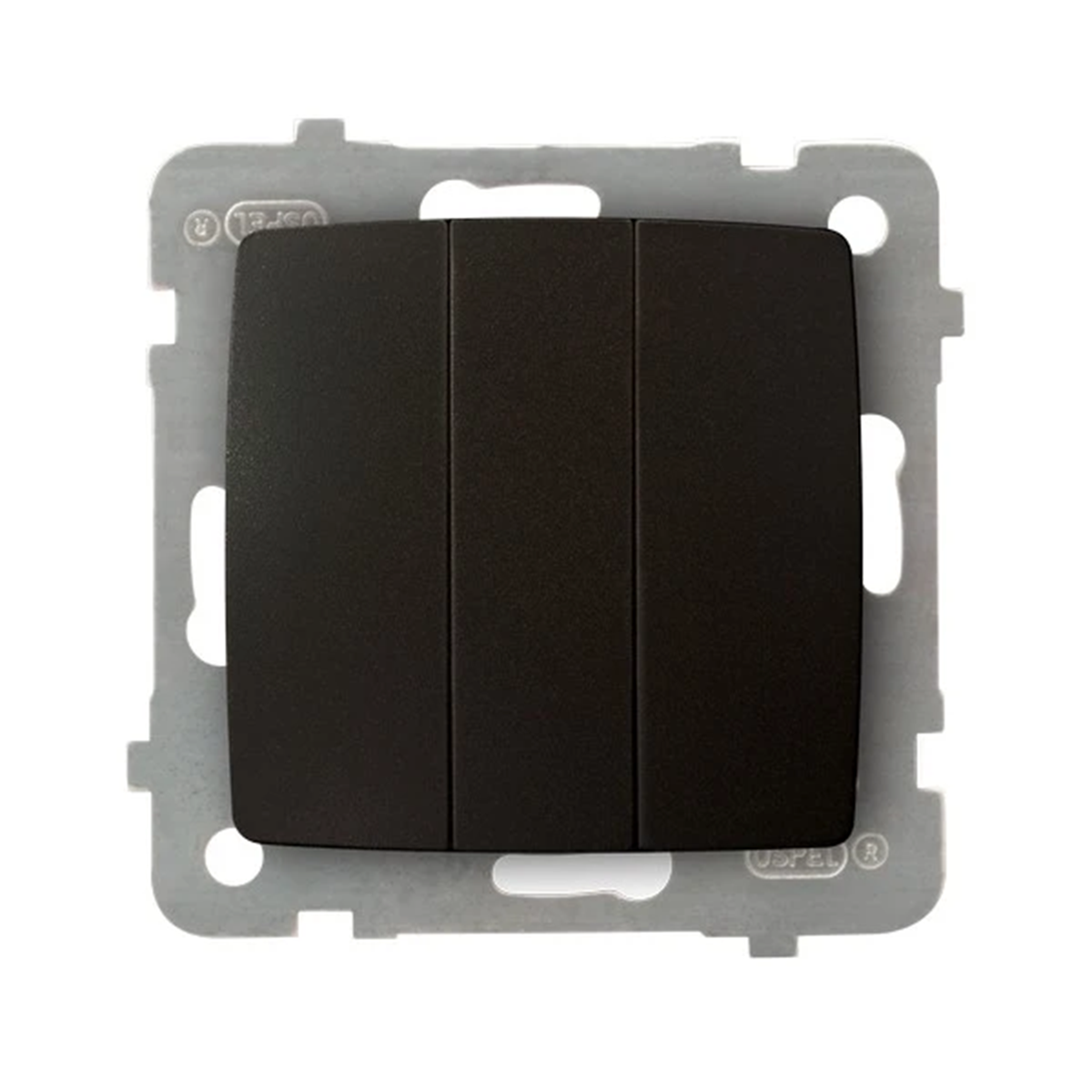

KARO Triple connector chocolate metal, frameless

Clicca sulla foto per ingrandire

Produttore: OSPEL

Depth [mm]: 42

Number of keys: 3

Color: Brown

Vedi la descrizione completa

Prezzo:

9,58 €

gross / pezzi

(inclusa IVA 23%)

Consegna in 3 ore

fino a 2 settimane (giorni lavorativi)

Raccolta in 1h

Quantità pezzi

(multiplo:

1

)

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso

Descrizione del prodotto

Triple connector from the Karo series, from Ospel. The product's catalog number is ŁP-13S/M/40.

SERIES DESCRIPTION

In < strong>Karo combines strong shapes of mechanisms with delicate lines of frames. The triple connector characterizes the features of this unique series.

Dati tecnici

Depth [mm]

42
Color

Brown
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

DIAMOND
Width [mm]

71
Height [mm]

71
Accurate color

Chocolate metallic
Mounting depth [mm]

25
For the frame system

Yes
PKWIU

27.33.11.0

Number of keys

3
Shape

Square
Fixing

claws screws
Rated voltage [V]

230
Type

Multi-key
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Backlight

NO
Terminal type

Threaded
Exact material

Plastic Metal

Altri dati tecnici

Wiring system

Off switch 2x1-pole
Assembly arrangement

Basic element with complete housing
Push button switch

No
Mounting method

Flush-mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Lacquered
Colour

Bronze
Label space/information surface

No
Suitable for degree of protection (IP)

IP20
Rated current

10 A
Feedback-signal contact

No
Washing machine switch

No
Device height

75 mm
Built-in depth

25 mm

Method of operation

Rocker/button
Number of modules (module system)

1
Number of rockers

3
Type of fastening

Mounting with claw and screw
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

8019
Illumination

No
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Device width

75 mm
Device depth

42 mm

Dettagli del produttore

Produttore

OSPEL S.A.
Indirizzo

42-436 Wierbka Główna 128 Polska
Email

ospel@ospel.com.pl

Imballaggio sfuso

Una specie di pacchetto	Pudełko
Quantità	5 pezzi
Larghezza (m)	0,140
Lunghezza (m)	0,162
Profondità (m)	0,090
