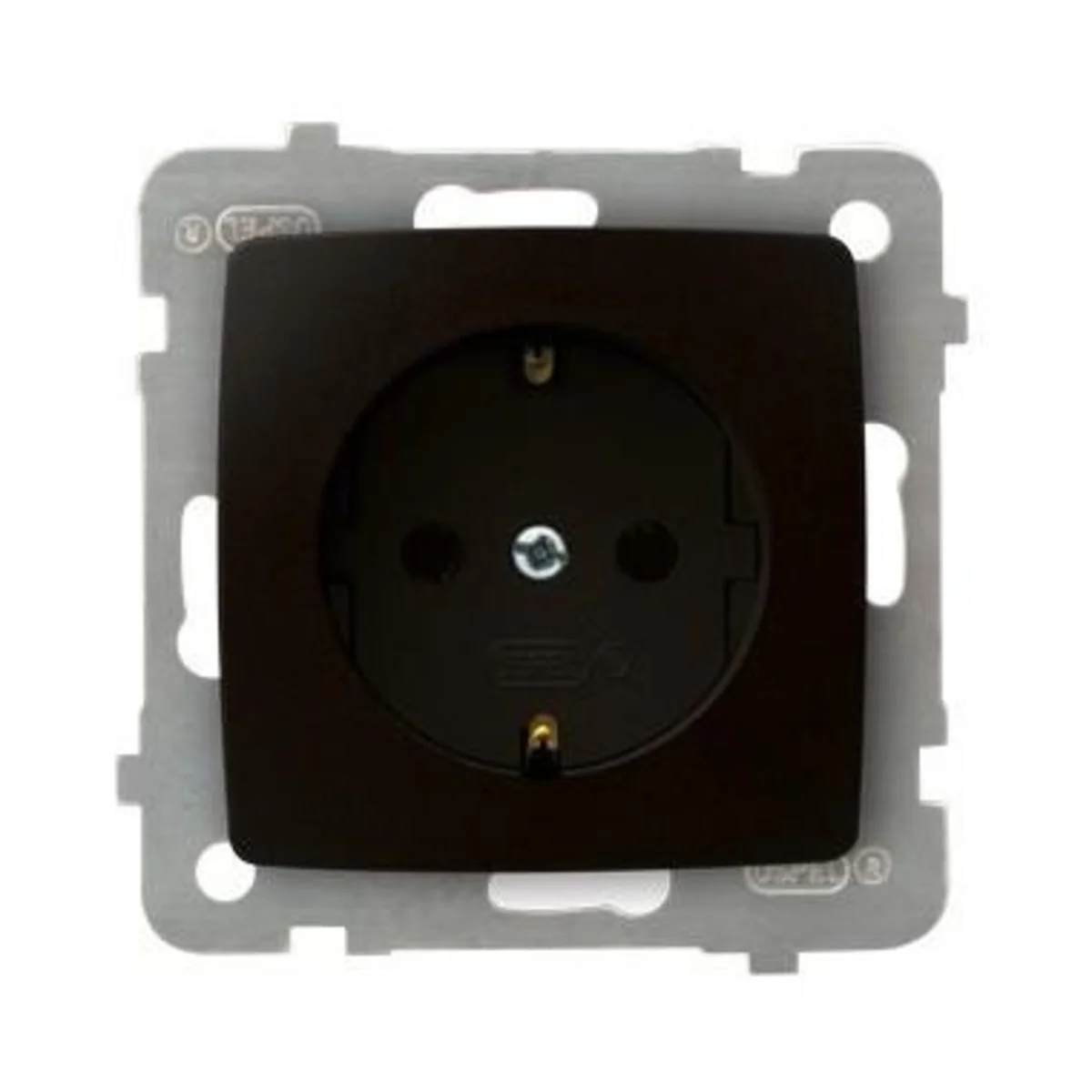

KARO Single socket with earthing schuko chocolate metal GP-1SS/M/40

local index:
MEE596OSPE
Catalog No:
GP-1SS/M/40
EAN code:
5907577456030
Manufacturer: OSPEL
Depth [mm]: 41
Number of sockets: 1
Color: Brown
Price:
6,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electrical socket from the Karo series, from the manufacturer Ospel. The product part number is GP-1SS/M/40.



FEATURES

  • Single.
  • With schuko ground.
  • To be fitted with frame.
  • Thread terminals.
  • Color chocolate metallic.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • flush mounting.
  • Dimensions: 71 x 71 mm (height x width).



SERIES DESCRIPTION

Collection Karo at first glance, it brings to mind mainly classic shapes and a simple form, where the regular line has been broken with delicate convexities. It includes products whose expressive shapes of mechanisms contrast with the subtle lines of the frames. The Karo series is a balanced proposition for people who want the accessories in their home to be a discreet wall decoration.

Technical data

  • Depth [mm]
    41
  • Color
    Brown
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    DIAMOND
  • Width [mm]
    71
  • Ground
    schuko
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Chocolate metallic
  • Mounting depth [mm]
    29
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    Bronze
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    75 mm
  • Min. depth of built-in installation box
    60 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    0
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    8019
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    75 mm
  • Device depth
    41 mm

Bulk packaging

A kind of package Pudełko
Quantity 5 pcs.
Width (m) 0,150
Length (m) 0,200
Depth (m) 0,090
