KARO Silver pearl hotel connector, without frame ŁP-15SS/M/43
local index:
MMH017OSPE
Catalog No:
ŁP-15SS/M/43
EAN code:
5907577457808
Price:
27,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

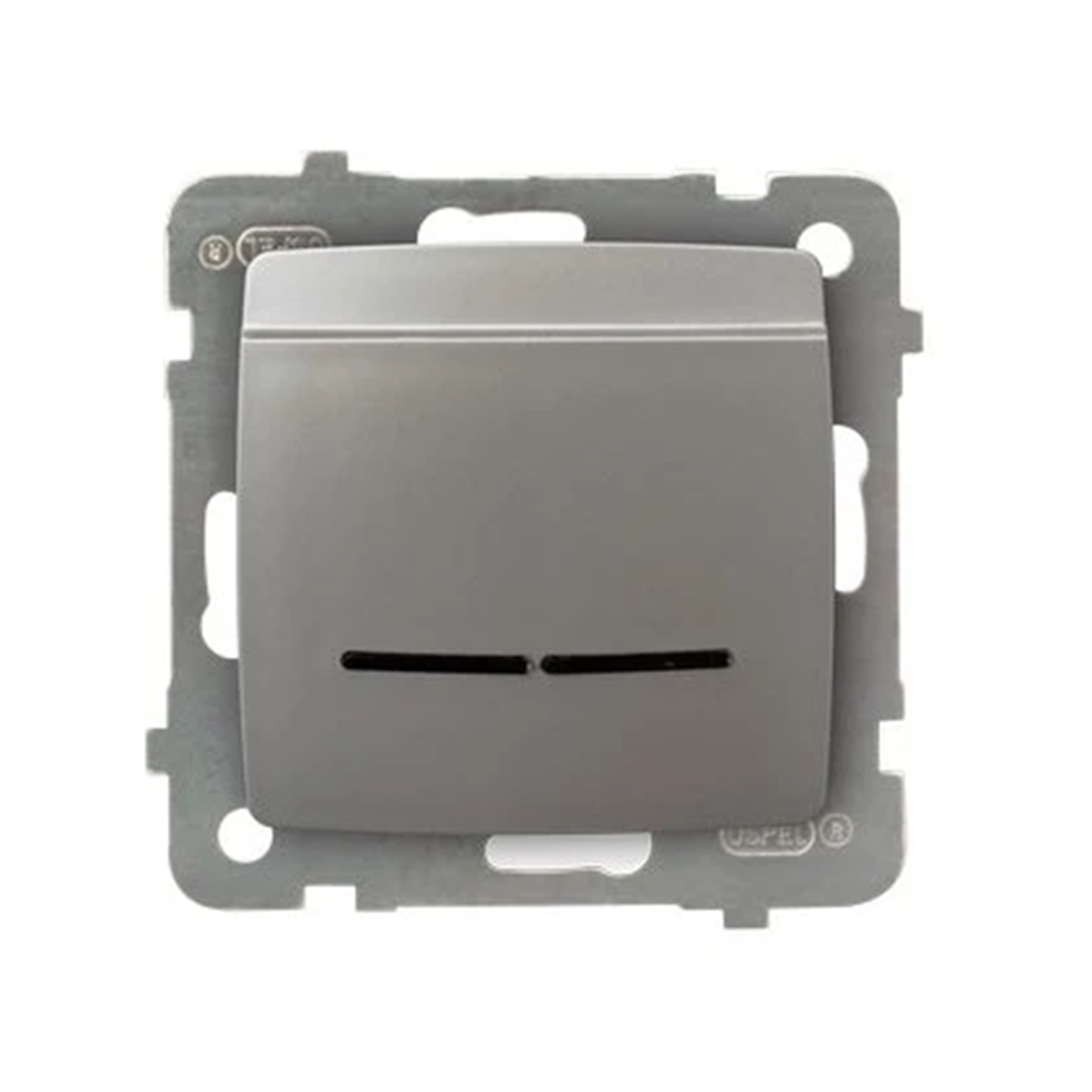

Hotel connector from the Karo series, from Ospel. The product catalog number is ŁP-15SS/M/43.
FEATURES
- With backlight.
- Relay off delay 3s.
- Trigger type - electronic, photocell.
DESCRIPTION OF THE SERIES
The products from the Karo series combine strong shapes of mechanisms with delicate lines of frames. Hotel connector characterizes the features of this unique series.
Technical data
-
Depth [mm]51
-
ColorSilver
-
MaterialPlastic
-
Rated voltage [V]230
-
Rated current [A]16
-
FamilyDIAMOND
-
Width [mm]71
-
Height [mm]71
-
Accurate colorSilver pearl
-
Mounting depth [mm]31
-
Terminal typeThreaded
-
Backlight typeLED
-
Number of keyshotel card
-
ShapeSquare
-
Fixingclaws screws
-
Shutdown delay [s]3
-
TypeHotel
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
BacklightYes
-
load power [W]Incandescent: 3200 Induction, fluorescent: 750
-
For the frame systemYes
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemOff switch 1-pole
-
Assembly arrangementBasic element with complete housing
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
ColourOther
-
Label space/information surfaceNo
-
Function lightingOrientation
-
Suitable for degree of protection (IP)IP20
-
Rated current16 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height75 mm
-
Built-in depth31 mm
-
Method of operationHotel card
-
Number of modules (module system)1
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9002
-
IlluminationYes
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width75 mm
-
Device depth51 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 5 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,090 |
