OSPEL

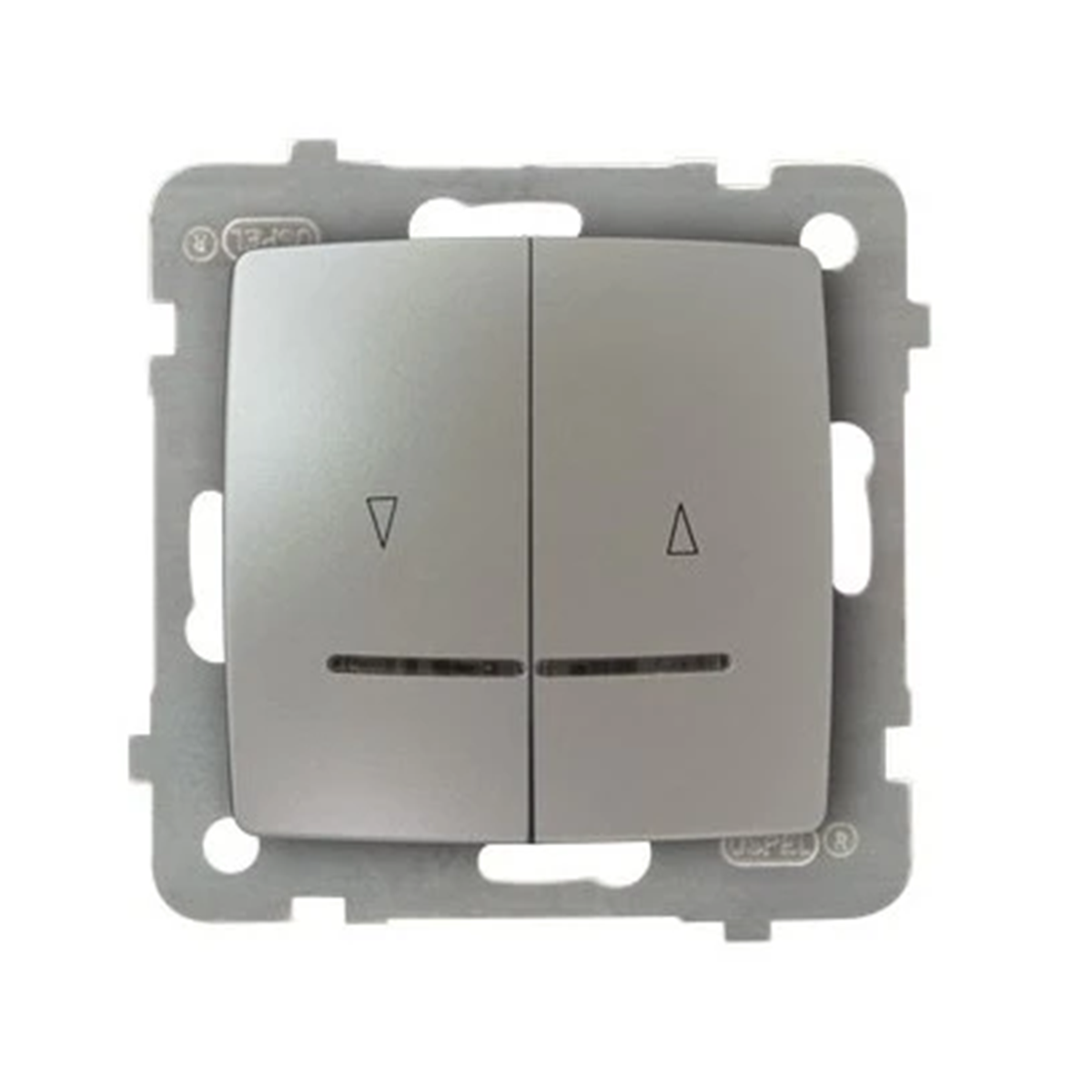

KARO Shutter switch with orange backlight and mechanical interlock, pearl silver ŁP-7SBS/M/43

local index:
MMO069OSPE
Catalog No:
ŁP-7SBS/M/43
EAN code:
5907577478933
Price:
10,28 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Louvre connector from the Karo series, from Ospel. The product catalog number is ŁP-7SBS/M/43.

  • With backlight.
  • Bistable.
  • Electric lock and mechanical.



SERIES DESCRIPTION

The products of the Karo series combine decisive shapes of mechanisms with delicate frame lines. The shutter connector characterizes the features of this unique series.

Technical data

  • Depth [mm]
    42
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    DIAMOND
  • Width [mm]
    71
  • Version
    Single
  • Surface protection
    varnishing
  • Backlight
    Yes
  • Blockade
    Mechanical
  • Variant
    Two-position
  • Backlight type
    LTS lamp
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Silver pearl
  • Mounting depth [mm]
    25
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • Backlight color
    Blue

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Method of operation
    Rocker
  • Mechanical controllable
    yes
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9002
  • Label space/information surface
    no
  • Rated current
    10 A
  • Number of buttons
    2
  • Min. depth of built-in installation box
    40 mm
  • Model
    Other
  • Blokada elektryczna i mechaniczna
    yes
  • Electronic controllable
    no
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • Colour
    Other
  • Transparent
    no
  • Suitable for degree of protection (IP)
    IP20
  • Nominal voltage
    250 V
  • Number of modules (module system)
    0
