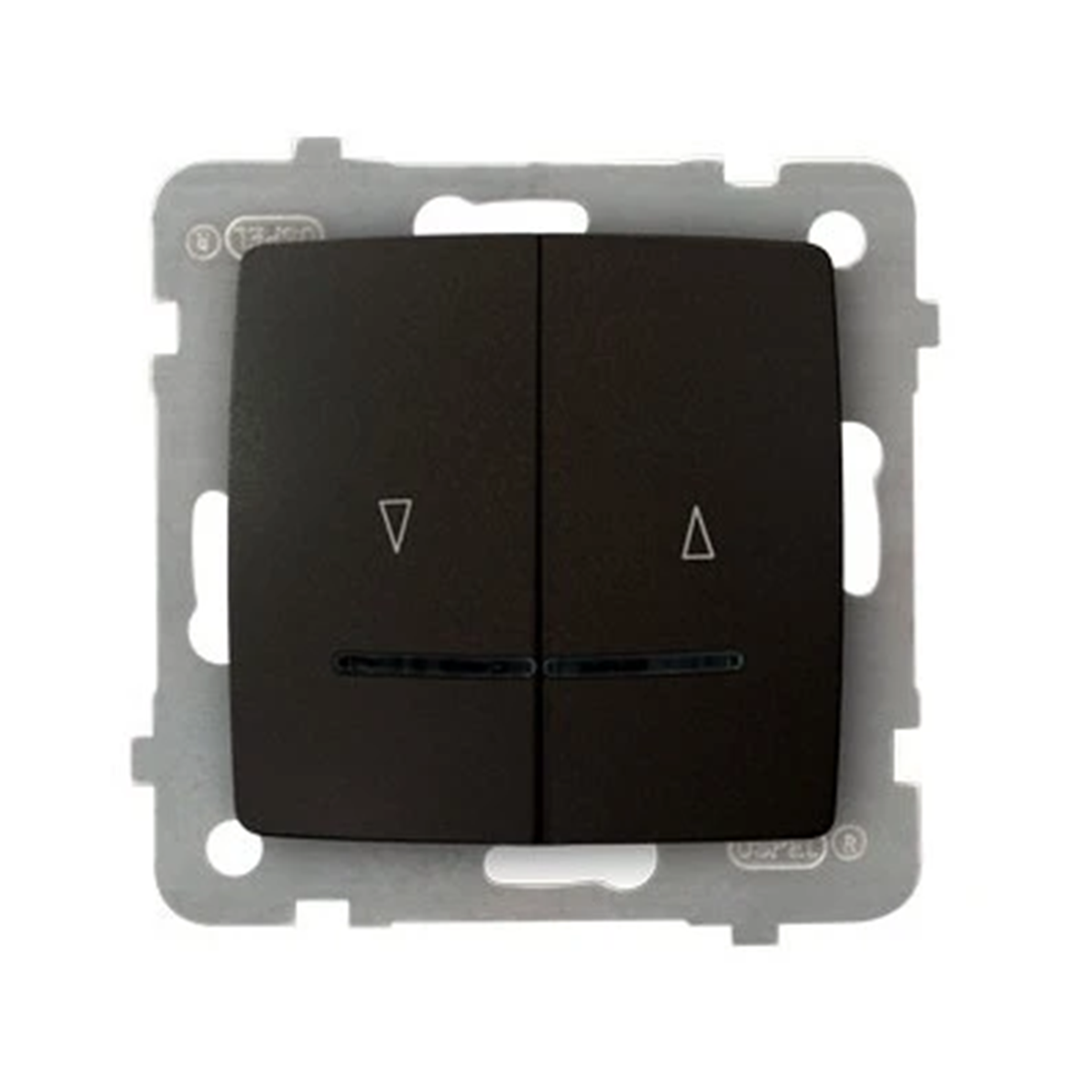

KARO Shutter switch with orange backlight and mechanical interlock chocolate metallic ŁP-7SBS/M/40
local index:
MMO067OSPE
Catalog No:
ŁP-7SBS/M/40
EAN code:
5907577478919
Price:
10,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Louvre connector from the Karo series, from Ospel. The product catalog number is ŁP-7SBS/M/40.
- With backlight.
- Bistable.
- Electric lock and mechanical.
SERIES DESCRIPTION
The products of the Karo series combine decisive shapes of mechanisms with delicate frame lines. The shutter connector characterizes the features of this unique series.
Technical data
-
Depth [mm]42
-
ColorBrown
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyDIAMOND
-
Width [mm]71
-
VersionSingle
-
Surface protectionvarnishing
-
BacklightYes
-
BlockadeMechanical
-
VariantTwo-position
-
Backlight typeLTS lamp
-
PKWIU27.33.11.0
-
Number of keys2
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeShutter
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorChocolate metallic
-
Mounting depth [mm]25
-
Terminal typeThreaded
-
For the frame systemYes
-
Backlight colorBlue
Other technical data
-
Assembly arrangementBasic element with complete housing
-
Method of operationRocker
-
Mechanical controllableYes
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
Type of fasteningMounting with claw and screw
-
RAL-number (similar)8019
-
Label space/information surfaceNo
-
Rated current10 A
-
Number of buttons2
-
Min. depth of built-in installation box40 mm
-
ModelOther
-
Blokada elektryczna i mechanicznaYes
-
Electronic controllableNo
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
ColourBronze
-
TransparentNo
-
Suitable for degree of protection (IP)IP20
-
Nominal voltage250 V
-
Number of modules (module system)0
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 5 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
