KARO RTV-SAT socket pearl silver GPA-SS/M/43

Index local:
MEA304OSPE
Numéro de catalogue:
GPA-SS/M/43
Code EAN:
5907577457709
Producteur: OSPEL
Depth [mm]: 36
Number of sockets: 3
Color: Silver
Prix:
18,68 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 2 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Description du produit

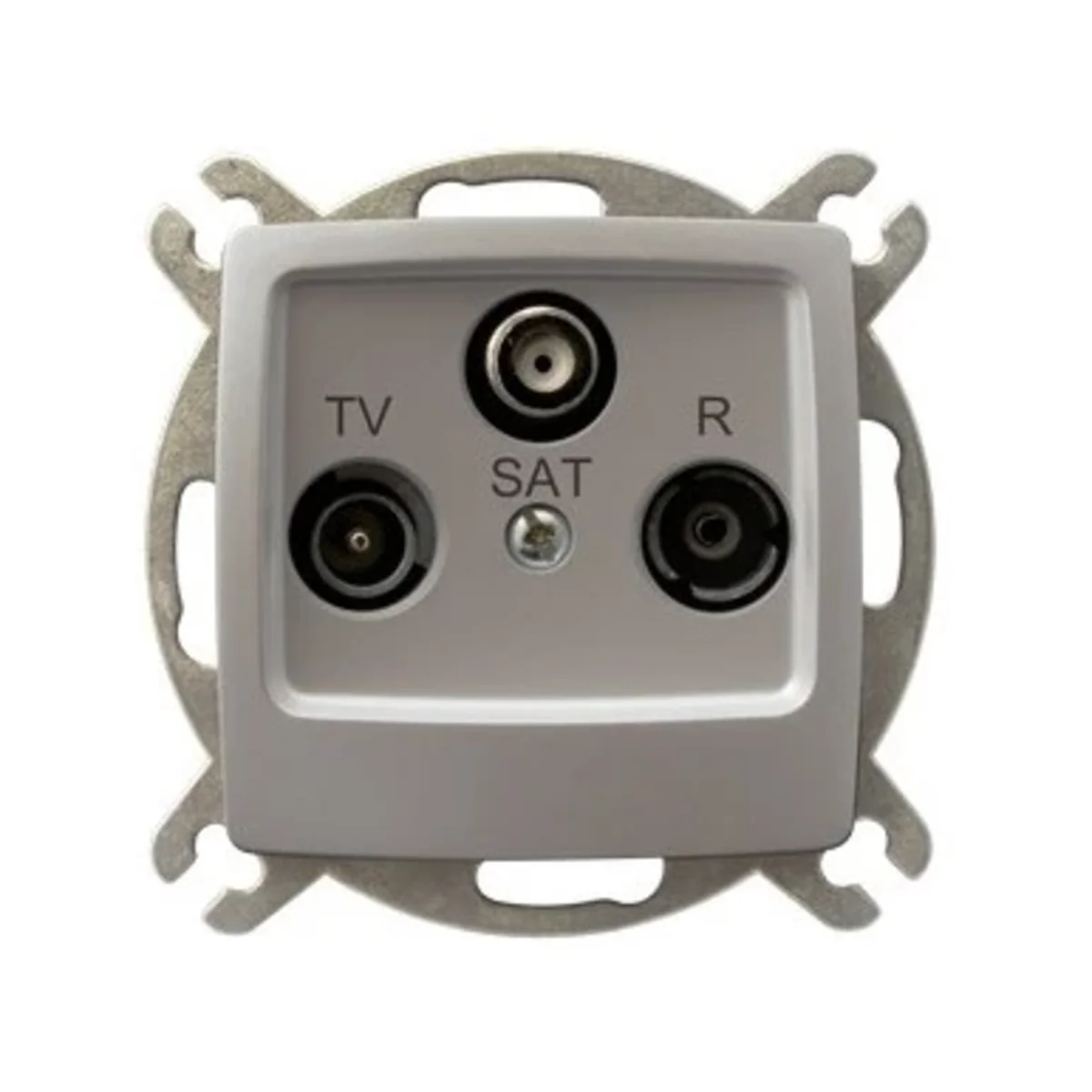

RTV-SAT end socket. It is designed for parallel installation with an independent antenna cable running to each receiver. To be equipped with a frame.



SERIES DESCRIPTION

The Karo collection at first glance brings to mind mainly classic shapes and a simple form, where the regular line has been broken with delicate convexities.  It includes products whose expressive shapes of mechanisms contrast with the subtle lines of the frames. The Karo series is a balanced proposition for people who want the accessories in their home to be a discreet wall decoration.

Frames in fashionable, intense colors will bring a decisive character and dynamics to the interior. Thanks to min, bold design trends will be present in your home.

Données techniques

  • Depth [mm]
    36
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 1.5 TV: 1-1.5 SAT: 1.5-2
  • Version
    Final
  • Surface protection
    varnishing
  • Accurate color
    Silver pearl
  • Mounting depth [mm]
    24
  • Variant
    R TV sat
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    Yes
  • Family
    DIAMOND
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    For output R: 88 For entry: 5-2400
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Autres données techniques

  • Model
    End socket
  • Number of modules (module system)
    1
  • Tap loss at 860 MHz
    1.5 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    0 dB
  • Suitable for remote power supply
    No
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9002
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    2 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    Other
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes

Détails du fabricant

Emballage en vrac

Une sorte de paquet Pudełko
Quantité 5 pcs.
Largeur (m) 0,140
Longueur (m) 0,162
Profondeur (m) 0,090
