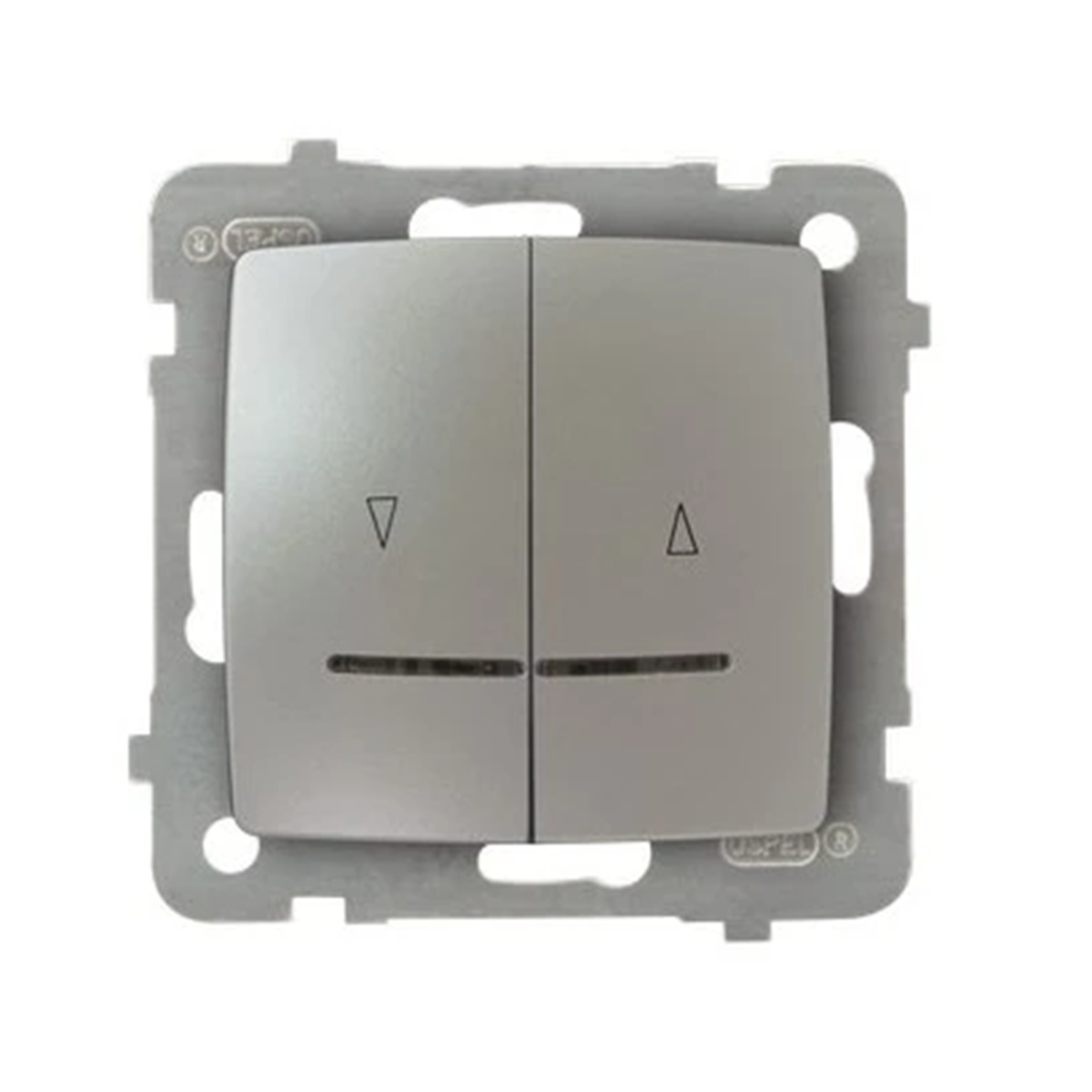

KARO KARO shutter connector with pearl silver backlight ŁP-7SS/M/43
local index:
MMO073OSPE
Catalog No:
ŁP-7SS/M/43
EAN code:
5907577457341
Price:
8,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Louvre connector from the Karo series, from Ospel. The product catalog number is ŁP-7SS/M/43.
- With backlight.
- Making.
- Monostable.
- Electric lock.
SERIES DESCRIPTION
In Karo the strong shapes of the mechanisms have been combined with the delicate lines of the frames. The shutter connector characterizes the features of this unique series.
Technical data
-
Depth [mm]42
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyDIAMOND
-
Width [mm]71
-
VersionSingle
-
Surface protectionvarnishing
-
BacklightYes
-
Blockadeelectric
-
VariantTwo-position normally open
-
Backlight typeLTS lamp
-
PKWIU27.33.11.0
-
Number of keys2
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeShutter
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorSilver pearl
-
Mounting depth [mm]25
-
Terminal typeThreaded
-
For the frame systemYes
-
Backlight colorBlue
Other technical data
-
Assembly arrangementBasic element with complete housing
-
Method of operationRocker
-
Mechanical controllableYes
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
Type of fasteningMounting with claw and screw
-
RAL-number (similar)9002
-
Label space/information surfaceNo
-
Rated current10 A
-
Number of buttons2
-
Min. depth of built-in installation box40 mm
-
ModelOther
-
Blokada elektryczna i mechanicznaYes
-
Electronic controllableNo
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
ColourOther
-
TransparentNo
-
Suitable for degree of protection (IP)IP20
-
Nominal voltage250 V
-
Number of modules (module system)1
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 5 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
