KARO Cross connector with backlight white, without frame ŁP-4SS/M/00

Indice locale:

MMK041OSPE

Numero di catalogo:

ŁP-4SS/M/00

Codice EAN:

5907577453664

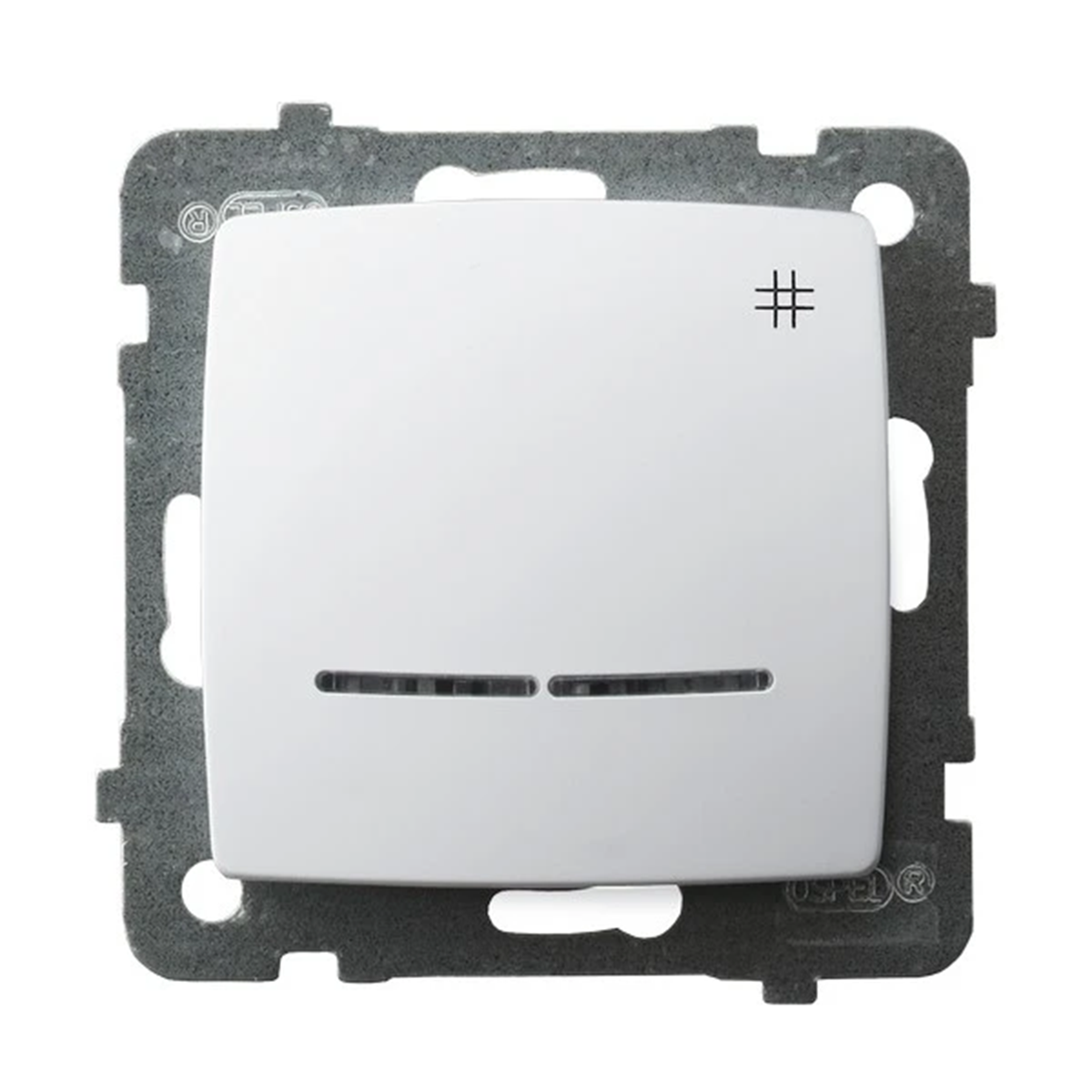

KARO Cross connector with backlight white, without frame

Clicca sulla foto per ingrandire

Produttore: OSPEL

Depth [mm]: 42

Number of keys: 1

Color: White

Vedi la descrizione completa

Prezzo:

36,27 zł

gross / pezzi

(inclusa IVA 23%)

fino a 2 settimane

Su ordinazione

Quantità pezzi

(multiplo:

1

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso

Descrizione del prodotto

An illuminated cross connector from the Karo series, from Ospel. The product's catalog number is ŁP-4SS/M/00.

SERIES DESCRIPTION

In < strong>Karo combines strong shapes of mechanisms with delicate lines of frames. The cross connector characterizes the features of this unique series.

Dati tecnici

Depth [mm]

42
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

DIAMOND
Width [mm]

71
Height [mm]

71
Backlight

Yes
Terminal type

Threaded
Exact material

Plastic Metal
Backlight color

Orange

Number of keys

1
Shape

Square
Fixing

claws screws
Rated voltage [V]

230
Type

Cross
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Mounting depth [mm]

25
For the frame system

Yes
Backlight type

LTS lamp
PKWIU

27.33.11.0

Altri dati tecnici

Wiring system

Intermediate switch
Assembly arrangement

Basic element with complete housing
Push button switch

No
Mounting method

Flush-mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Label space/information surface

No
Function lighting

Orientation
Suitable for degree of protection (IP)

IP20
Rated current

16 A
Feedback-signal contact

No
Washing machine switch

No
Device height

75 mm
Built-in depth

25 mm

Method of operation

Rocker/button
Number of modules (module system)

1
Number of rockers

1
Type of fastening

Mounting with claw and screw
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9003
Illumination

Yes
Type of lighting

Glow lamp
Nominal voltage

250 V
Switching current for fluorescent lamps

16 AX
Connection type

Push-in clamp
Device width

75 mm
Device depth

42 mm
Min. depth of built-in installation box

60 mm

Dettagli del produttore

Produttore

OSPEL S.A.
Indirizzo

42-436 Wierbka Główna 128 Polska
Email

ospel@ospel.com.pl

Imballaggio sfuso

Una specie di pacchetto	BX
Quantità	10 pezzi
Larghezza (m)	0,710
Lunghezza (m)	0,710
Profondità (m)	0,250
