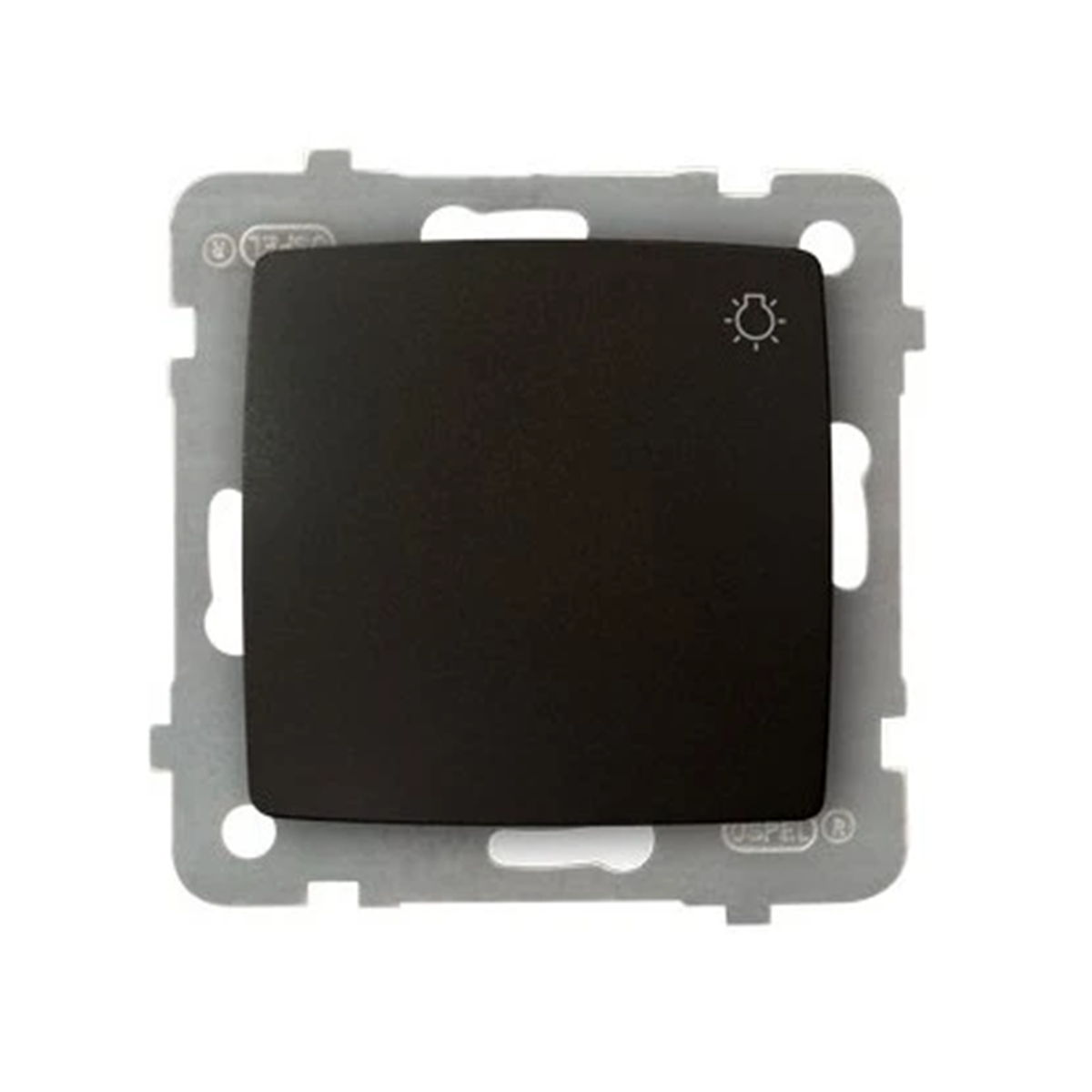

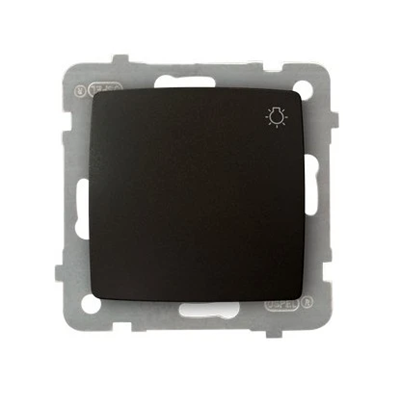

KARO Contact switch "light" chocolate metal, without frame ŁP-5S/M/40
local index:
MMZ081OSPE
Catalog No:
ŁP-5S/M/40
EAN code:
5907577455859
Price:
6,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Short-circuit switch "light" from the Karo series, from the manufacturer Ospel. The product catalog number is < strong>ŁP-5S/M/40. Chocolate metallic color.
FEATURES
- To be equipped with into a frame.
- The "light" symbol on the key.
- To obtain IP44 splash-proof class, use a sealing kit for switches.
SERIES DESCRIPTION
< p>The Karo collection at first glance brings to mind mainly classic shapes and a simple form, where the regular line has been broken with delicate convexities. It includes products whose expressive shapes of mechanisms contrast with the subtle lines of the frames. The Karo series is a balanced proposition for people who want the accessories in their home to be a discreet wall decoration.Frames in fashionable, intense colors will bring a decisive character and dynamics to the interior. Thanks to min, bold design trends will be present in your home.
Technical data
-
Depth [mm]42
-
ColorBrown
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyDIAMOND
-
SymbolLight
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorChocolate metallic
-
Mounting depth [mm]25
-
VariantLight
-
Exact materialPlastic Metal
-
Number of keys1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeShort
-
Level of securityIP20
-
Width [mm]71
-
VersionConfident
-
Surface protectionvarnishing
-
BacklightNO
-
Terminal typeThreaded
-
For the frame systemYes
-
PKWIU27.33.11.0
Other technical data
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)8019
-
IlluminationNo
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width75 mm
-
Device depth42 mm
-
Assembly arrangementBasic element with complete housing
-
Push button switchYes
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
ColourBronze
-
Label space/information surfaceNo
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height75 mm
-
Built-in depth25 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 5 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
