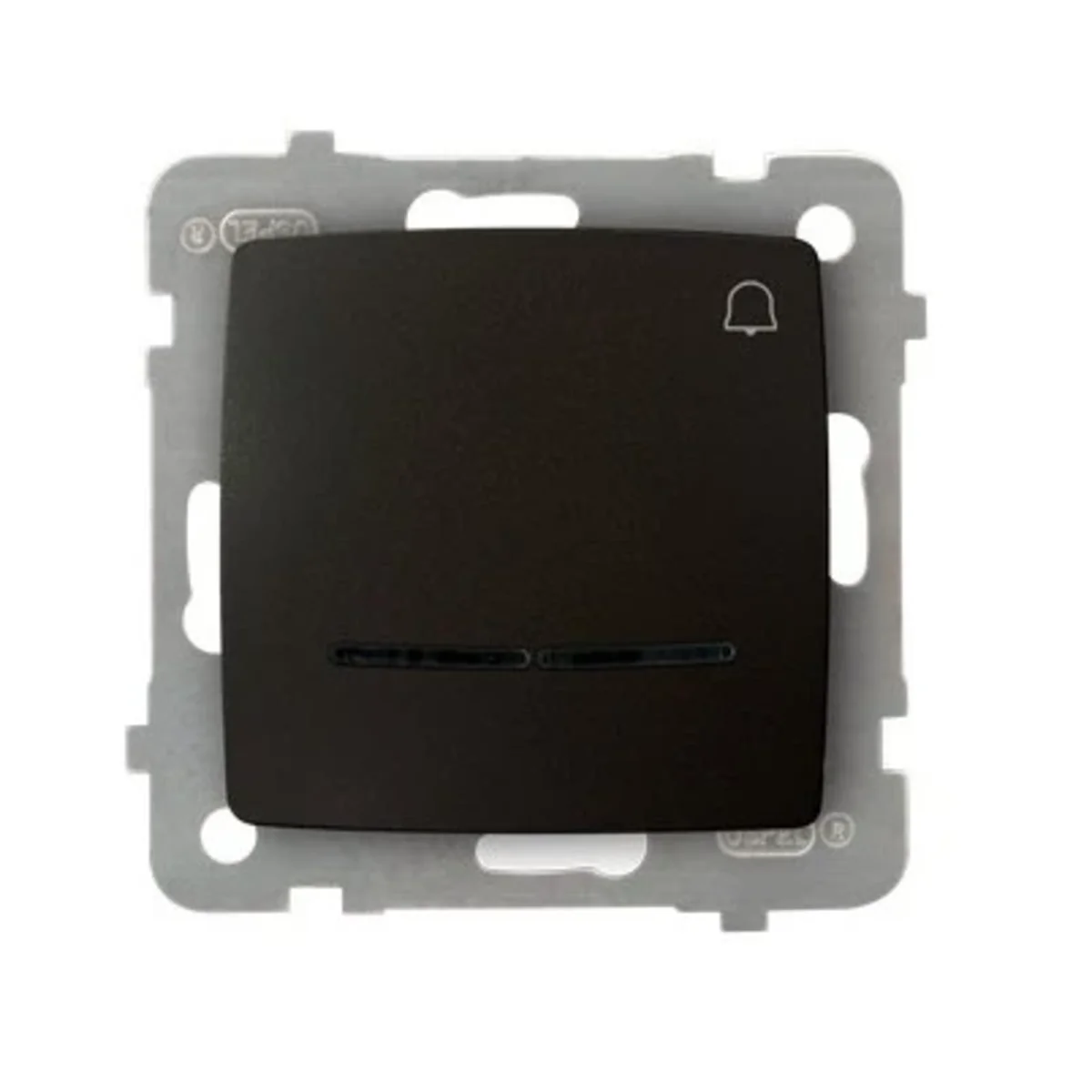

KARO "bell" closing switch with blue backlight, without frame ŁP-6SS/M/40

Index local:
MMZ150OSPE
Numéro de catalogue:
ŁP-6SS/M/40
Code EAN:
5907577455880
Producteur: OSPEL
Depth [mm]: 42
Number of keys: 1
Color: Brown
Prix:
33,32 zł
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 2 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Short-circuit switch "bell" with backlight, series Karo, from the manufacturer Ospel. Product catalog number it ŁP-6SS/M/40. Chocolate metallic color.



FEATURES

  • To be equipped with a frame.
  • "Bell" symbol on the key.
  • Backlight - LTS lamp.
  • To obtain IP44 splash-proof class, use a sealing kit for switches.



SERIES DESCRIPTION

The Karo collection at first glance brings to mind mainly classic shapes and a simple form, where the regular line has been broken with delicate convexities.  It includes products whose expressive shapes of mechanisms contrast with the subtle lines of the frames. The Karo series is a balanced proposition for people who want the accessories in their home to be a discreet wall decoration.

The decisive character and dynamics in the interior will be introduced by frames in fashionable, intense colors. Thanks to min, bold design trends will be present in your home.

Données techniques

  • Depth [mm]
    42
  • Color
    Brown
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    DIAMOND
  • Symbol
    Bell
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Chocolate metallic
  • Mounting depth [mm]
    25
  • Variant
    Bell
  • Exact material
    Plastic Metal
  • Backlight color
    Blue
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    71
  • Version
    Confident
  • Surface protection
    varnishing
  • Backlight
    Yes
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • Backlight type
    LTS
  • PKWIU
    27.33.11.0

Autres données techniques

  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    8019
  • Illumination
    Yes
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device width
    75 mm
  • Device depth
    42 mm
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    Yes
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Bronze
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    75 mm
  • Built-in depth
    25 mm

Détails du fabricant

  • Producteur
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Emballage en vrac

Une sorte de paquet Pudełko
Quantité 5 pcs.
Largeur (m) 0,140
Longueur (m) 0,162
Profondeur (m) 0,090
