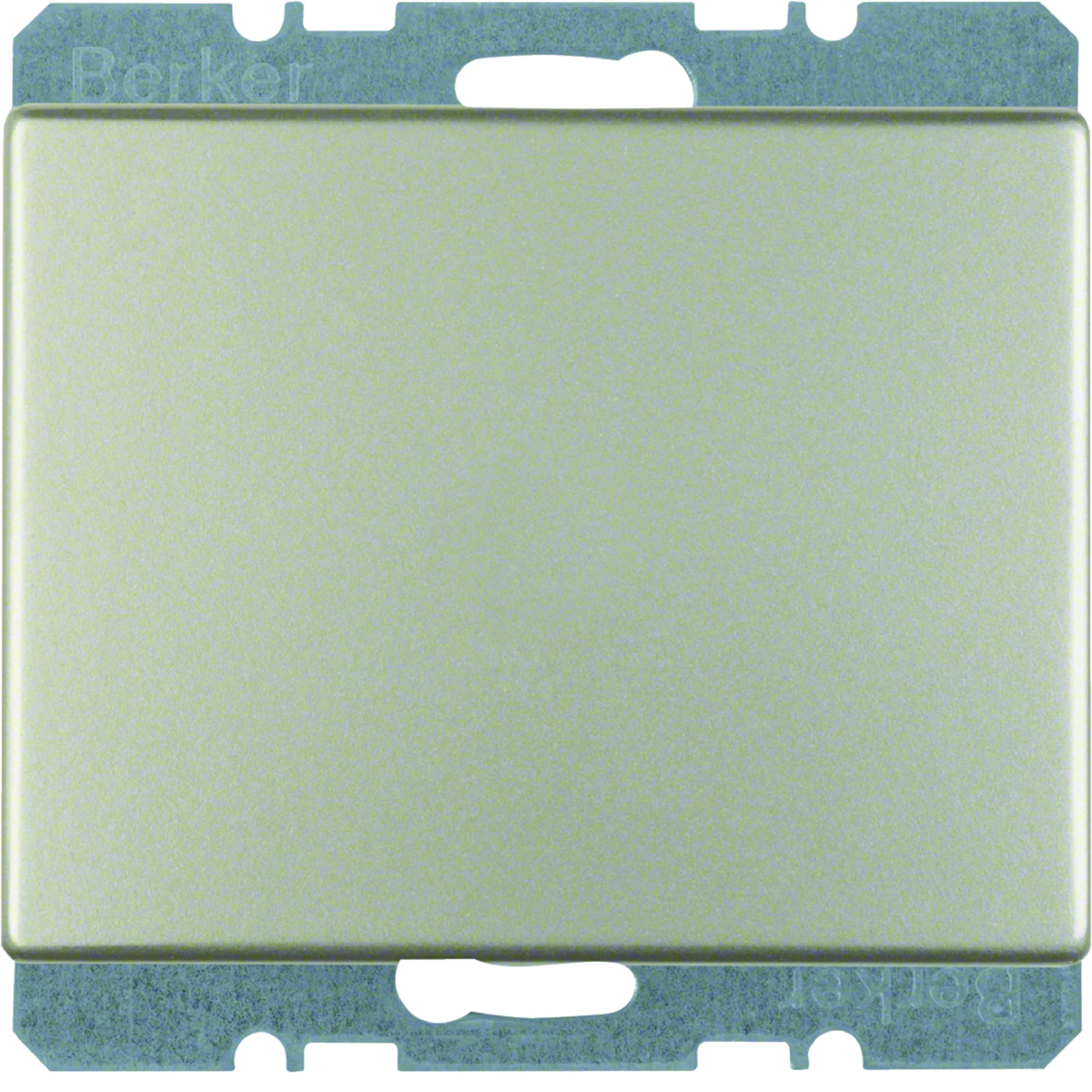

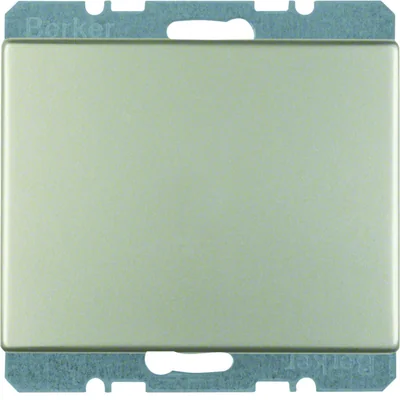

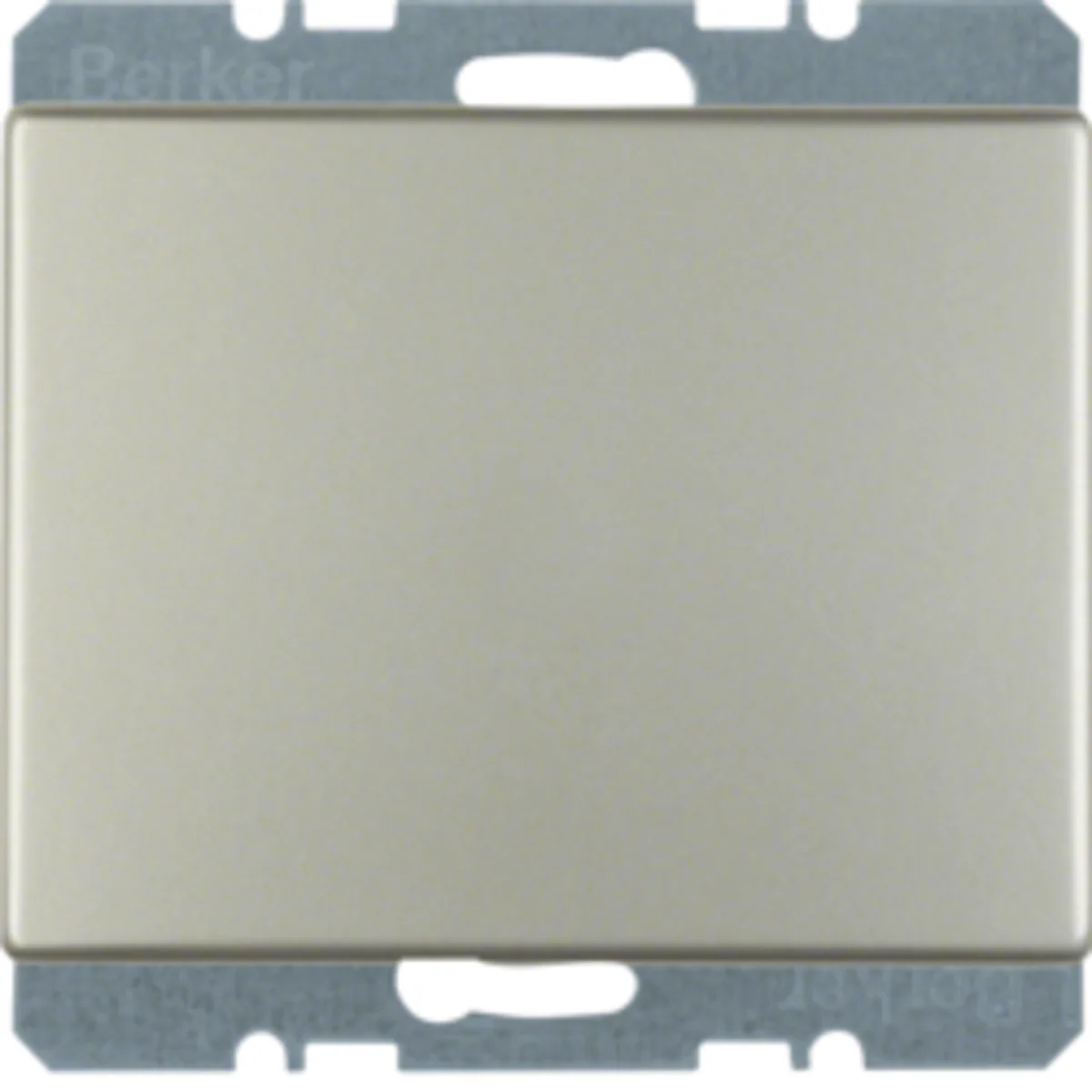

K.5 Stainless steel end cap with front plate 10457004

Lokaler Index:
MAZ023BERK
Katalognummer:
10457004
EAN-Code:
4011334281337
Hersteller: BERKER
Color: Silver
Family: K.5
Level of security: IP20
Preis:
22,30 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
bis zu 4 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

End cap with a faceplate, from Berker K.5 - a series that, thanks to its timeless design, fits into minimalist interiors.

Features:

  • Only for screw fixing through support plate,
  • Push-in center piece,
  • With mounting chamber relay,
  • Without spreading claws,
  • Surface color: stainless steel, matt metal.

Technische Daten

  • Color
    Silver
  • Level of security
    IP20
  • PKWIU
    27.12.40.0
  • Family
    K.5
  • Accurate color
    steel

Weitere technische Daten

  • Assembly arrangement
    Basic element with central cover plate
  • Support ring
    Yes
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Stainless steel
  • Surface protection
    Other
  • Colour
    Stainless steel
  • Transparent
    No
  • With buses/couplings
    No
  • Luster terminal
    No
  • Device width
    71 mm
  • Device depth
    7 mm
  • Utilization
    Blind cap
  • With dust cover
    No
  • Imprintable label
    Without indication field
  • Material
    Metal
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9022
  • Type of fastening
    Mounting with claw and screw
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP44
  • Device height
    71 mm
  • Min. depth of built-in installation box
    37 mm

Hersteller-Details

Großpackungen

Eine Art Paket Karton Pakiet Paleta
Menge 20 stk. 100 stk. 3200 stk.
Gewicht (kg) 1,300 6,500 208,000
Breite (m) 0,160 0,300 0,800
Länge (m) 0,070 0,220 1,050
Tiefe (m) 0,220 0,400 1,200
