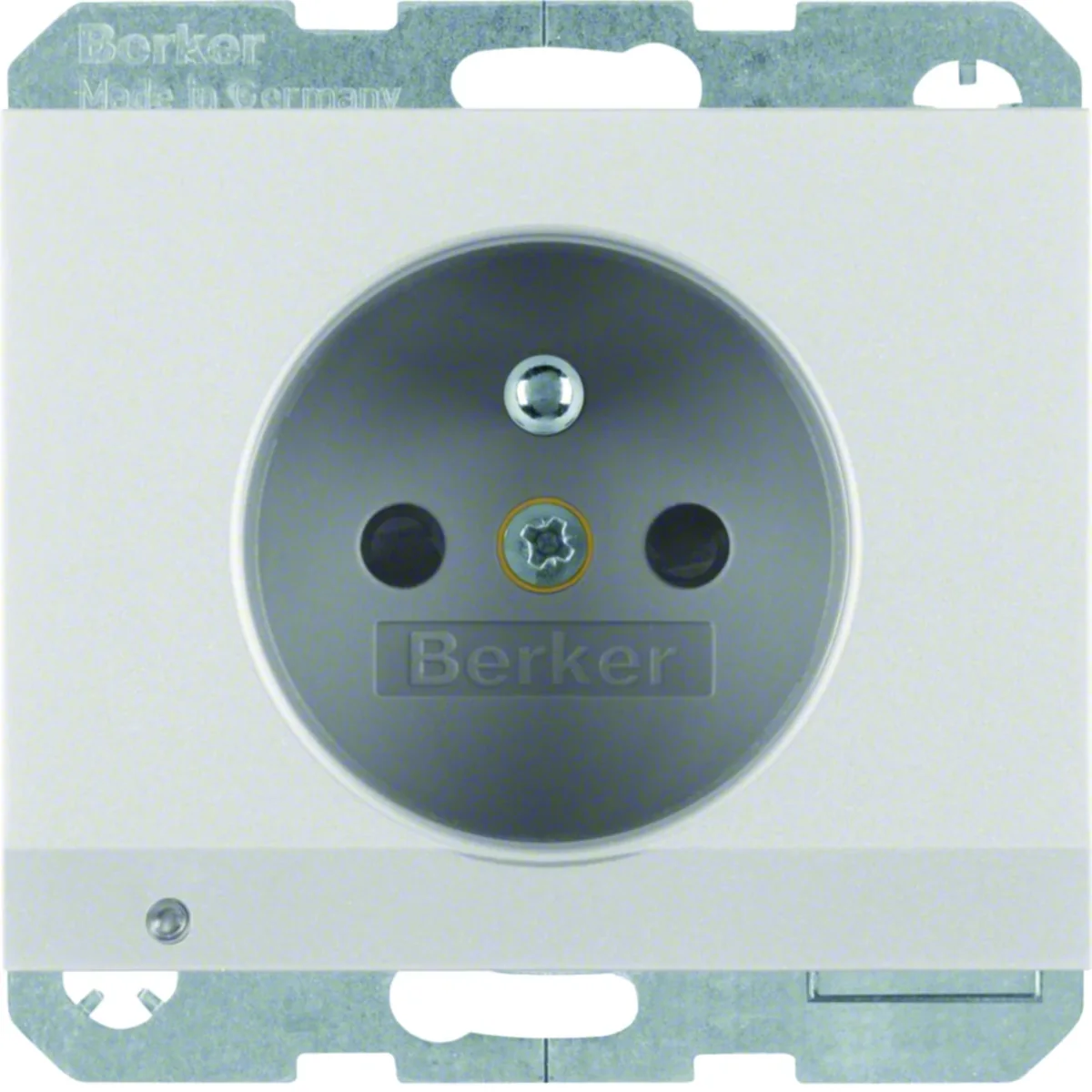

K.5 Socket with grounding and orientation LED aluminum backlight 6765107003
Índice local:
MEE167BERK
Número de catálogo:
6765107003
Código EAN:
4011334384304
Precio:
394,07 zł
gross / uds.
(IVA incluido 23%)
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Pregunta por el producto
Descripción del producto
Datos técnicos
Detalles del fabricante
Empaquetado a granel
Archivos para descargar
Descripción del producto
Socket with grounding and LED orientation illumination, from the Berker K.5 series, i.e. simple closed forms made of high-quality metal, which will work in modern interiors.
- 2-pole
- integrated light intensity sensor that turns on the orientation light at dusk, and turns it off when there is sufficient light
- long life LEDs
- white LED light
Datos técnicos
-
Number of sockets1
-
ShapeRectangular
-
Input power [W]0.25
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyK.5
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Surface finishmatte
-
BacklightYes
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
-
ColorSilver
-
MaterialPlastic
-
FixingExpanding claws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
GroundHurt
-
Degree of mechanical protectionIK05
-
Accurate colorAluminum
-
Mounting depth [mm]32
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialThermoplastic
Otros datos técnicos
-
ModelEarthing pin
-
Number of active contacts (round)2
-
Number of active contacts (square)0
-
Number of ports USB-A0
-
Number of modules (module system)1
-
Number of phases1
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourAluminium
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
Number of loop throughs1
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Device width71 mm
-
Compatible with Apple HomeKitNo
-
Compatible with Google AssistantNo
-
For heavy conditions according to VDENo
-
Protective contactRound
-
Number of active contacts (flat)0
-
With signal lampNo
-
Number of ports USB-C0
-
Number of socket outlets switchable0
-
Imprint/indicationNone
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)9006
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingYes
-
Fault current protectionNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
With loop through functionNo
-
With on/off switchNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Impact strengthIK05
-
Device height71 mm
-
Compatible with Amazon AlexaNo
-
IFTTT support availableNo
Detalles del fabricante
-
FabricanteBerker GmbH & Co. KG.
-
DirecciónDE 66440 Blieskastel Zum Gunterstal Niemcy
Empaquetado a granel
| una especie de paquete | Karton | Pakiet | Paleta |
| Cantidad | 10 uds. | 40 uds. | 1280 uds. |
| Peso (kg) | 1,078 | 4,753 | 172,099 |
| Ancho (m) | 0,160 | 0,300 | 0,800 |
| Longitud (m) | 0,060 | 0,220 | 1,050 |
| Profundidad (m) | 0,380 | 0,400 | 1,200 |
Archivos para descargar
