K.5 SCHUKO socket with aluminum overvoltage protection 41527103
local index:
MEE036BERK
Catalog No:
41527103
EAN code:
4011334378419
Price:
272,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

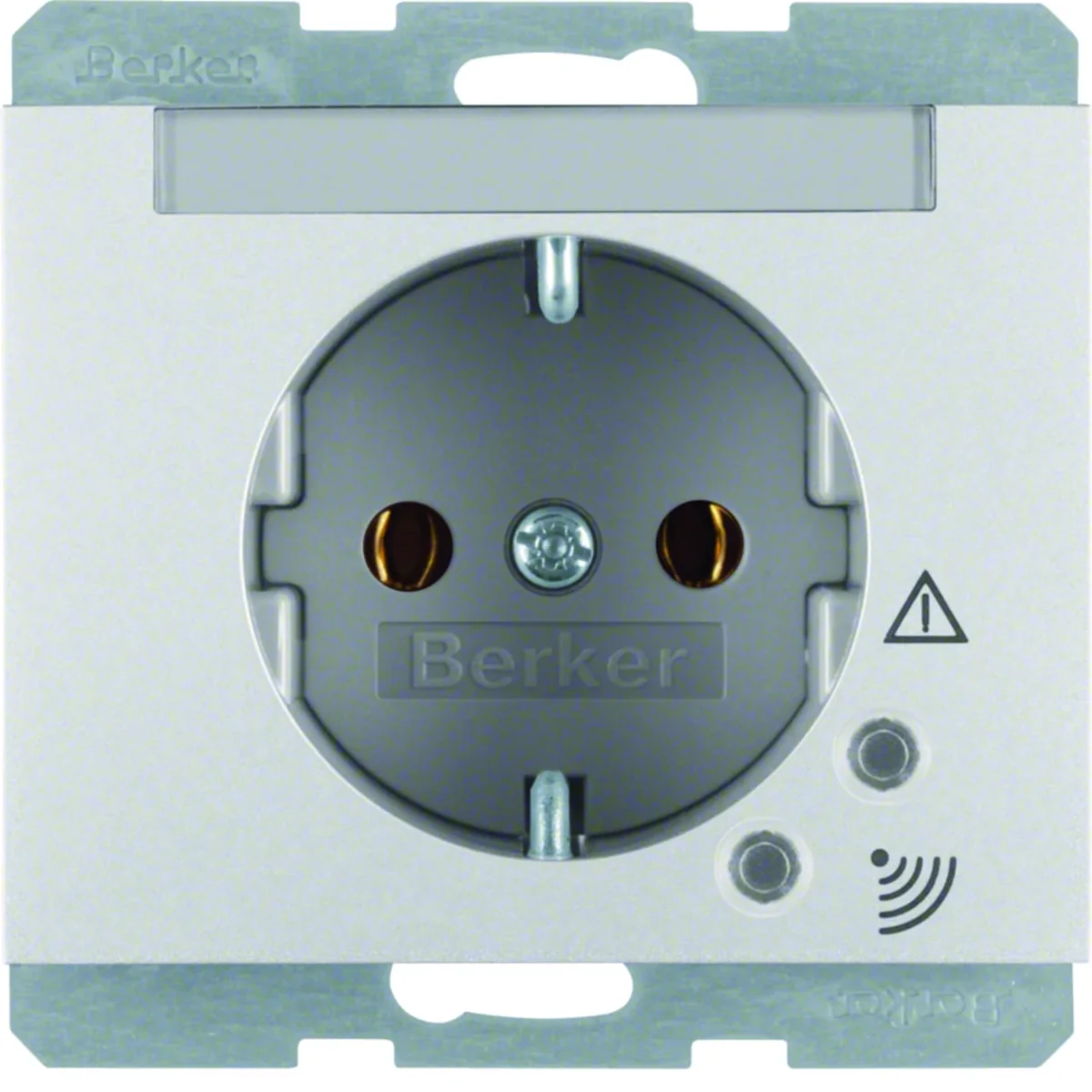

SCHUKO earthed socket, with overvoltage protection, with a description field, from the Berker K.5 series, i.e. simple forms enclosed in high-quality metal, which will work in modern interiors. With LED for activation/error.
Technical data
-
Number of sockets1
-
ShapeSquare
-
FixingExpanding claws
-
Rated voltage [V]230
-
Rated current [A]16
-
FamilyK.5
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Surface finishmatte
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemYes
-
Exact materialPlastic Metal
-
ColorSilver
-
MaterialPlastic Metal
-
InstallationFlush-mounted
-
Descriptive fieldYes
-
TypeElectric
-
Level of securityIP20
-
Groundschuko
-
Degree of mechanical protectionIK07
-
Accurate colorSnow white
-
Mounting depth [mm]32
-
StandardEuropean
-
On the DATA keyNO
-
Overvoltage protectionYes
-
PKWIU27.33.13.0
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionNo
-
ColourAluminium
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingYes
-
Over voltage protectionYes
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialOther
-
Surface protectionLacquered
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Impact strengthIK07
-
Device height71 mm
-
Protective contactYes
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of units1
-
Imprint/indicationOther
-
With hinged lidNo
-
Label space/information surfaceYes
-
RAL-number (similar)9006
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyOther
-
Type of fasteningMounting with claw
-
Halogen freeYes
-
Surface finishingMatt
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Device width71 mm
-
Device depth42 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 1152 pcs. |
| Weight (kg) | 0,125 | 0,150 | 5,665 | 201,270 |
| Width (m) | 0,071 | 0,084 | 0,300 | 0,800 |
| Length (m) | 0,046 | 0,070 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,085 | 0,400 | 1,200 |
