K.5 SCHUKO socket completely aluminum 47157003

local index:
MEE052BERK
Catalog No:
47157003
EAN code:
4011334378426

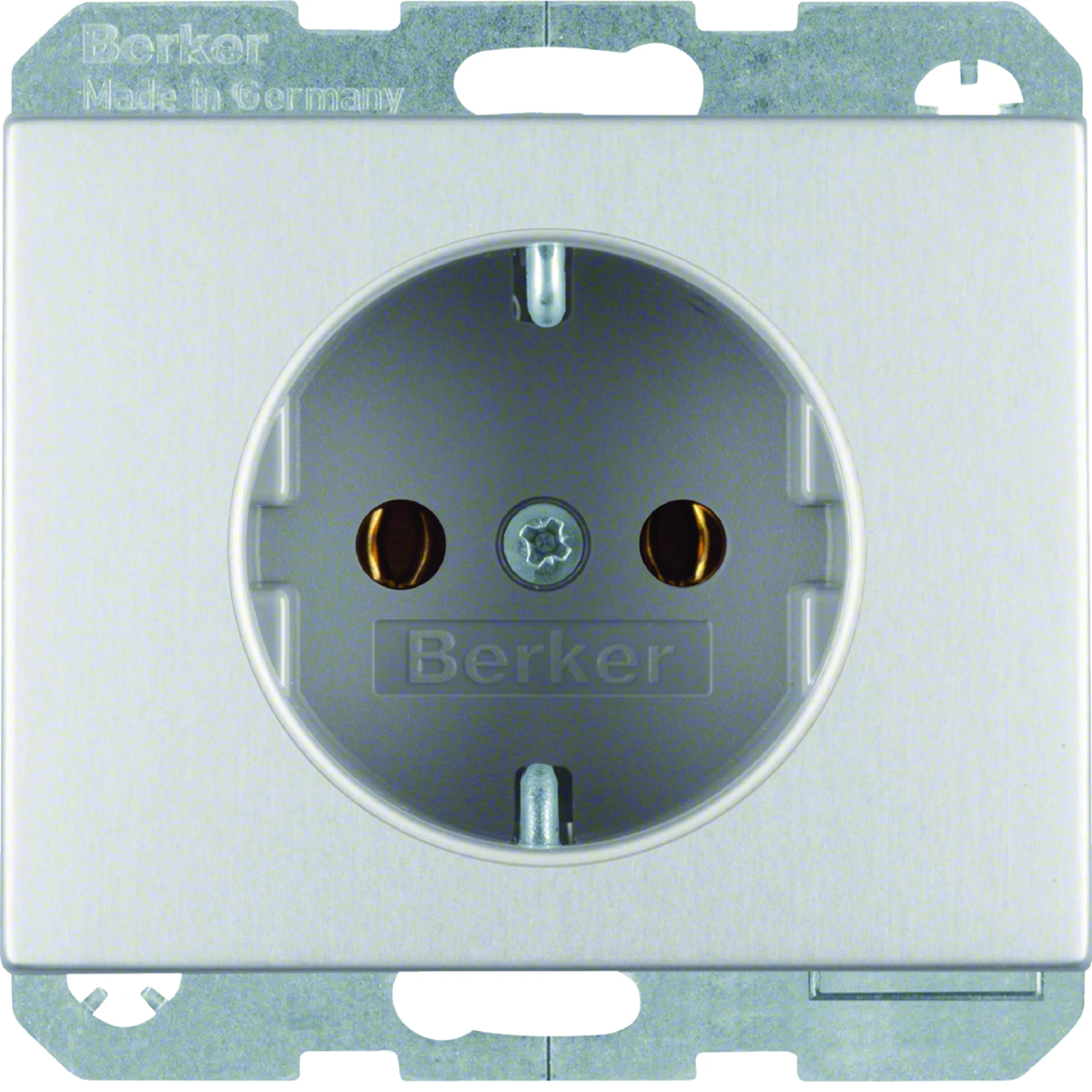

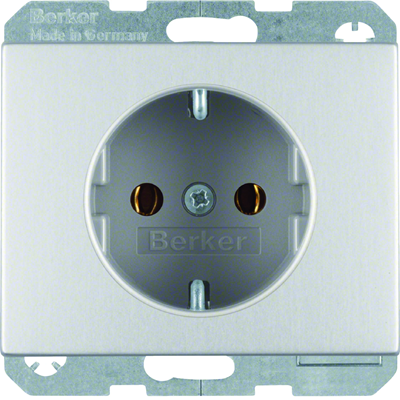

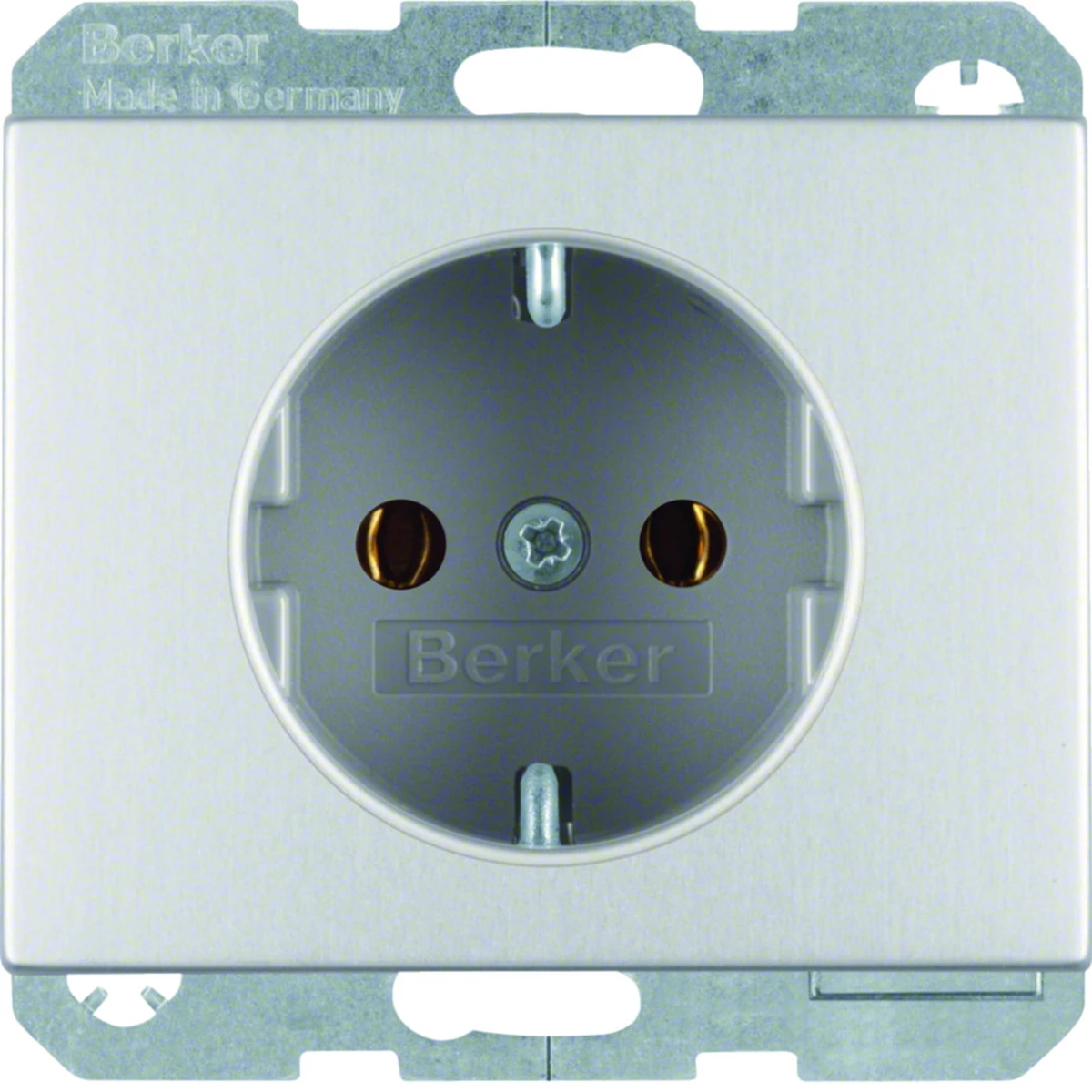

K.5 SCHUKO socket completely aluminum
K.5 SCHUKO socket completely aluminum

Click on the photo to enlarge

Manufacturer: BERKER
Number of sockets: 1
Color: Silver
Shape: Rectangular
See full description
Price:
25,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Socket with earthing SCHUKO complete from the Berker K.5 series, i.e. simple forms enclosed in high-quality metal that will work in modern interiors.

< p>

Connection:

  • with plug-in terminals.

Installation / Mounting:

  • with expansion lugs.

Technical data

  • Number of sockets
    1
  • Shape
    Rectangular
  • Fixing
    Expanding claws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    schuko
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threadless
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Color
    Silver
  • Material
    Metal
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    K.5
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK07
  • Accurate color
    Aluminum
  • Mounting depth [mm]
    32
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Aluminum

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    No
  • Colour
    Aluminium
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Metal
  • Surface protection
    Anodised
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK07
  • Device height
    71 mm
  • Min. depth of built-in installation box
    31 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of units
    1
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9006
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw
  • Halogen free
    No
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    42 mm

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 10 pcs. 40 pcs. 1280 pcs.
Weight (kg) 0,870 3,480 111,360
Width (m) 0,160 0,300 0,800
Length (m) 0,060 0,220 1,050
Depth (m) 0,380 0,400 1,200
