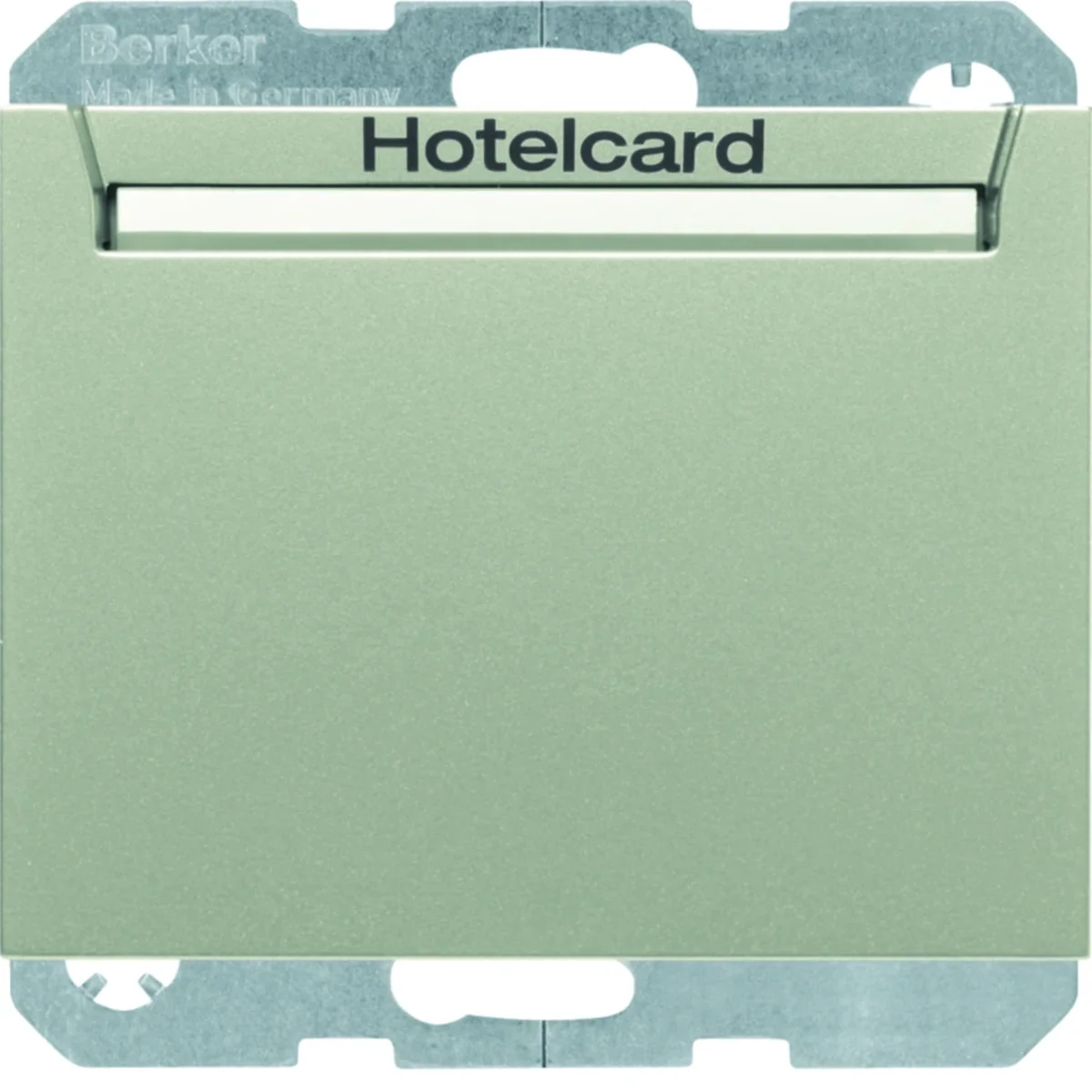

K.5 Relay switch for hotel card, stainless steel 16417114
local index:
MMH013BERK
Catalog No:
16417114
EAN code:
4011334404842
Price:
93,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Relay switch for the hotel card from the K.5 series, from the manufacturer Berker. Product part number is 16417114.
FEATURES
- 1-pole. < li>Inductive load at cos φ = 0.6: max. 6 A.
- Power:
- Conventional transformers: 1500 VA.
- Electronic transformers: 1500 W.
- Input power : < 0.2W.
- Card width: max. 55 mm.
- Card thickness: 0.8…1.2 mm.
- Fluorescent bulb control:
- Compact fluorescent lamps: 500 W.
- Power of fluorescent lamps in a dual system: 1500 W.
- Incandescent lamp control:
- Incandescent lamps and 230V halogen lamps: 1500W.
- Blue LED backlight when hotel card is not inserted.
- Screw terminals (max.) : 2 x 2.5 mm².
- Delay time adjustable in steps: 0, 15, 30, 60 s.
- With potentiometer for stepwise adjustment of delay time
- For connection with backlight.
- With dry contact.
- With “Hotelcard”.
Technical data
-
Depth [mm]58.6
-
ColorSilver
-
MaterialMetal
-
Overprinthotelcard
-
Shutdown delay [s]0 15 30 60
-
TypeHotel
-
Level of securityIP20
-
TypeRecessed Surface-mounted
-
Surface protectionvarnishing
-
Accurate colorStainless steel
-
Mounting depth [mm]32
-
For the frame systemYes
-
Backlight typeLED
-
PKWIU27.33.11.0
-
Number of keyshotel card
-
ShapeSquare
-
FixingExpanding claws
-
Rated voltage [V]230
-
Rated current [A]10
-
FamilyK.5
-
Width [mm]71
-
Height [mm]71
-
Surface finishmatte
-
BacklightYes
-
Terminal typeThreaded
-
Exact materialstainless steel
-
Backlight colorBlue
Other technical data
-
Assembly arrangementBasic element with central cover plate
-
Method of operationHotel card
-
Nominal voltage230 V
-
With lightingYes
-
Feedback-signal contactNo
-
Type of fasteningMounting with claw
-
Material qualityOther
-
Anti-bacterial treatmentNo
-
Surface finishingMatt
-
RAL-number (similar)9022
-
Label space/information surfaceNo
-
Suitable for degree of protection (IP)IP20
-
Device height71 mm
-
Min. depth of built-in installation box35 mm
-
ModelOther
-
Number of poles1
-
Rated current10 A
-
With signal lampYes
-
Mounting methodFlush-mounted
-
MaterialOther
-
Halogen freeYes
-
Surface protectionLacquered
-
ColourStainless steel
-
TransparentNo
-
ImprintOther
-
Device width71 mm
-
Device depth58.6 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 1152 pcs. |
| Weight (kg) | 0,131 | 0,143 | 5,588 | 203,816 |
| Width (m) | 0,071 | 0,085 | 0,300 | 0,800 |
| Length (m) | 0,080 | 0,070 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,085 | 0,400 | 1,200 |
