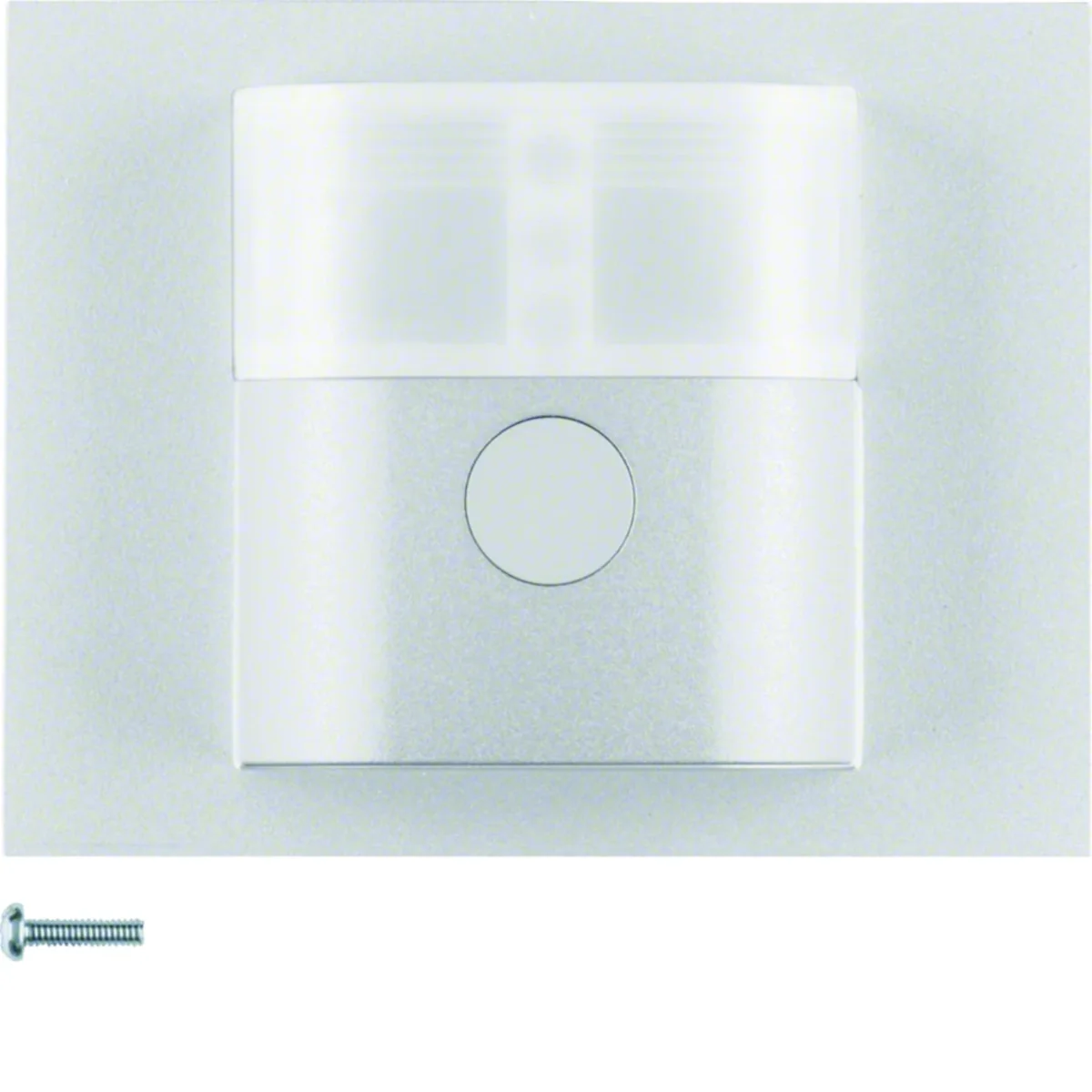

Name: K.5 IR attachment of the comfort motion sensor 2.2m, lacquered aluminum
Brand: BERKER
SKU: MAP409BERK
Price: 151.24 PLN

IR attachment of the motion sensor comfort from the Berker K.5 series, i.e. simple forms enclosed in high-quality metal, which will work well in modern interiors. mounting height is 2.2 m. Product catalog number is 85342277.

Features:

microprocessor operation control
pulse operation with idle time (e.g. for stair lighting installations/with pulse switching)
function of programming the lighting intensity level activated by pressing the button
with button locków
function “party” activated for 2 hours
with memory function to simulate presence

Controls and indicators:

with on/off/automatic button

LED control:

with red/green operation and status LEDs /orange
cap and mechanism compatibility LED indicator

Detection angle [°]

45-90
Shape

Rectangular
Detection field

8x12
Family

K.5
Surface protection

varnishing
Accurate color

Aluminum
Operation brightness level [%]

10 - 100
Lateral range [m]

≈ 6
Delay time, adjustable

≈ 10 s - 30 min
PKWIU

27.40.30.0

Color

Silver
Installation

Flush-mounted
Type

For the motion sensor
Level of security

IP20
Operating temperature range [°C]

from -5 to 45
Number of detection planes

3
Relative humidity (no condensation) [%]

0 - 65 (non-condensing)
Straight range [m]

≈ 8
For modular equipment

Not applicable

Other technical data

Model

Movement sensor
Constant light control

No
Networkable

Yes
Creep-under protection

Yes
Max. reach sideways

6 m
Diameter reach on floor

0 m
Response value luminosity adjustable

Yes
Dim function with dimmer basic element

Yes
Staircase light controller

Yes
Material quality

Thermoplastic
Suitable for degree of protection (IP)

IP20
Min. switch-on time

10 s
Switch-off delay self-learning

No
Colour

Aluminium

Mounting method

Flush-mounted
HVAC-control

Yes
Suitable for wireless transmission

Yes
Mounting height

2.2 m
Max. reach frontally

8 m
Response value sensitivity adjustable

Yes
Teach-function for response value luminosity

Yes
Animal zone

No
Material

Plastic
Halogen free

Yes
Operation mode switch

Yes
Max. duty cycle

30 min
Detection angle horizontal

45 ... 90 °
RAL-number (similar)

9006

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,069	0,094	3,649	136,758
Width (m)	0,055	0,084	0,300	0,800
Length (m)	0,043	0,070	0,225	1,050
Depth (m)	0,070	0,085	0,400	1,200
