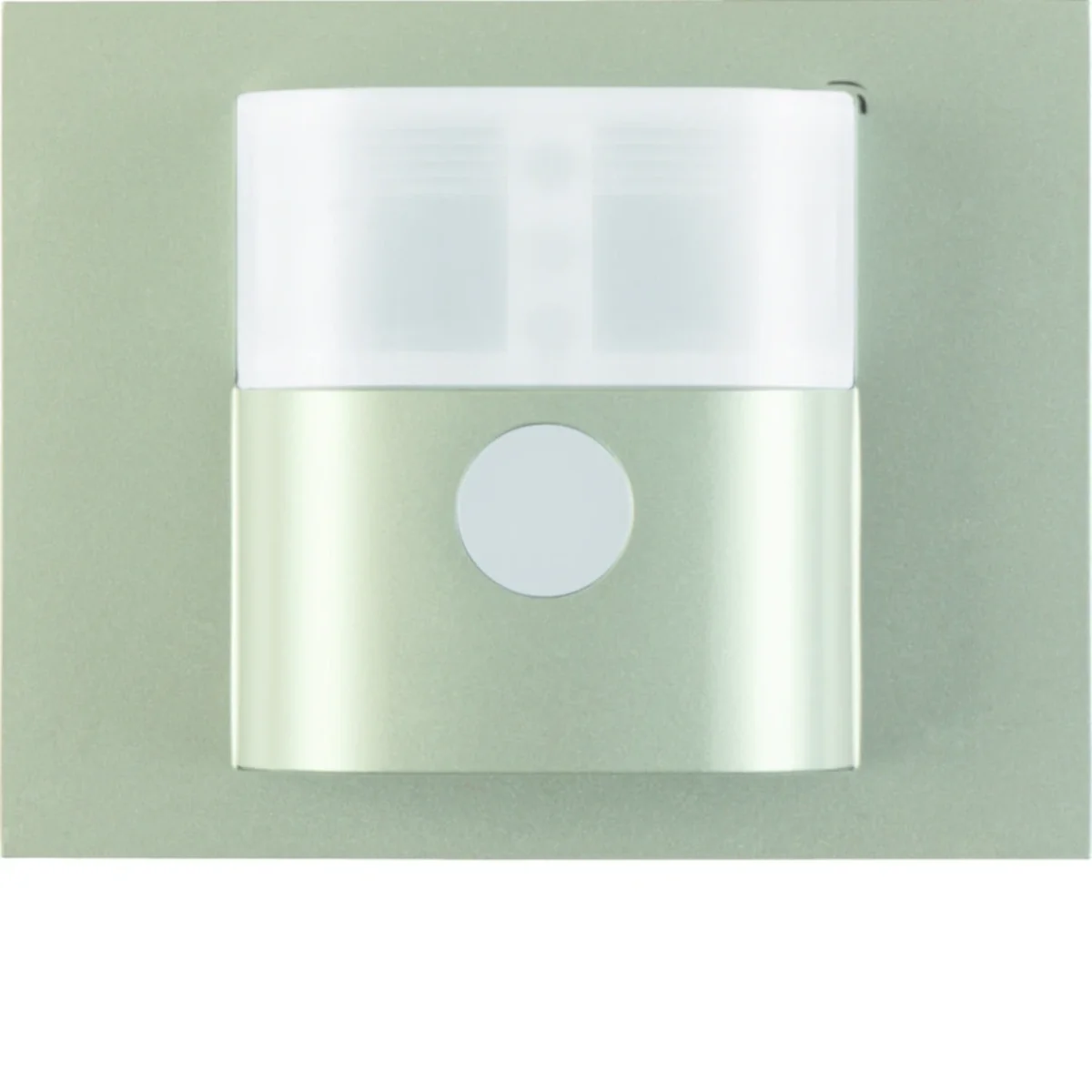

K.5 IR attachment for comfort motion sensor 1.1m, varnished stainless steel 85341273
local index:
MAP380BERK
Catalog No:
85341273
EAN code:
4011334373896
Price:
151,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
IR motion sensor cap comfort from the Berker K.5 series, i.e. simple forms enclosed in high-quality metal that will work in modern interiors.
< p> Functions:- microprocessor control
- pulse operation with idle time (e.g. for stair lighting installations/with pulse switching)
- the function of programming the activation level of illumination activated by means of a button
- with a button lock
- the "party" function activated for 2 hours
- with a memory function to simulate presence
Controls and indicators:
- with on/off/automatic button
LED control:
- with red/green/orange operation and status LEDs
- socket compatibility LED indicator and mechanism
Technical data
-
ColorSilver
-
InstallationFlush-mounted
-
TypeFor the motion sensor
-
Level of securityIP20
-
Operating temperature range [°C]from -5 to 45
-
Operation brightness level [%]10 - 100
-
Lateral range [m]≈ 8
-
For modular equipmentNot applicable
-
ShapeRectangular
-
Detection field12x16
-
FamilyK.5
-
Surface protectionvarnishing
-
Accurate colorStainless steel
-
Relative humidity (no condensation) [%]0 - 65 (non-condensing)
-
Straight range [m]≈ 12
-
PKWIU27.40.30.0
Other technical data
-
ModelMovement sensor
-
Constant light controlNo
-
NetworkableYes
-
Creep-under protectionNo
-
Max. reach sideways8 m
-
Diameter reach on floor0 m
-
Response value luminosity adjustableYes
-
Dim function with dimmer basic elementYes
-
Staircase light controllerYes
-
Material qualityThermoplastic
-
Suitable for degree of protection (IP)IP20
-
Min. switch-on time10 s
-
Switch-off delay self-learningNo
-
ColourStainless steel
-
Mounting methodFlush-mounted
-
HVAC-controlYes
-
Suitable for wireless transmissionYes
-
Mounting height1.1 m
-
Max. reach frontally12 m
-
Response value sensitivity adjustableYes
-
Teach-function for response value luminosityYes
-
Animal zoneNo
-
MaterialPlastic
-
Halogen freeNo
-
Operation mode switchYes
-
Max. duty cycle30 min
-
Detection angle horizontal45 ... 90 °
-
RAL-number (similar)9022
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 1152 pcs. |
| Weight (kg) | 0,067 | 0,110 | 3,960 | 126,720 |
| Width (m) | 0,055 | 0,090 | 0,300 | 0,800 |
| Length (m) | 0,043 | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,070 | 0,085 | 0,400 | 1,200 |
