K45/2 PCB with SAT (F) female socket 22.5x45mm + graphite gray insert K102C/14

Name: K45/2 PCB with SAT (F) female socket 22.5x45mm + graphite gray insert
Brand: KONTAKT-SIMON
SKU: MGA004KONT
Price: 13.22 PLN

local index:

MGA004KONT

Catalog No:

K102C/14

EAN code:

8426436046535

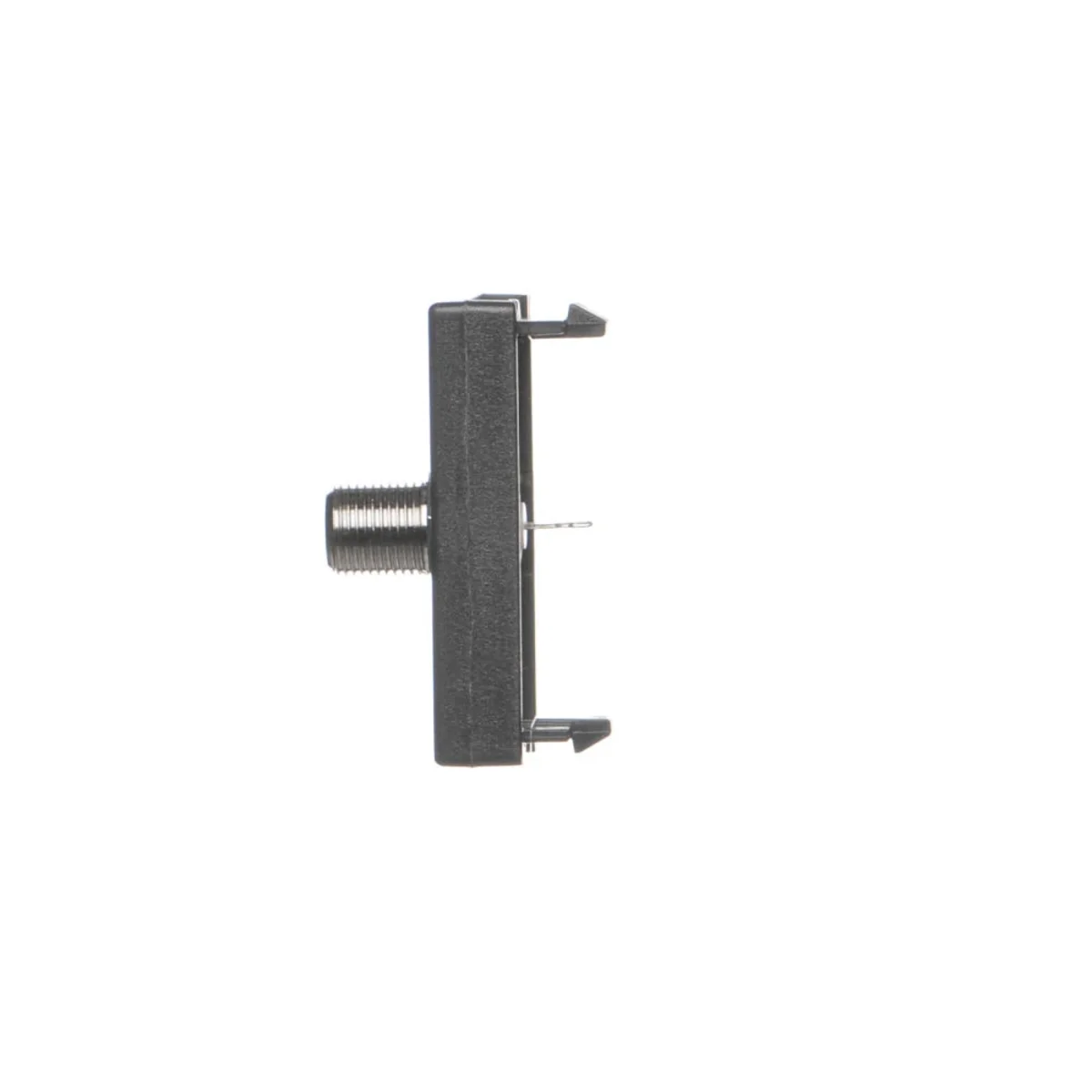

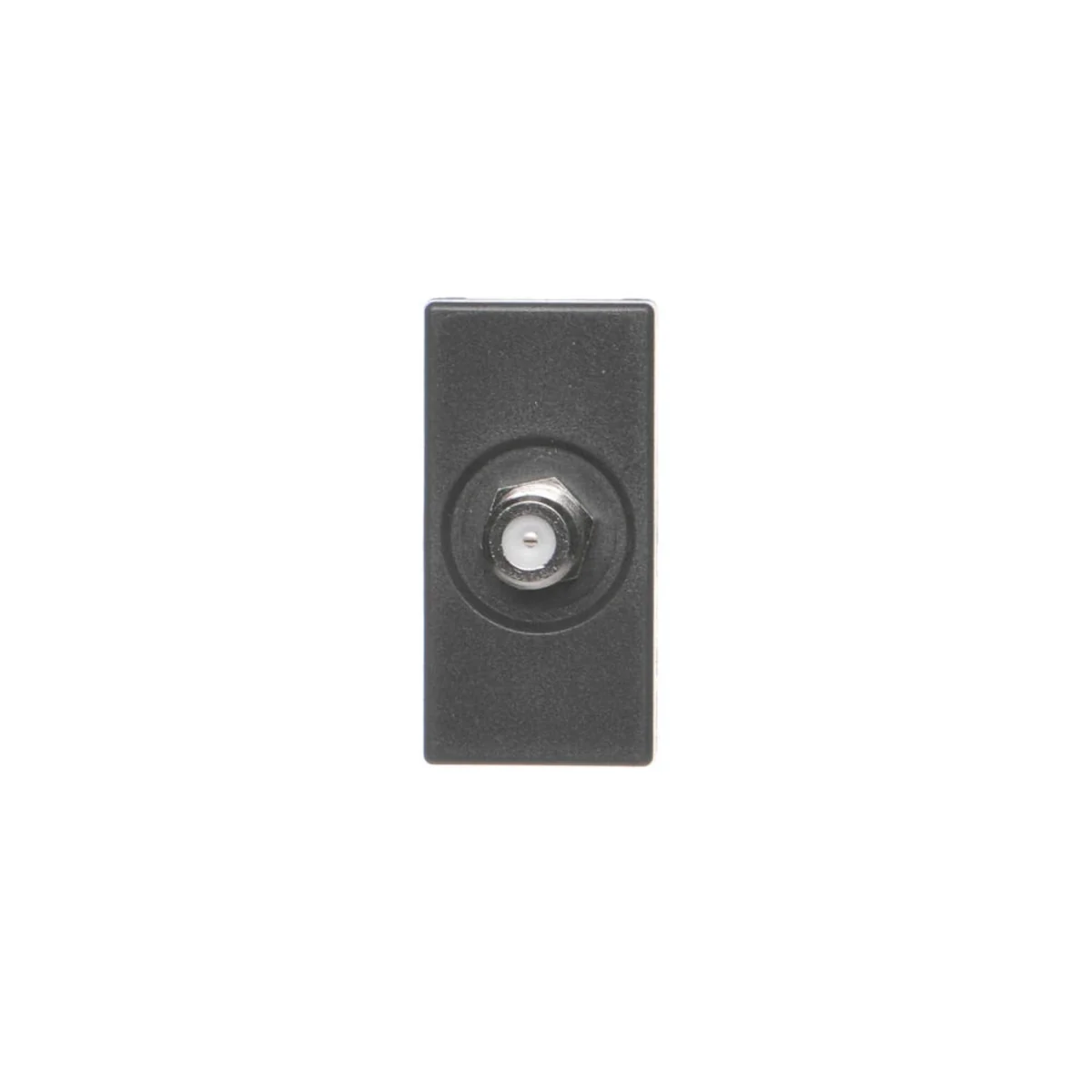

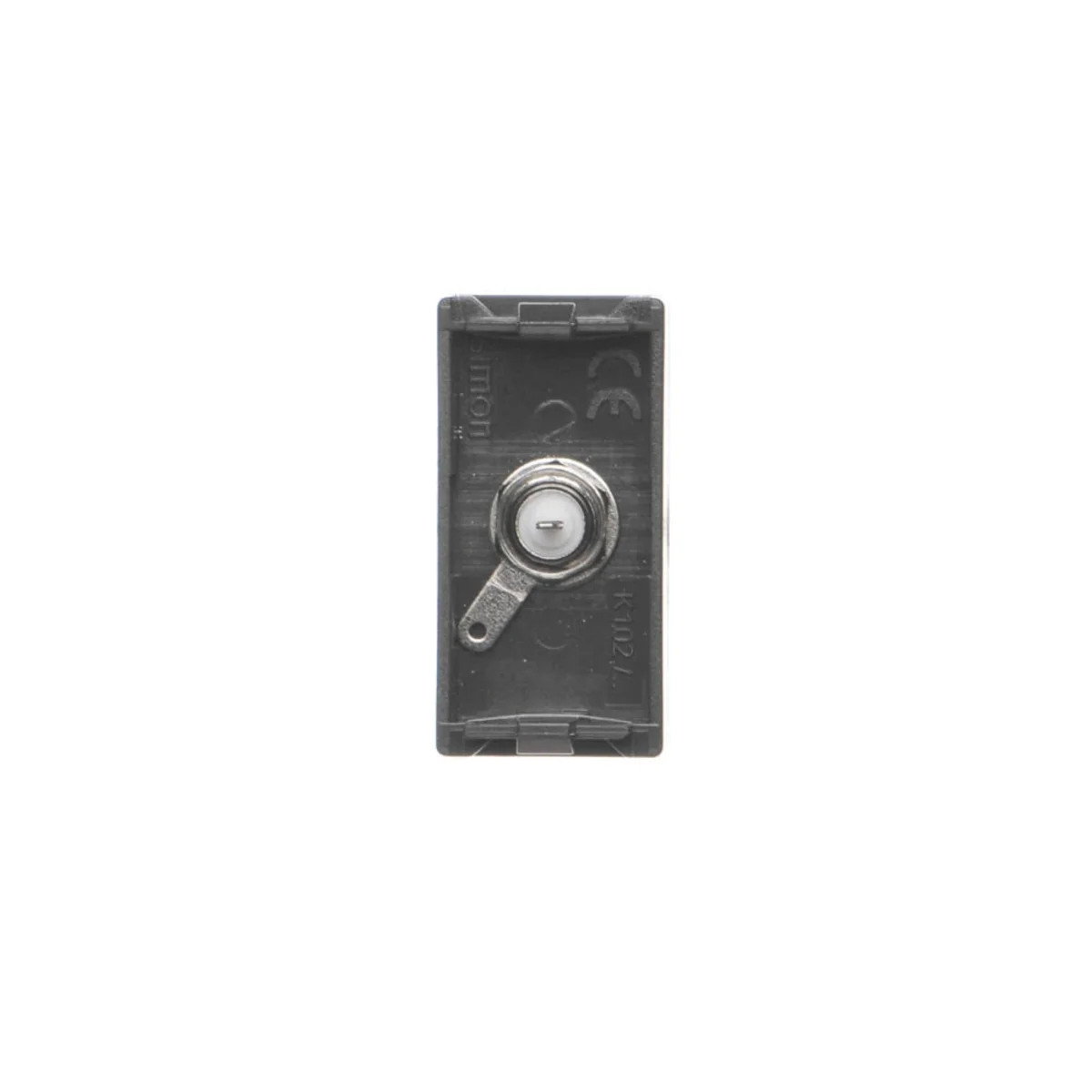

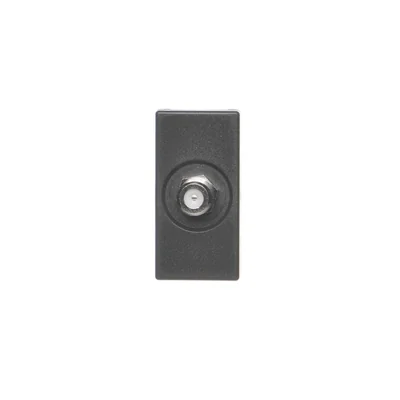

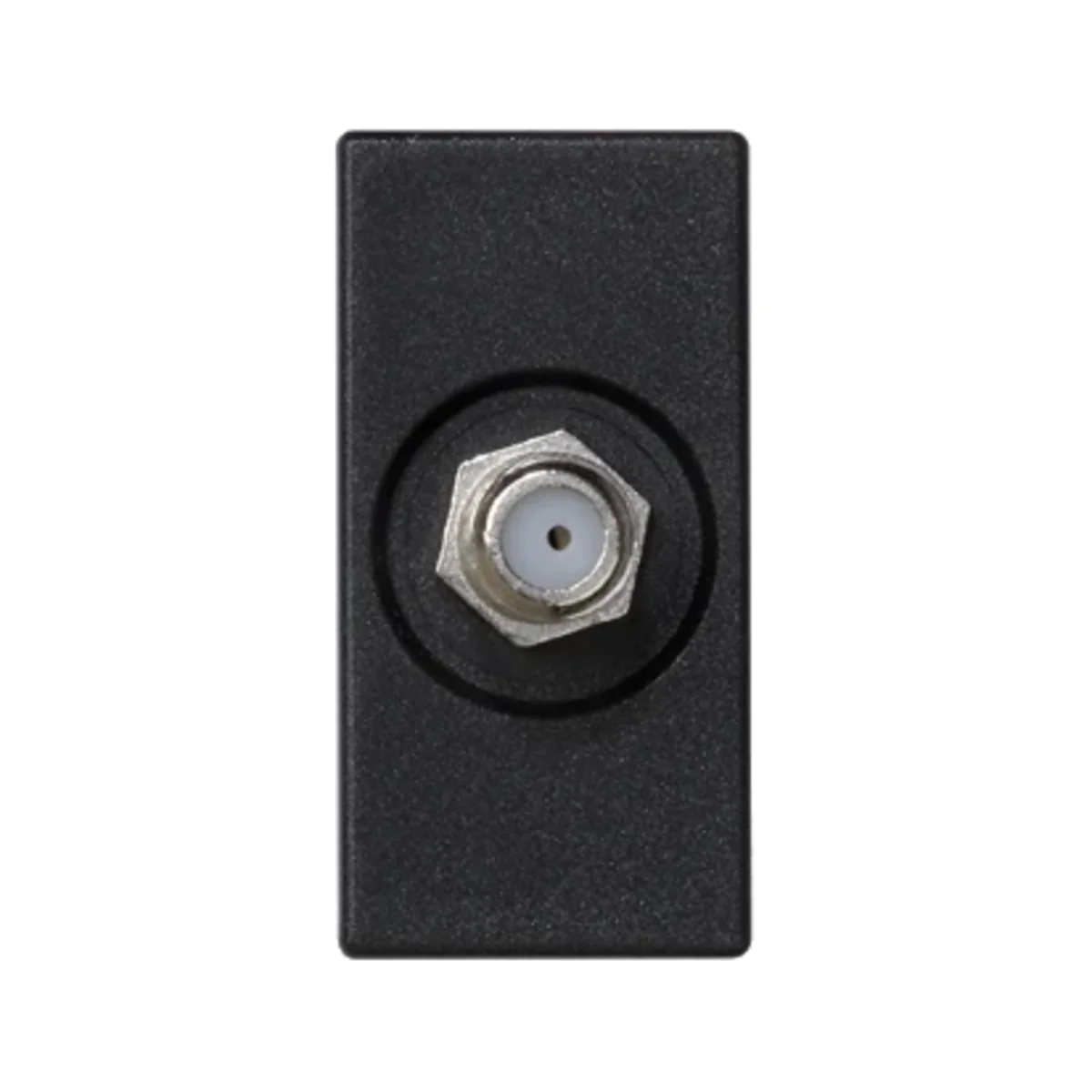

K45/2 PCB with SAT (F) female socket 22.5x45mm + graphite gray insert

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 29.5

Number of sockets: 1

See full description

Price:

13,22 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Antenna socket in K45 standard, from the manufacturer Contact Simon. The product catalog number is K102C/14.

FEATURES

SAT (F) female.

Complete product.

Color graphite gray.

1 module.
< li>Solderable.
Rating IP20.

Mounting dimensions 45 × 22.5 mm.

Mounting with clips.

SERIES DESCRIPTION

< strong>The antenna socket of the K45 standard has been designed so that it can be used in various installations, such as floor boxes, columns or installation ducts.

Technical data

Halogen free

Yes
Number of sockets

1
Color

Graphite
Material

Plastic
Type

Antenna
Level of security

IP20
Type

45x45
Surface protection

Natural
Accurate color

Gray graphite
Mounting direction

Vertical
F-type input

NO
PKWIU

27.33.13.0

Depth [mm]

29.5
Number of modules

1
Shape

Rectangular
Overprint

NO
Family

K45
Width [mm]

22.5
Height [mm]

45
Surface finish

matte
Backlight

NO
Variant

sat
For the frame system

Yes

Other technical data

Assembly arrangement

Basic element with central cover plate
Imprintable label

Without indication field
Surface protection

Untreated
Colour

Anthracite

Utilization

SAT
Material

Plastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,014	0,014	1,360
Width (m)	0,045	-	0,093
Length (m)	0,023	-	0,140
Depth (m)	0,030	-	0,070
