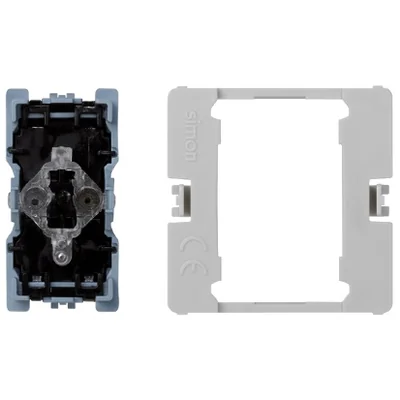

K45 universal switch (single, stair) 16A 230V K301
local index:
MOS001KONT
Catalog No:
K301
EAN code:
8426436046962
Price:
10,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

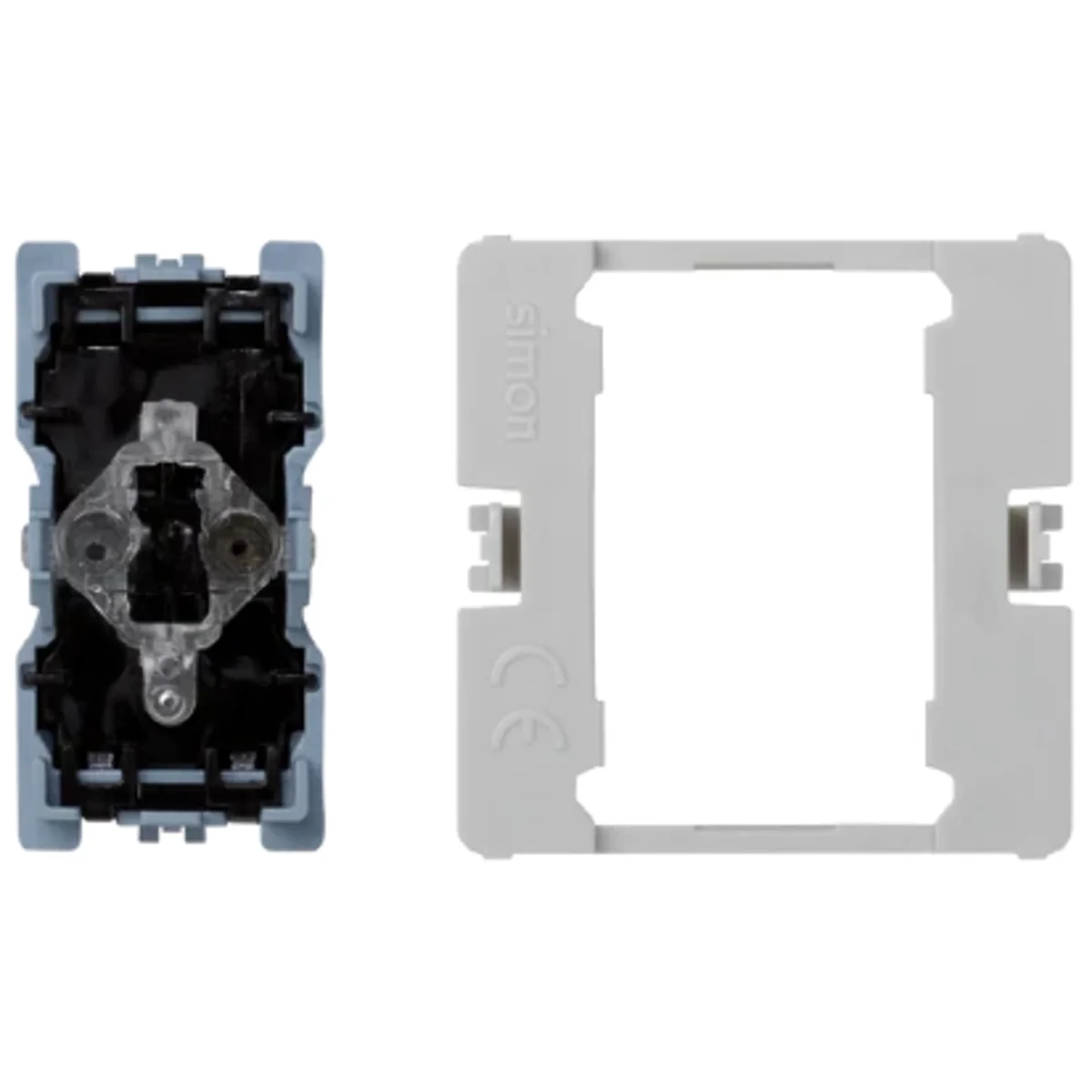

Universal connector (single, stair) standard K45, from the manufacturer Contact Simon. The product catalog number is K301.
FEATURES
- Quick connectors.
- Opportunity use of K45 45×45mm or 45×22.5mm switch.
- Latch mounting.
- Bistable switch.
- Rocker switch.
SERIES DESCRIPTION
The stair connector of the K45 standard has been designed so that could be used in various installations, such as floor boxes, columns or installation ducts.
Technical data
-
Halogen freeYes
-
Number of keys1
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeStairs Single
-
Level of securityIP20
-
Type45x45
-
BacklightNO
-
Terminal typeThreadless
-
PKWIU27.33.11.0
-
Depth [mm]34
-
ShapeRectangular
-
InstallationBuilt-in
-
Rated current [A]16
-
FamilyK45
-
Width [mm]22
-
Height [mm]45
-
Mounting depth [mm]29
-
For the frame systemYes
Other technical data
-
Wiring systemTwo-way switch
-
Assembly arrangementBasic element
-
MaterialPlastic
-
Nominal voltage250 V
-
Connection typePush-in clamp
-
Method of operationRocker/button
-
Mounting methodBuilt-in installation
-
Suitable for degree of protection (IP)IP20
-
Switching current for fluorescent lamps16 AX
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,028 | 0,028 | 0,280 |
| Width (m) | 0,045 | - | 0,047 |
| Length (m) | 0,022 | - | 0,047 |
| Depth (m) | 0,034 | - | 0,047 |
