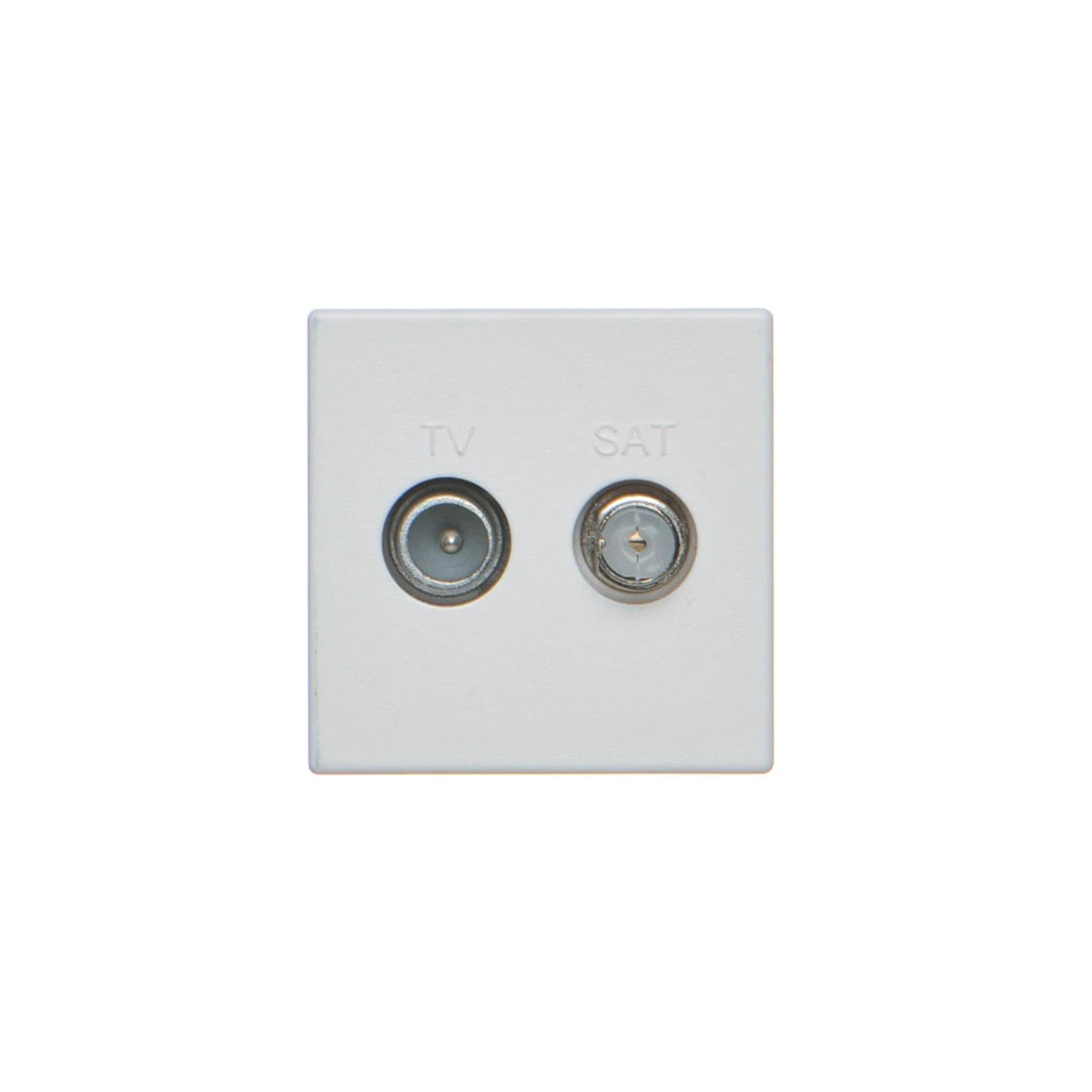

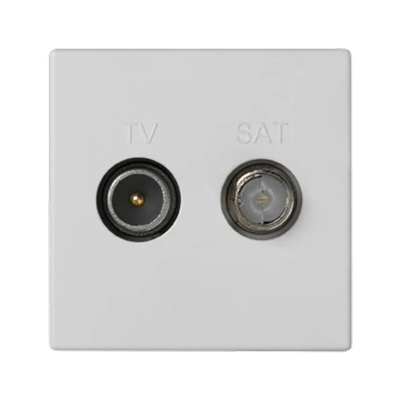

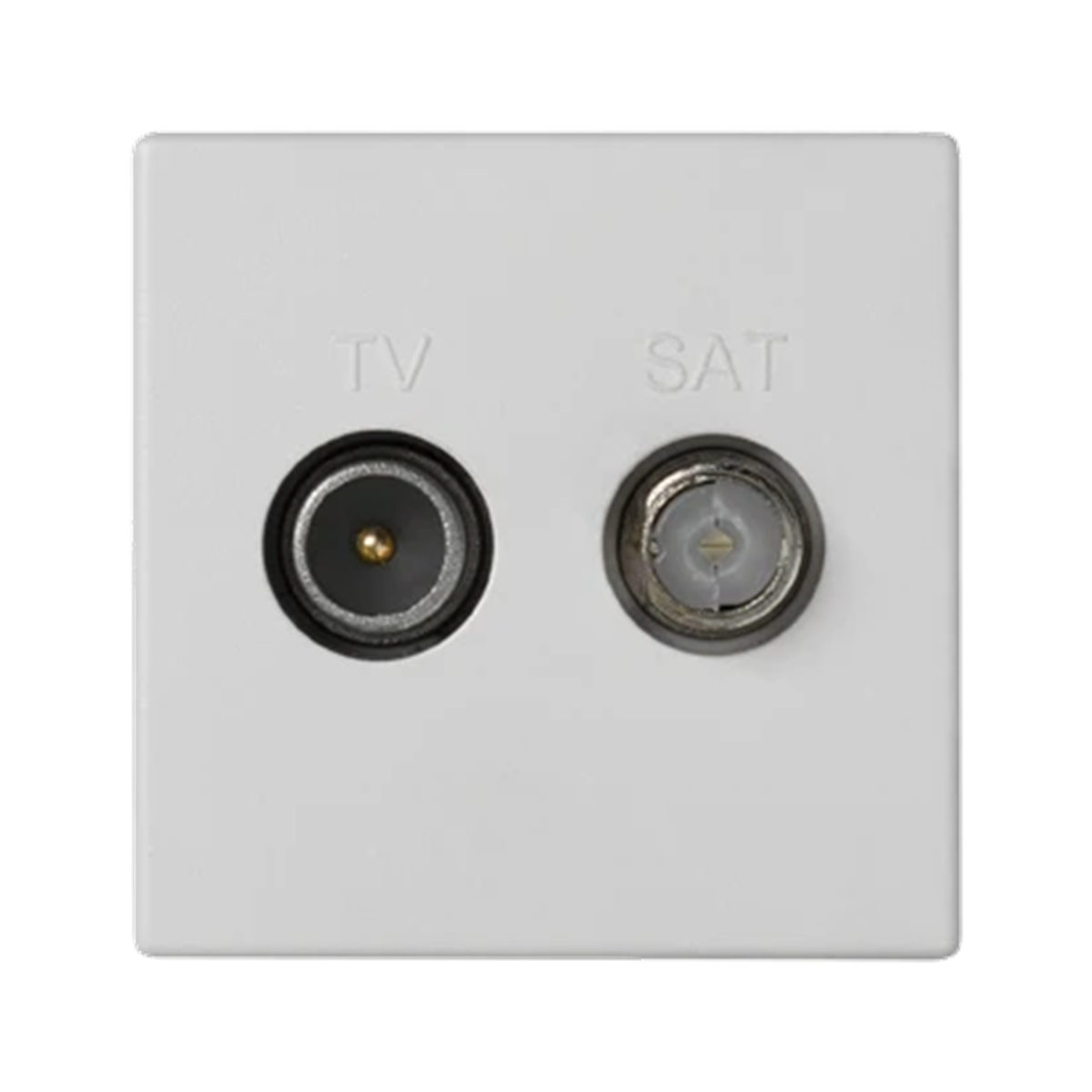

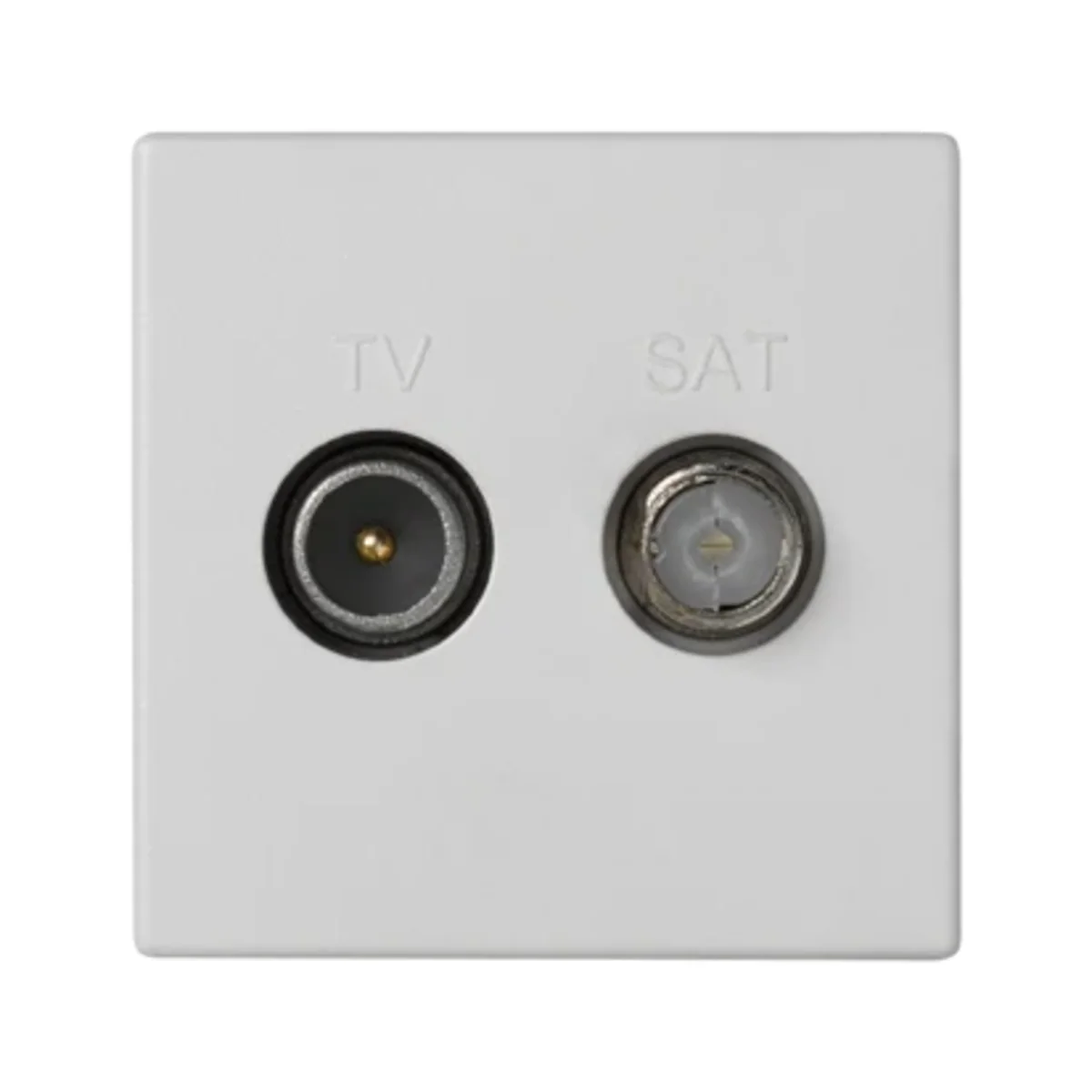

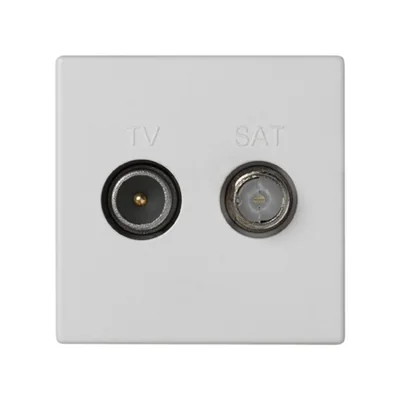

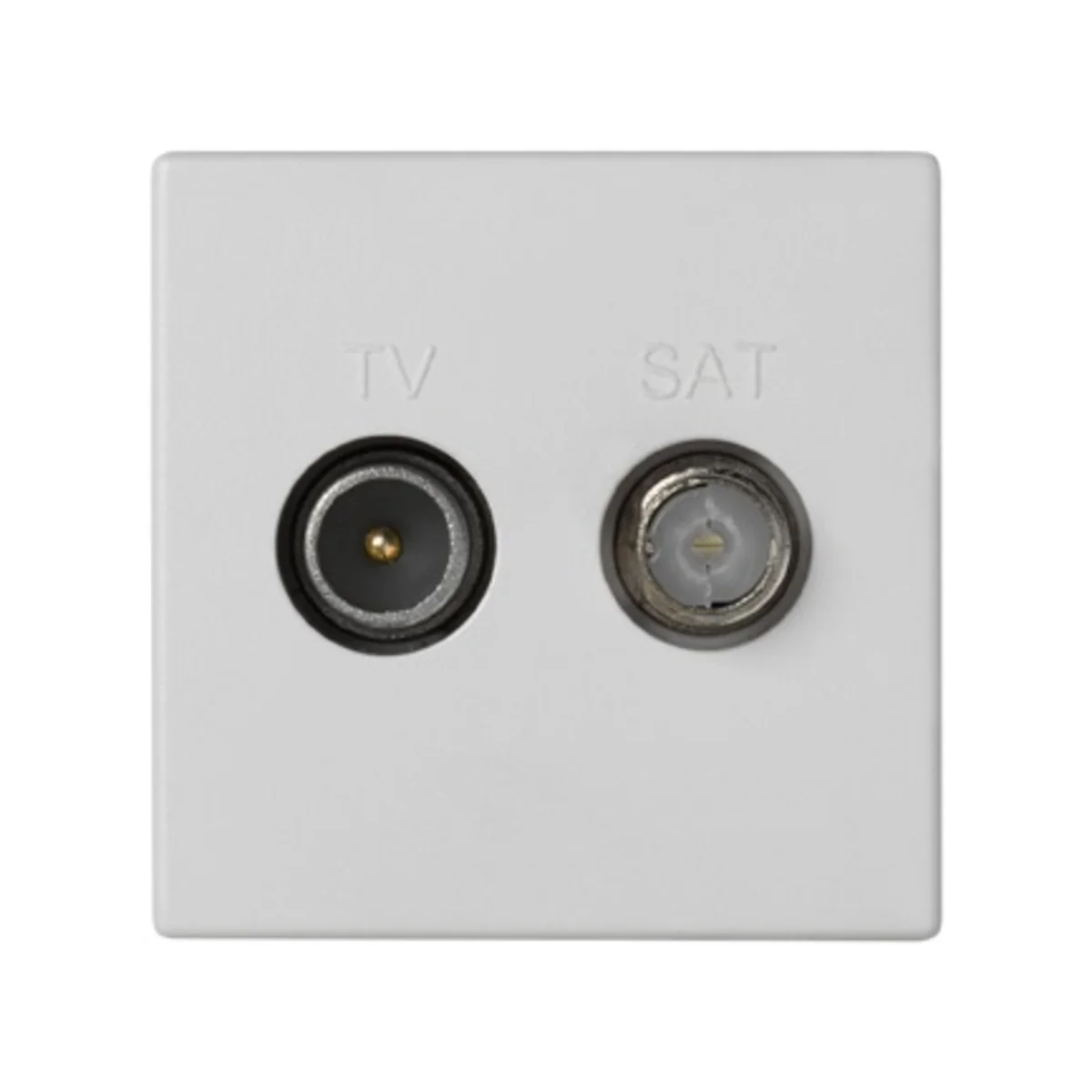

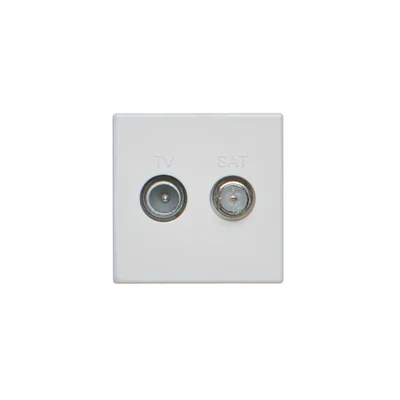

K45 TV-SAT socket 5-2400 MHz 2dB, pure white K130A/9

local index:
MGA015KONT
Catalog No:
K130A/9
EAN code:
8426436052932
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 37
Number of sockets: 2
Price:
24,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Antenna socket in standard K45, from the manufacturer Contact Simon. The product catalog number is K130A/9.



FEATURES

  • SAT TV.
  • Complete product.
  • Color pure white.

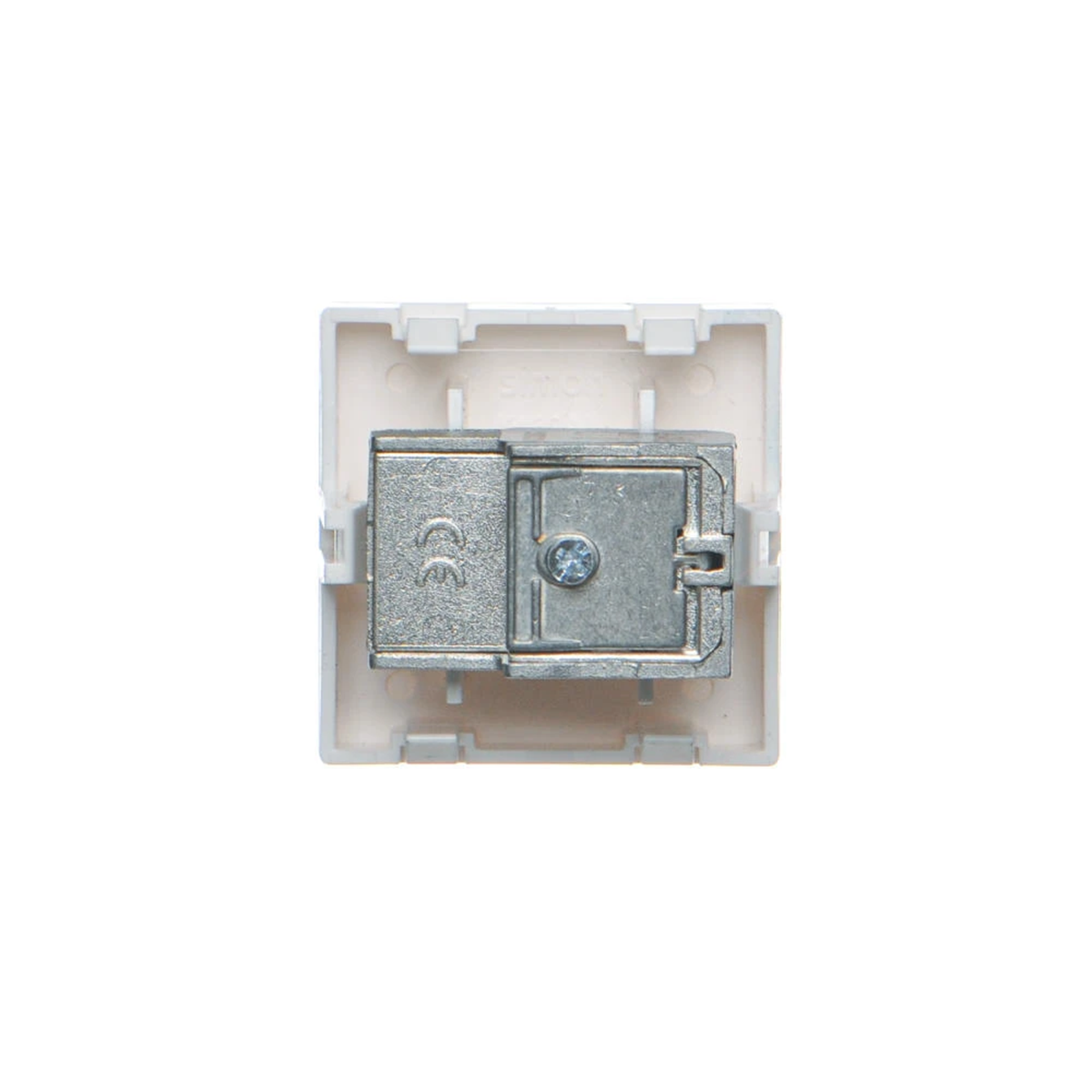

  • Connection type / Terminal type: plug, screw terminals.
  • Ingress protection IP20.
  • Mounting dimensions 45 × 45 mm.
  • Frequency range 5-2400 MHz.
  • Connection attenuation for 860 MHz: 2 dB.
  • Connection loss for 2150MHz: 2 dB.
  • Through loss for 2400 MHz: 2 dB.< /li>

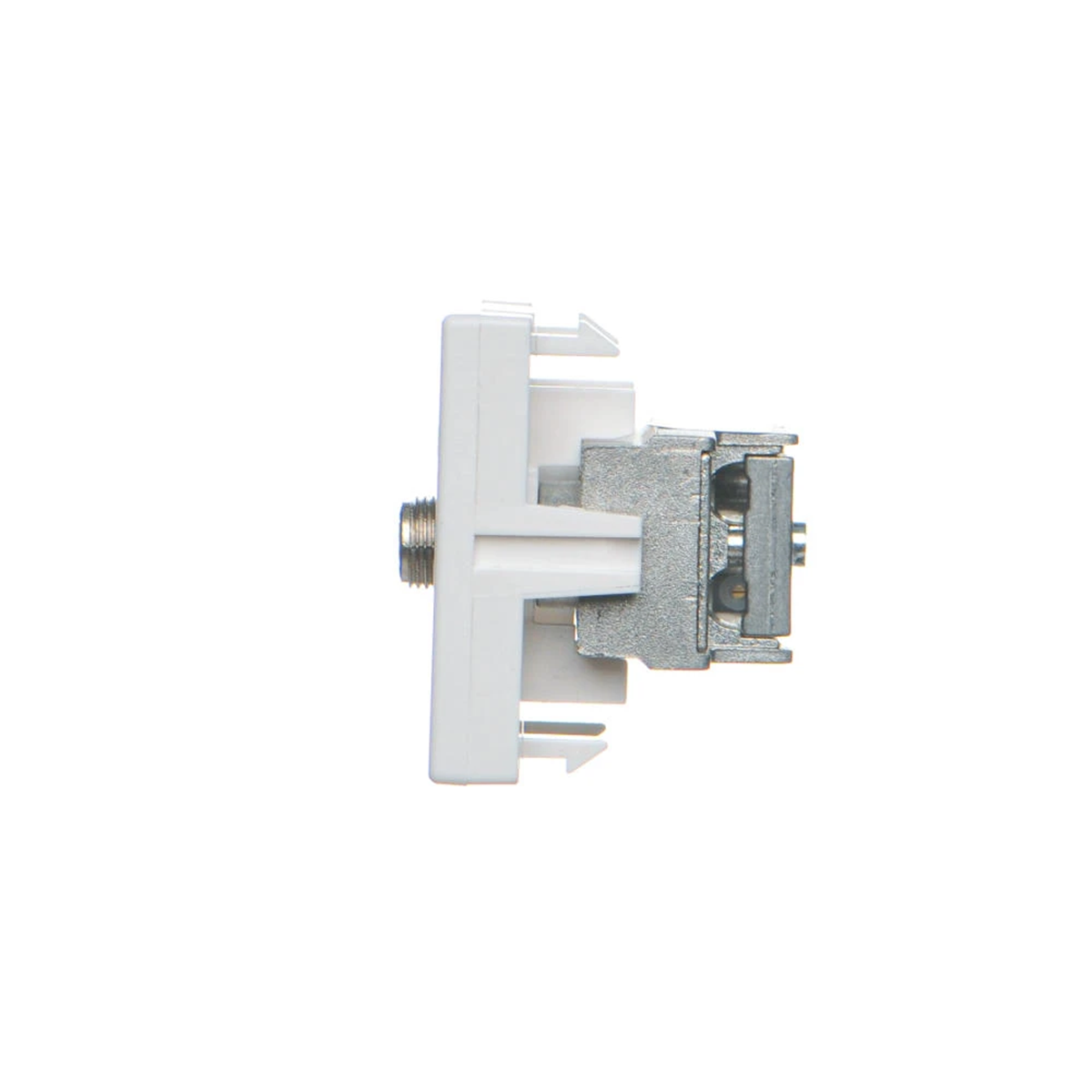

  • Clip mounting.



SERIES DESCRIPTION

Antenna socket  K45 has been designed so that it can be used in various installations, such as floor boxes, columns or installation ducts.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Square
  • Installation
    Built-in
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    Connections for 860 MHz: 2 Connections for 2150 MHz: 2 Passthrough for 2400 MHz: 2
  • Version
    Final Final
  • Surface protection
    Natural
  • Surface finish
    matte
  • Backlight
    NO
  • Variant
    sat TV
  • For the frame system
    Yes
  • Depth [mm]
    37
  • Color
    White
  • Material
    Plastic
  • Overprint
    Yes
  • Family
    K45
  • Width [mm]
    45
  • Type
    45x45
  • Height [mm]
    45
  • Frequency Range [MHz]
    5-2400
  • Accurate color
    Pure white
  • Terminal type
    Threaded
  • F-type input
    NO
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    End socket
  • Tap loss at 2150 MHz
    2 dB
  • Through loss at 2150 MHz
    2 dB
  • Tap loss at 860 MHz
    2 dB
  • Number of outlets
    2
  • Frequency
    5 ... 2400 MHz

Manufacturer details

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,064 0,064 0,640
Width (m) 0,045 - 0,101
Length (m) 0,045 - 0,245
Depth (m) 0,037 - 0,049
