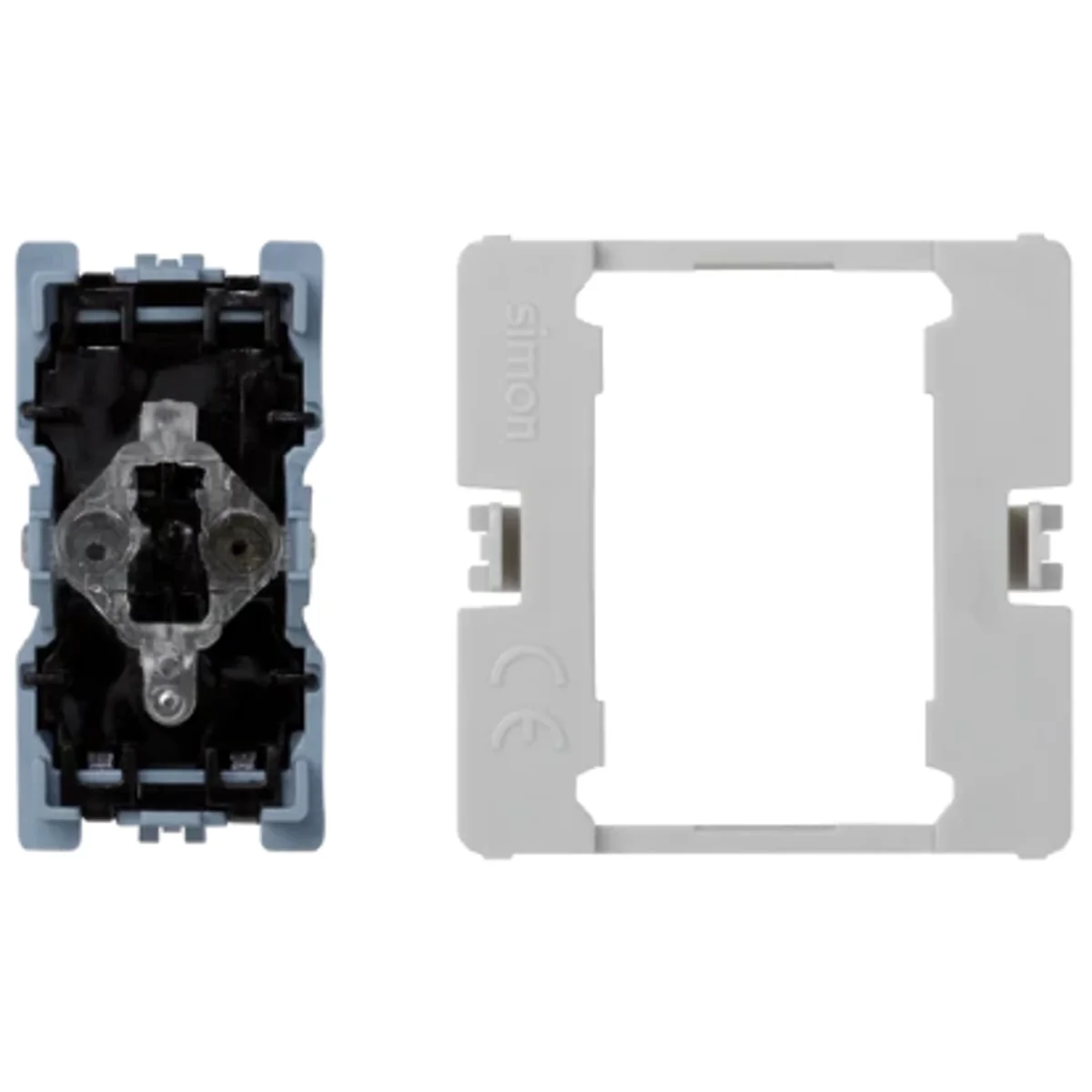

K45 short-circuit switch 16A 230V with backlight K304

Name: K45 short-circuit switch 16A 230V with backlight
Brand: KONTAKT-SIMON
SKU: MOZ002KONT
Price: 10.09 PLN

local index:

MOZ002KONT

Catalog No:

K304

EAN code:

8426436046993

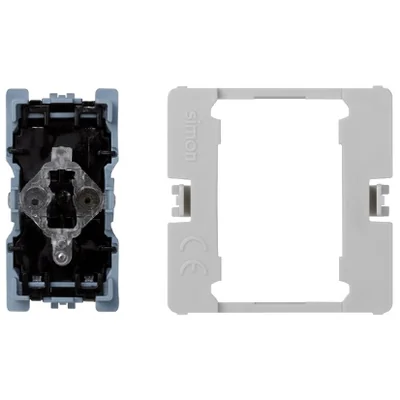

K45 short-circuit switch 16A 230V with backlight

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 34

Number of keys: 1

See full description

Price:

10,09 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Button as standard K45, from the manufacturer Contact Simon. The product catalog number is K304.

FEATURES

Mechanism.
With backlight.
Quick connectors.
K45 45×45mm or 45×22.5mm pushbutton can be used.
1-pole pushbutton (monostable).

SERIES DESCRIPTION

The button of the K45 standard has been designed so that it can be used in various installations such as floor boxes, columns or installation channels.

Technical data

Halogen free

Yes
Number of keys

1
Material

Plastic
Installation

Built-in
Rated current [A]

16
Family

K45
Width [mm]

22.5
Version

Confident
Backlight

Yes
Terminal type

Threadless
For the frame system

Yes

Depth [mm]

34
Shape

Rectangular
Fixing

Latch
Rated voltage [V]

230
Type

Short
Level of security

IP20
Type

45x45
Height [mm]

45
Mounting depth [mm]

29
Variant

Ordinary
PKWIU

27.33.11.0

Other technical data

Method of operation

Rocker/button
Mounting method

Built-in installation
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

16 AX

Assembly arrangement

Basic element
Material

Plastic
Nominal voltage

250 V
Connection type

Push-in clamp

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,028	0,028	0,270
Width (m)	0,045	-	0,047
Length (m)	0,022	-	0,047
Depth (m)	0,034	-	0,047
