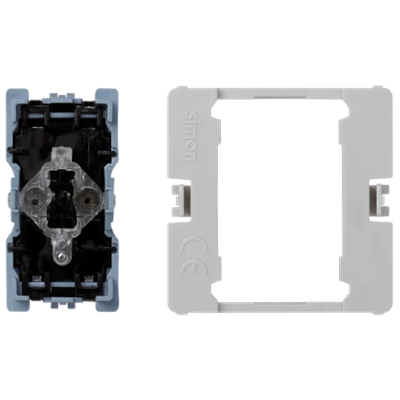

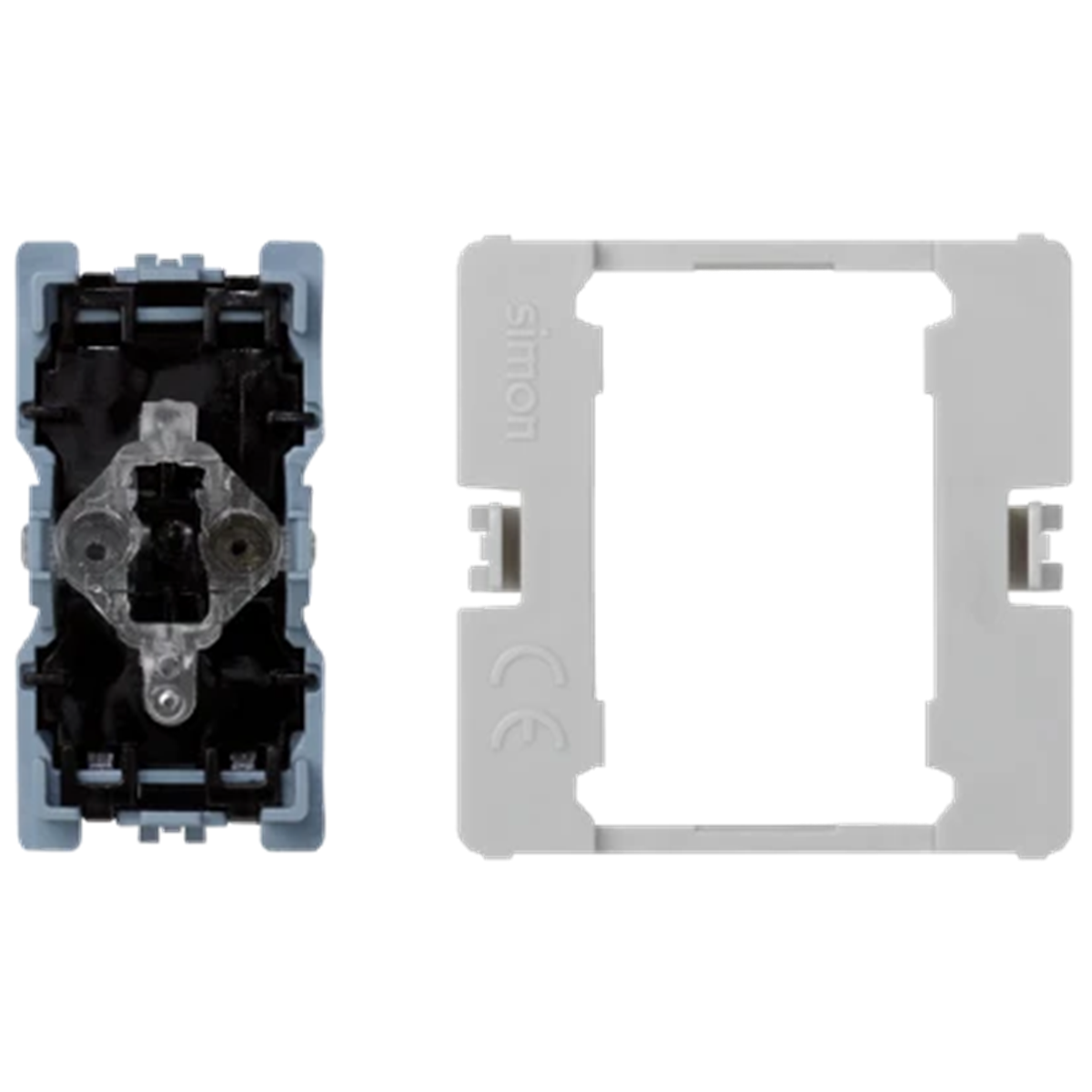

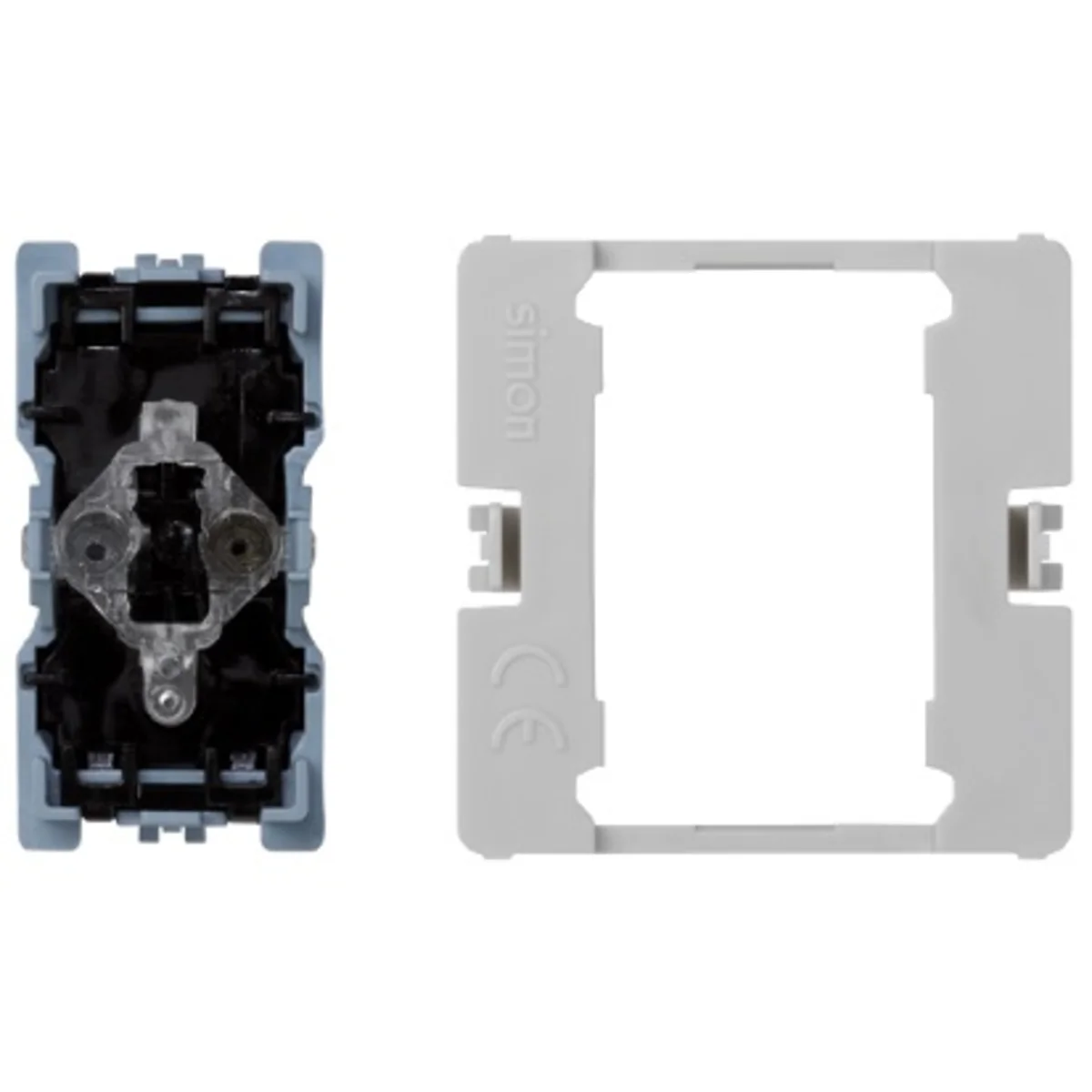

K45 short-circuit switch 16A 230V K303
local index:
MOZ001KONT
Catalog No:
K303
EAN code:
8426436046986
Price:
8,73 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Button as standard K45, from the manufacturer Contact Simon. The product catalog number is K303.
FEATURES
- Mechanism.
- Quick connectors.
- K45 key can be used 45× ;45mm or 45×22.5mm.
- 1-pole pushbutton (monostable).
SERIES DESCRIPTION
The button of the K45 standard has been designed so that it can be used in various installations, such as floor boxes, columns or installation ducts .
Technical data
-
Halogen freeYes
-
Number of keys1
-
MaterialPlastic
-
InstallationBuilt-in
-
Rated current [A]16
-
FamilyK45
-
Width [mm]22.5
-
VersionConfident
-
BacklightNO
-
Terminal typeThreadless
-
For the frame systemYes
-
Depth [mm]34
-
ShapeRectangular
-
FixingLatch
-
Rated voltage [V]230
-
TypeShort
-
Level of securityIP20
-
Type45x45
-
Height [mm]45
-
Mounting depth [mm]29
-
VariantOrdinary
-
PKWIU27.33.11.0
Other technical data
-
Method of operationRocker/button
-
Mounting methodBuilt-in installation
-
Suitable for degree of protection (IP)IP20
-
Switching current for fluorescent lamps16 AX
-
Assembly arrangementBasic element
-
MaterialPlastic
-
Nominal voltage250 V
-
Connection typePush-in clamp
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,026 | 0,026 | 0,260 |
| Width (m) | 0,045 | - | 0,047 |
| Length (m) | 0,022 | - | 0,047 |
| Depth (m) | 0,034 | - | 0,047 |
