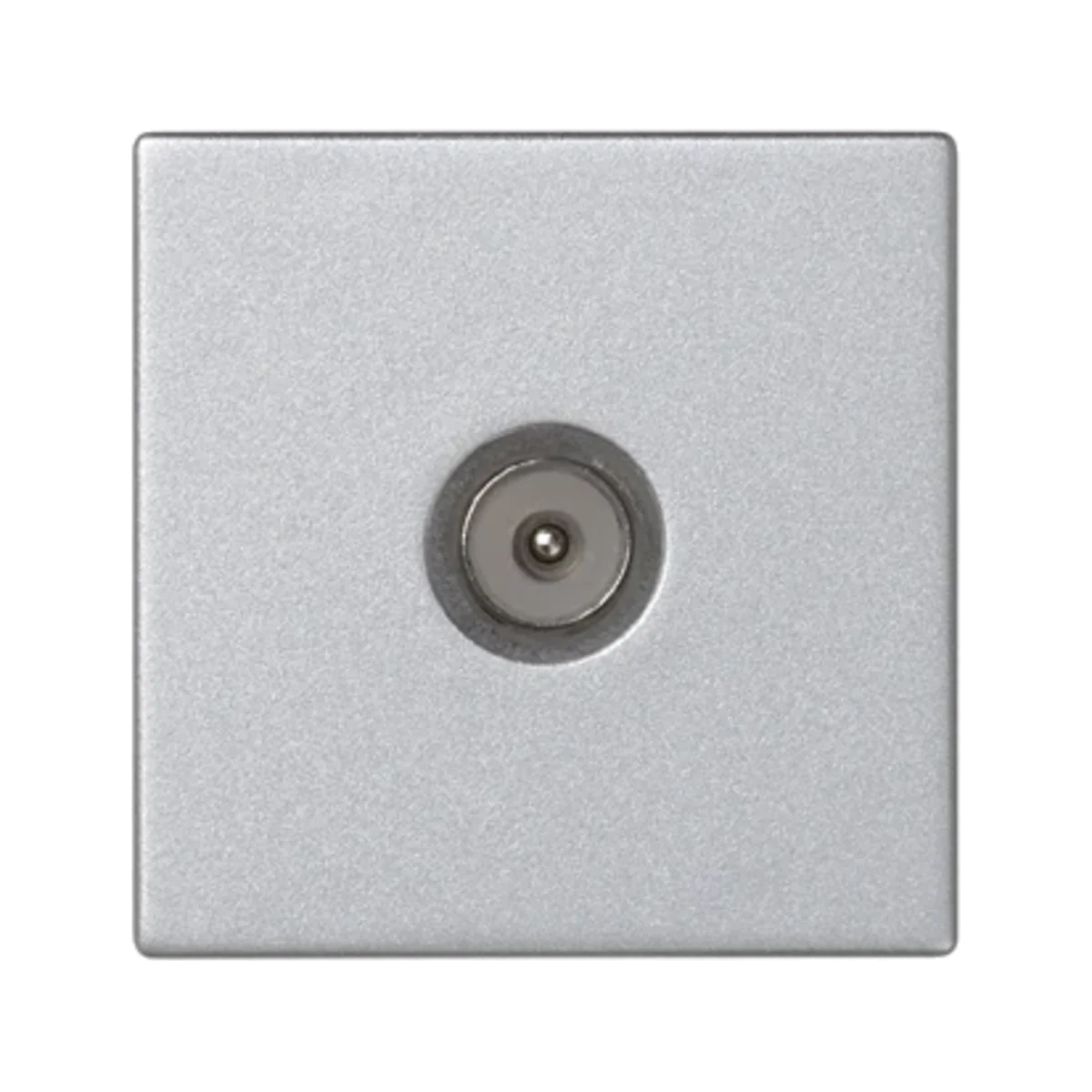

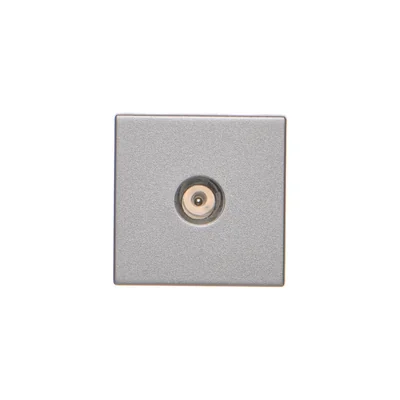

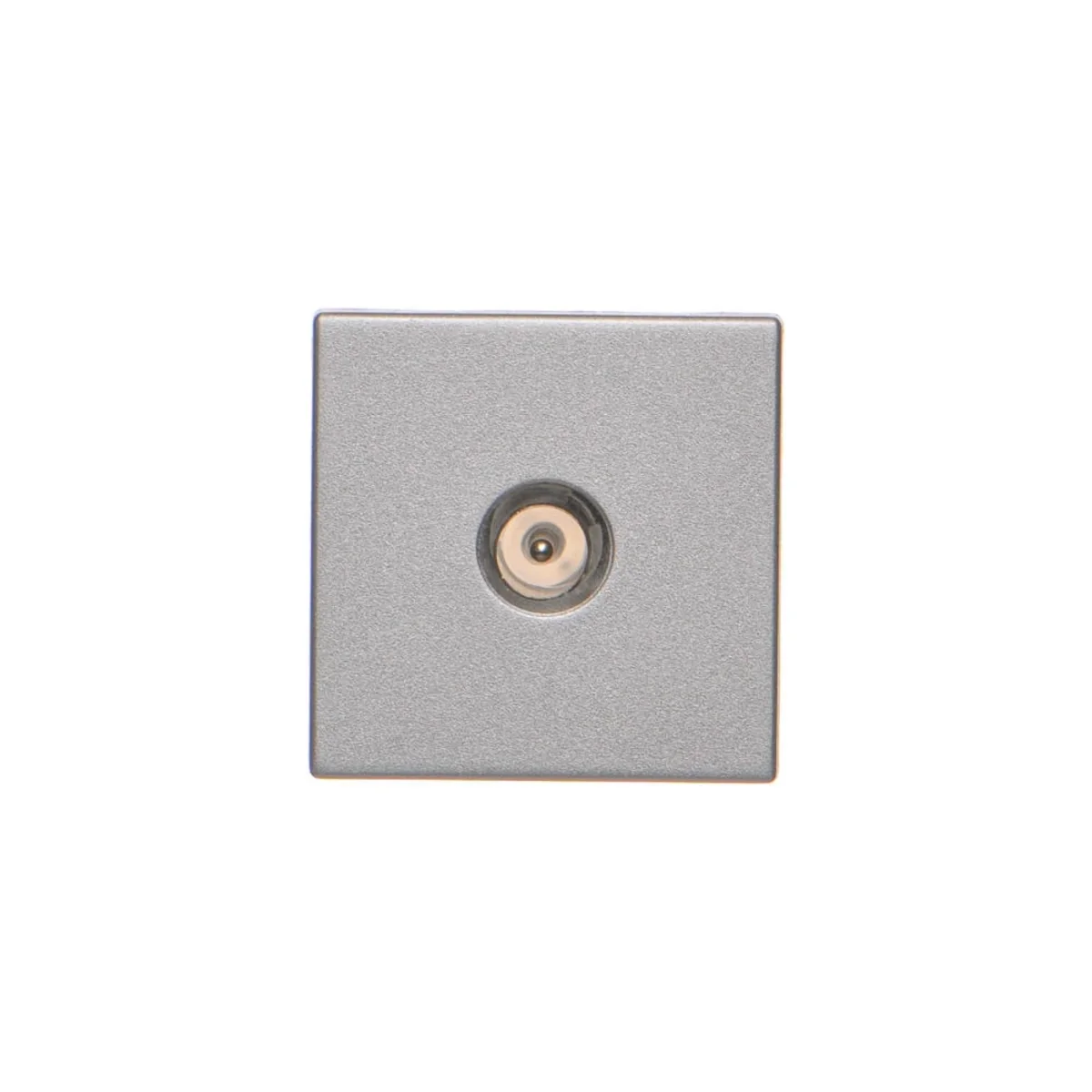

K45 Multimedia board with male TV socket 45x45mm + aluminum insert K120A/8
local index:
MGA006KONT
Catalog No:
K120A/8
EAN code:
8426436046429
Price:
14,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Antenna socket in K45 standard, from the manufacturer Contact Simon. The product catalog number is K120A/8.
FEATURES
- TV male.
- Complete product.
- Color aluminum.

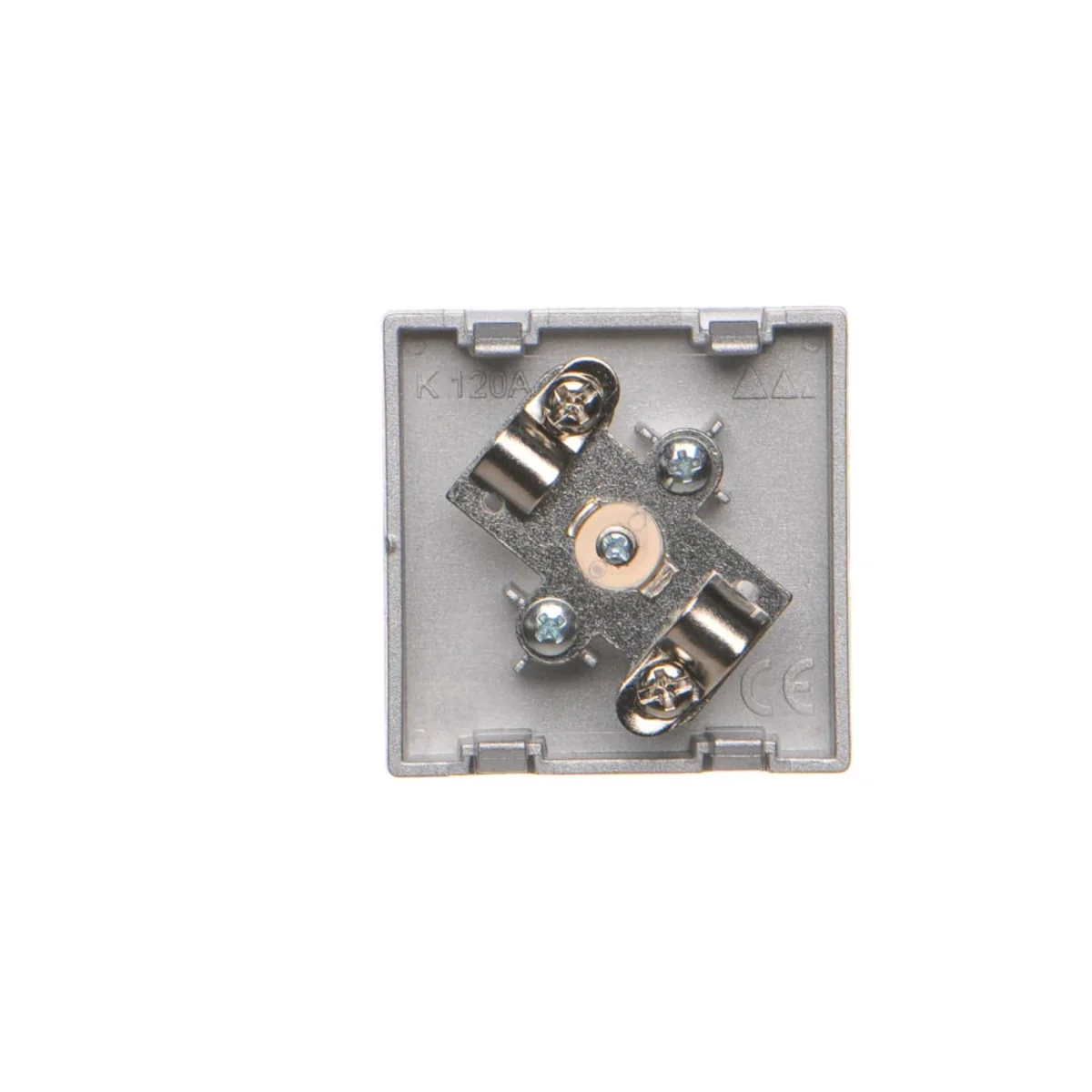

- Screw terminals.
- Grade protection IP20.
- Mounting dimensions 45 × 45 mm.
- Mounting with clips.
SERIES DESCRIPTION
The antenna socket of the K45 standard has been designed so that it can be used in various installations, such as floor boxes, columns or installation ducts.
Technical data
-
Halogen freeYes
-
Number of sockets1
-
ShapeSquare
-
OverprintNO
-
FamilyK45
-
Width [mm]45
-
Height [mm]45
-
Surface finishmatte
-
BacklightNO
-
Terminal typeThreaded
-
F-type inputNO
-
PKWIU27.33.13.0
-
Depth [mm]21.6
-
ColorSilver
-
MaterialPlastic
-
TypeAntenna
-
Level of securityIP20
-
Type45x45
-
Surface protectionvarnishing
-
Accurate colorAluminum
-
Mounting directionVertical
-
VariantTV
-
For the frame systemYes
Other technical data
-
Assembly arrangementBasic element with central cover plate
-
MaterialPlastic
-
Surface finishingMatt
-
Suitable for degree of protection (IP)IP20
-
Imprintable labelWithout indication field
-
Surface protectionLacquered
-
ColourAluminium
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,031 | 0,031 | 0,300 |
| Width (m) | 0,045 | - | 0,123 |
| Length (m) | 0,045 | - | 0,136 |
| Depth (m) | 0,022 | - | 0,088 |
