81345
0

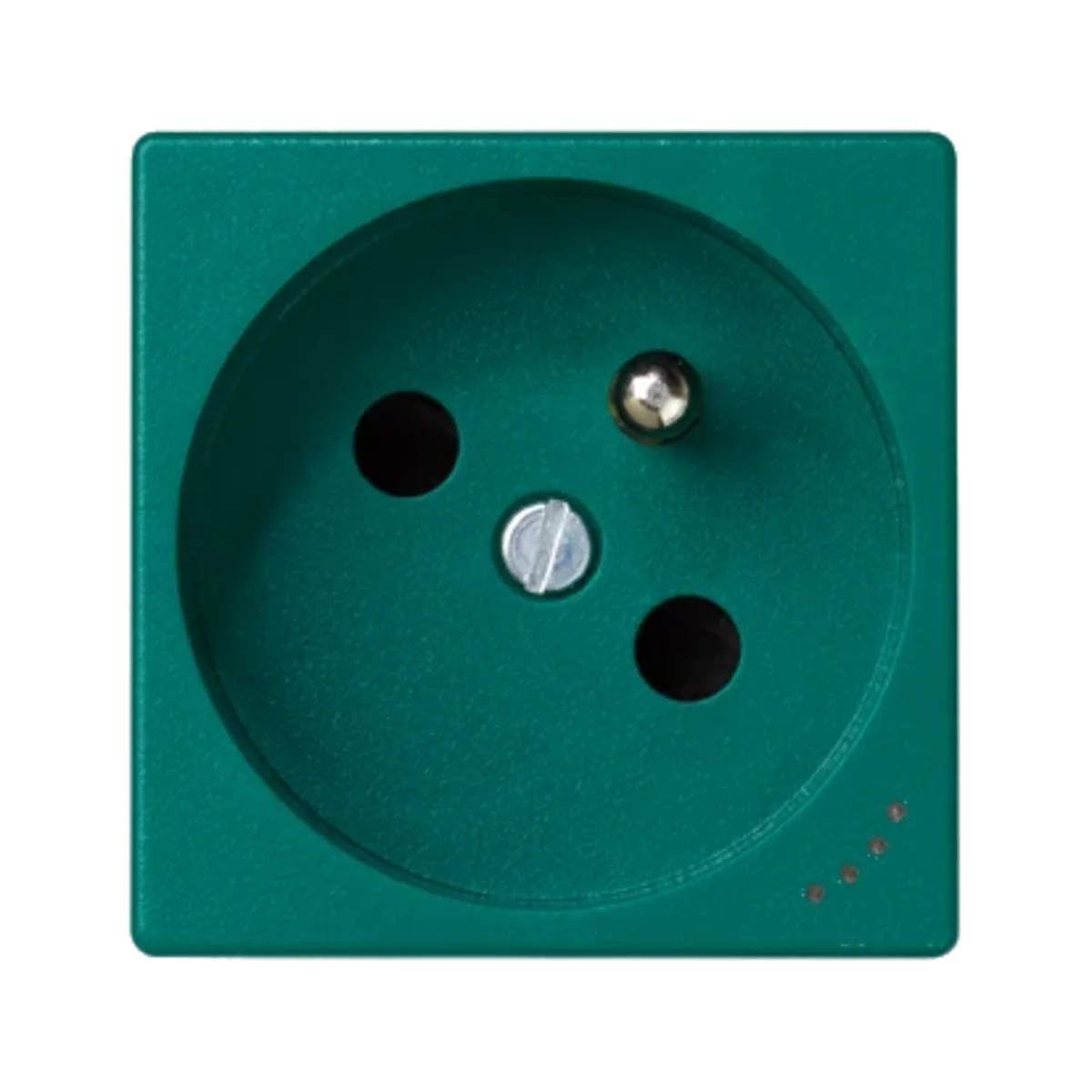

K45 grounded socket 16A/230V, with power indicator, green KL02/27
local index:
MGE038KONT
Catalog No:
KL02/27
EAN code:
8421053190791
Price:
7,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electric socket in standard K45, from the manufacturer Contact Simon. The product catalog number is KL02/27.
FEATURES
- Single.
- Z grounding; grounding pin.
- With voltage indication.
- Complete product.
- Color green.
- Screw terminals.
- Rated current 16A.
- Rated voltage 230V.
- Ingress protection IP20.
- Mounting dimensions 45 x 45 ;mm.
- Mounting with clips.
SERIES DESCRIPTION
The electrical socket of the K45 standard has been designed so that it can be used in various installations, such as floor boxes, columns or installation ducts.
Technical data
-
Halogen freeYes
-
Number of sockets1
-
ShapeSquare
-
InstallationBuilt-in
-
Rated current [A]16
-
FamilyK45
-
Width [mm]45
-
GroundHurt
-
Surface protectionNatural
-
BacklightYes
-
StandardEuropean
-
On the DATA keyNO
-
Additional informationVoltage indication
-
Depth [mm]39
-
ColorGreen
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
Type45x45
-
Height [mm]45
-
Surface finishmatte
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,050 | 0,050 | 0,500 |
| Width (m) | 0,045 | - | 0,101 |
| Length (m) | 0,045 | - | 0,245 |
| Depth (m) | 0,039 | - | 0,049 |
