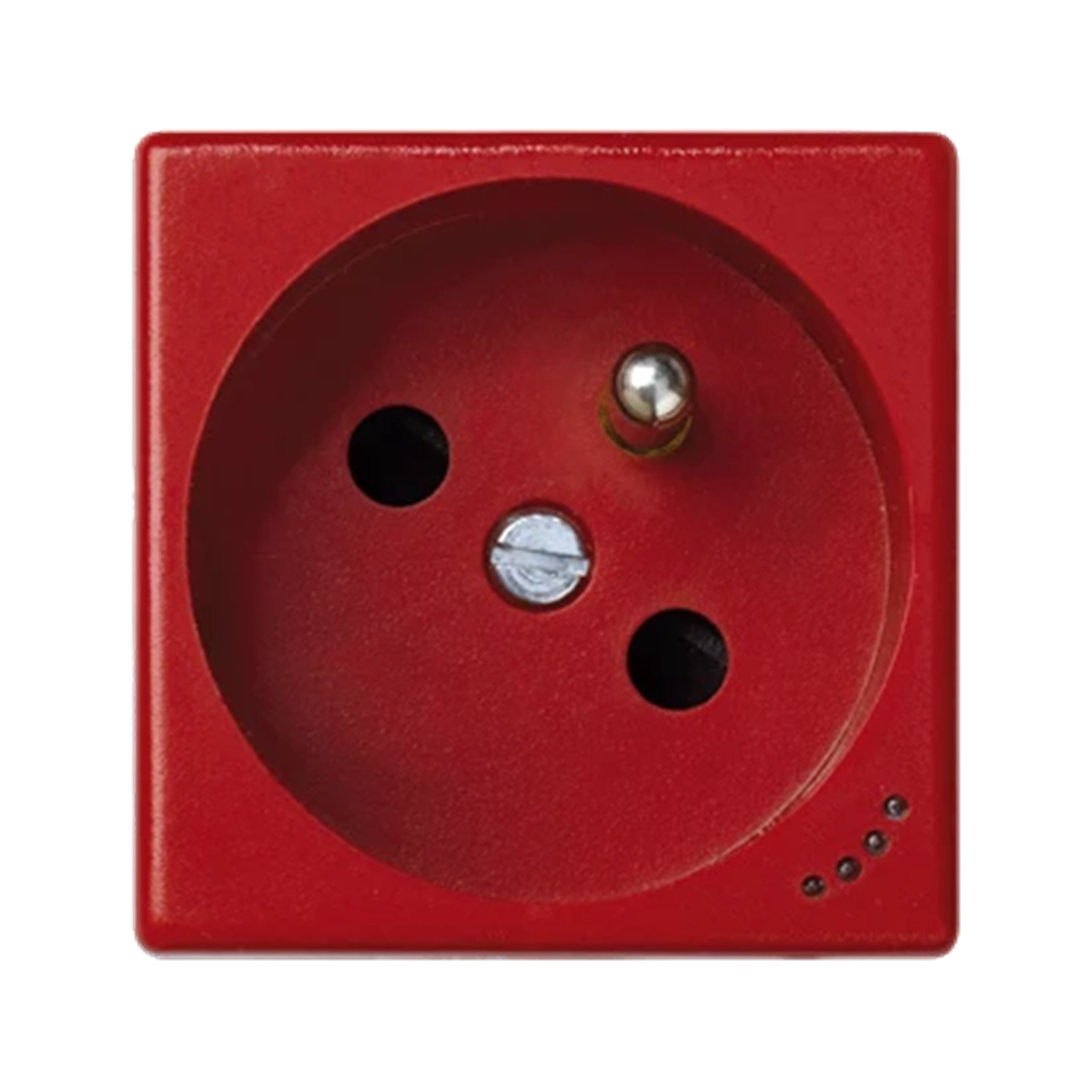

K45 grounded socket 16A, 230V, with power indicator, red KL02/6

local index:
MGE016KONT
Catalog No:
KL02/6
EAN code:
8421053123386
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 39
Number of sockets: 1
Price:
7,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electrical socket in standard K45, from the manufacturer Contact Simon. The product catalog number is KL02/6.



FEATURES

  • Single.
  • Z grounding; grounding pin.
  • With voltage indication.
  • Complete product.
  • Color red.
  • Screw terminals.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Mounting dimensions 45 x 45  ;mm.
  • Mounting with clips.



SERIES DESCRIPTION

The electrical socket of the K45 standard has been designed so that it can be used in various installations, such as floor boxes, columns or installation ducts.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Built-in
  • Rated current [A]
    16
  • Family
    K45
  • Width [mm]
    45
  • Ground
    Hurt
  • Surface protection
    Natural
  • Backlight
    Yes
  • Standard
    European
  • On the DATA key
    NO
  • Additional information
    Voltage indication
  • Depth [mm]
    39
  • Color
    Red
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    45x45
  • Height [mm]
    45
  • Surface finish
    matte
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Connection type
    Screwed terminal
  • Mounting method
    Built-in installation
  • Surface protection
    Untreated
  • Nominal voltage
    250 V
  • Colour
    Red
  • Material
    Plastic
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,050 0,050 0,500
Width (m) 0,045 - 0,101
Length (m) 0,045 - 0,245
Depth (m) 0,039 - 0,049
