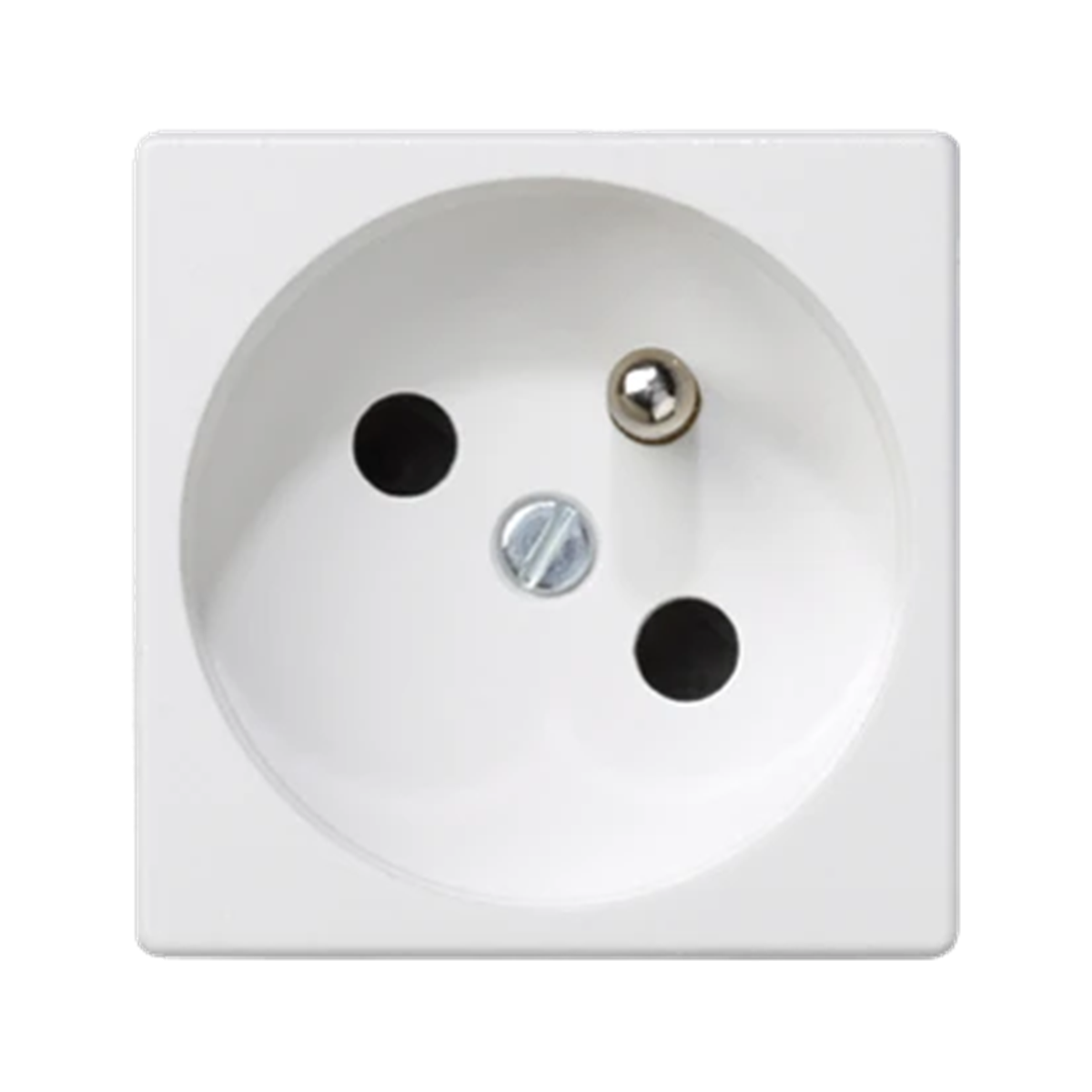

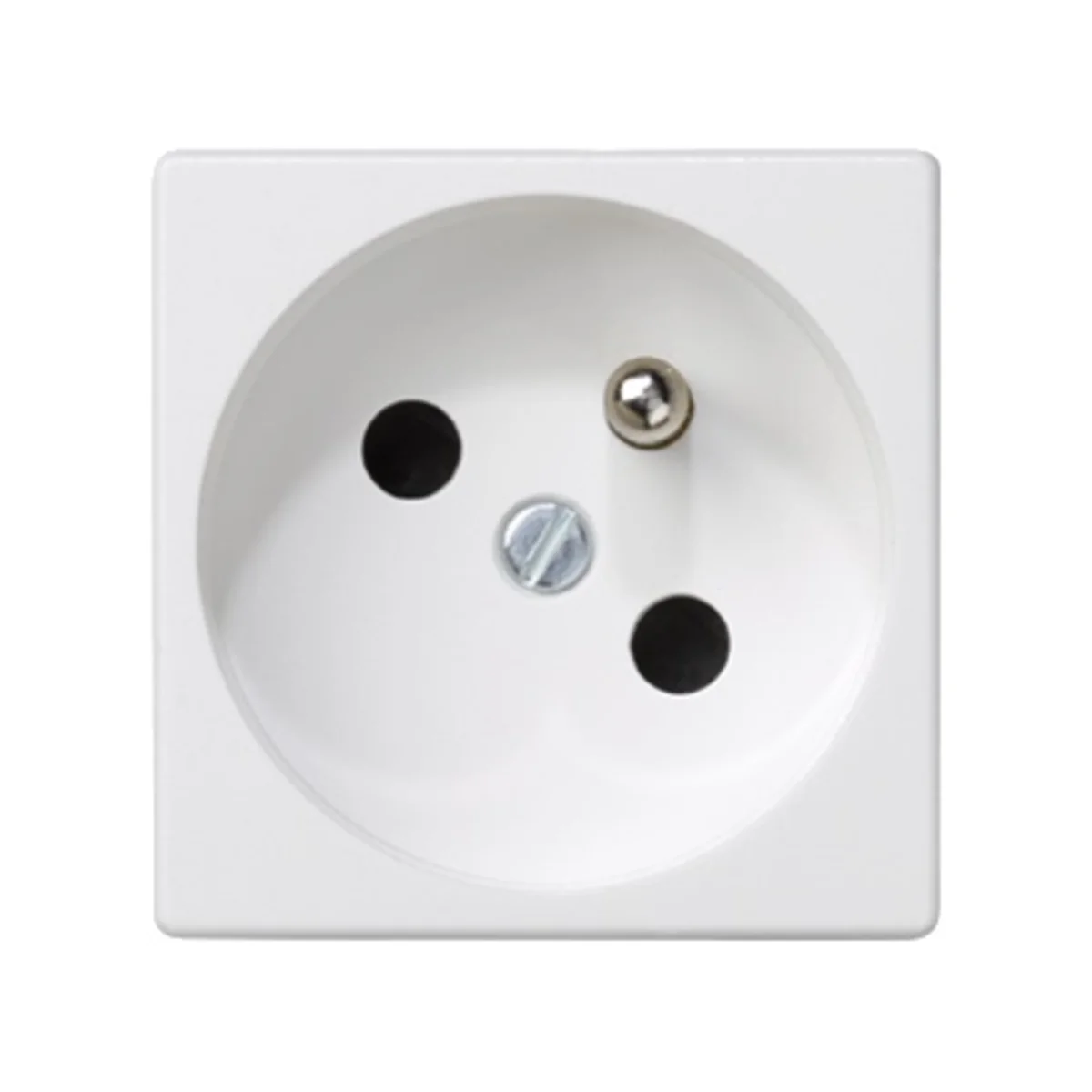

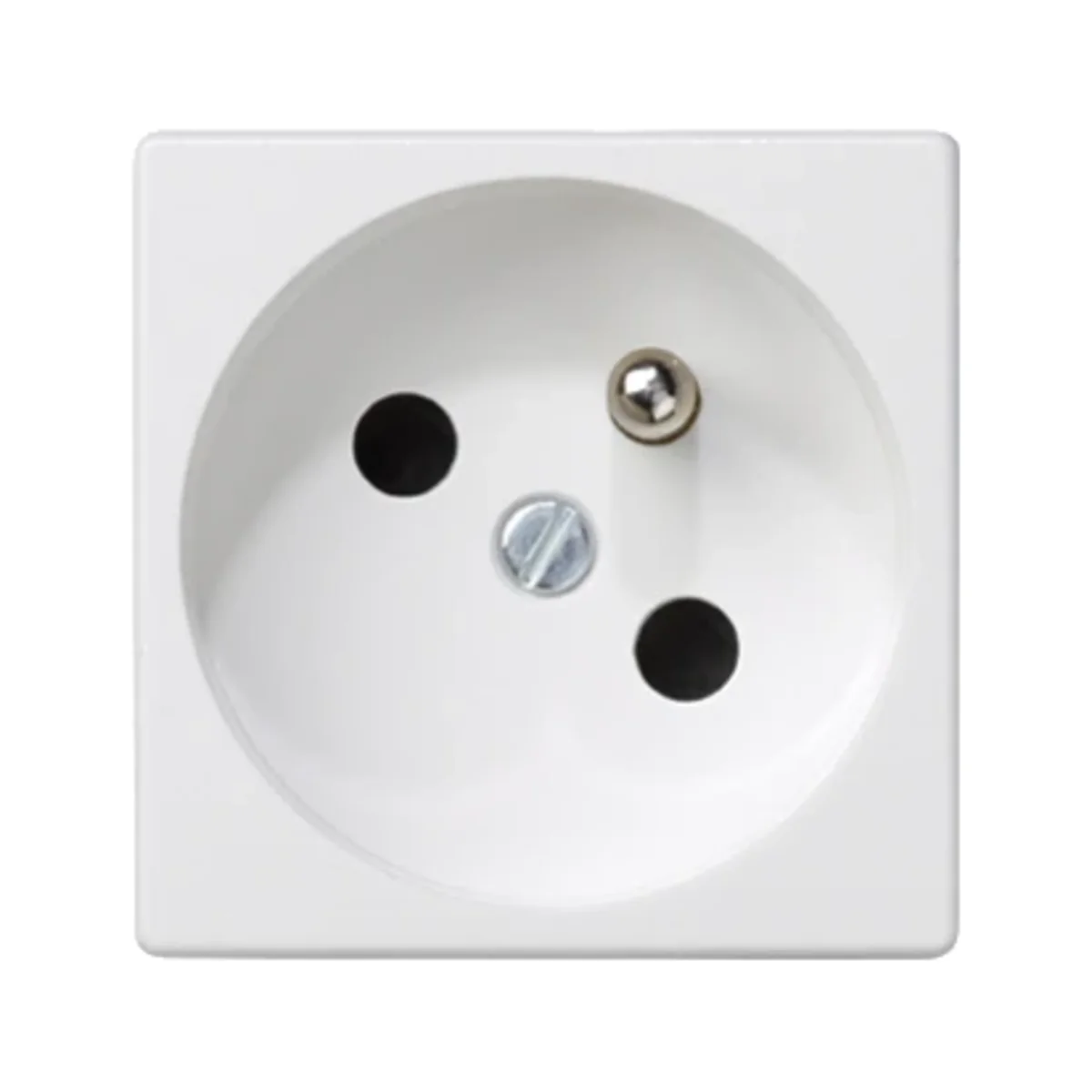

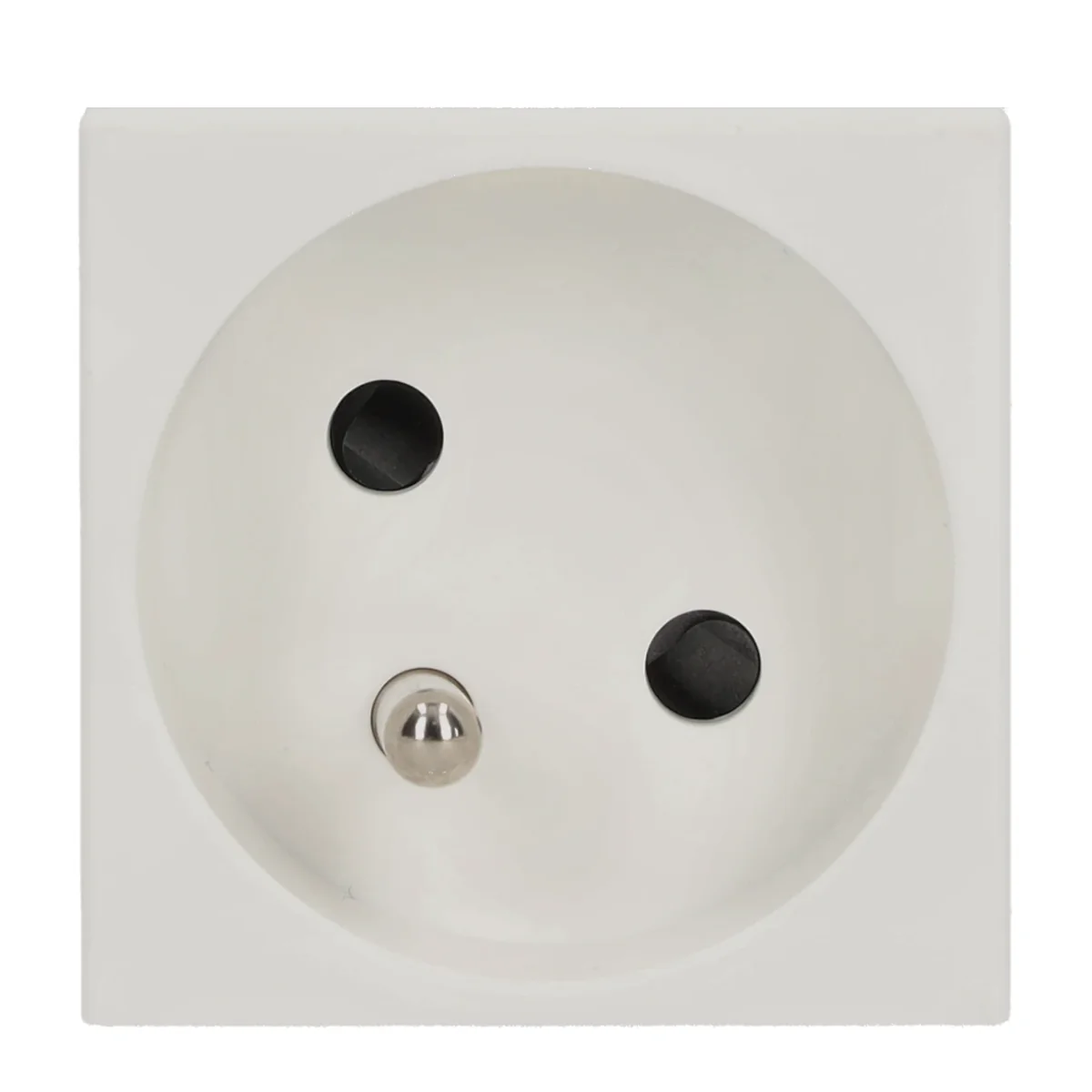

K45 grounded socket 16A, 230V, pure white K02/9

local index:
MGE011KONT
Catalog No:
K02/9
EAN code:
8426436018150
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 39
Number of sockets: 1
Price:
3,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electric socket in standard K45, from the manufacturer Contact Simon. The product catalog number is K02/9.



FEATURES

  • Single.
  • Z grounding; ground pin.
  • Complete product.
  • Color pure white.
  • Screw terminals .
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Mounting dimensions 45 x 45 mm.
  • Recessed.



SERIES DESCRIPTION

The electrical socket of the K45  standard has been designed so that it can  be used in various installations, such as floor boxes, columns or installation ducts.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Built-in
  • Rated current [A]
    16
  • Family
    K45
  • Width [mm]
    45
  • Ground
    Hurt
  • Surface protection
    Natural
  • Accurate color
    Pure white
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • Depth [mm]
    39
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    45x45
  • Height [mm]
    45
  • Surface finish
    matte
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • PKWIU
    27.33.13.0

Other technical data

  • Connection type
    Screwed terminal
  • Mounting method
    Built-in installation
  • Surface protection
    Untreated
  • Nominal voltage
    250 V
  • Colour
    White
  • Material
    Plastic
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,047 0,047 0,480
Width (m) 0,045 - 0,101
Length (m) 0,045 - 0,245
Depth (m) 0,039 - 0,049
