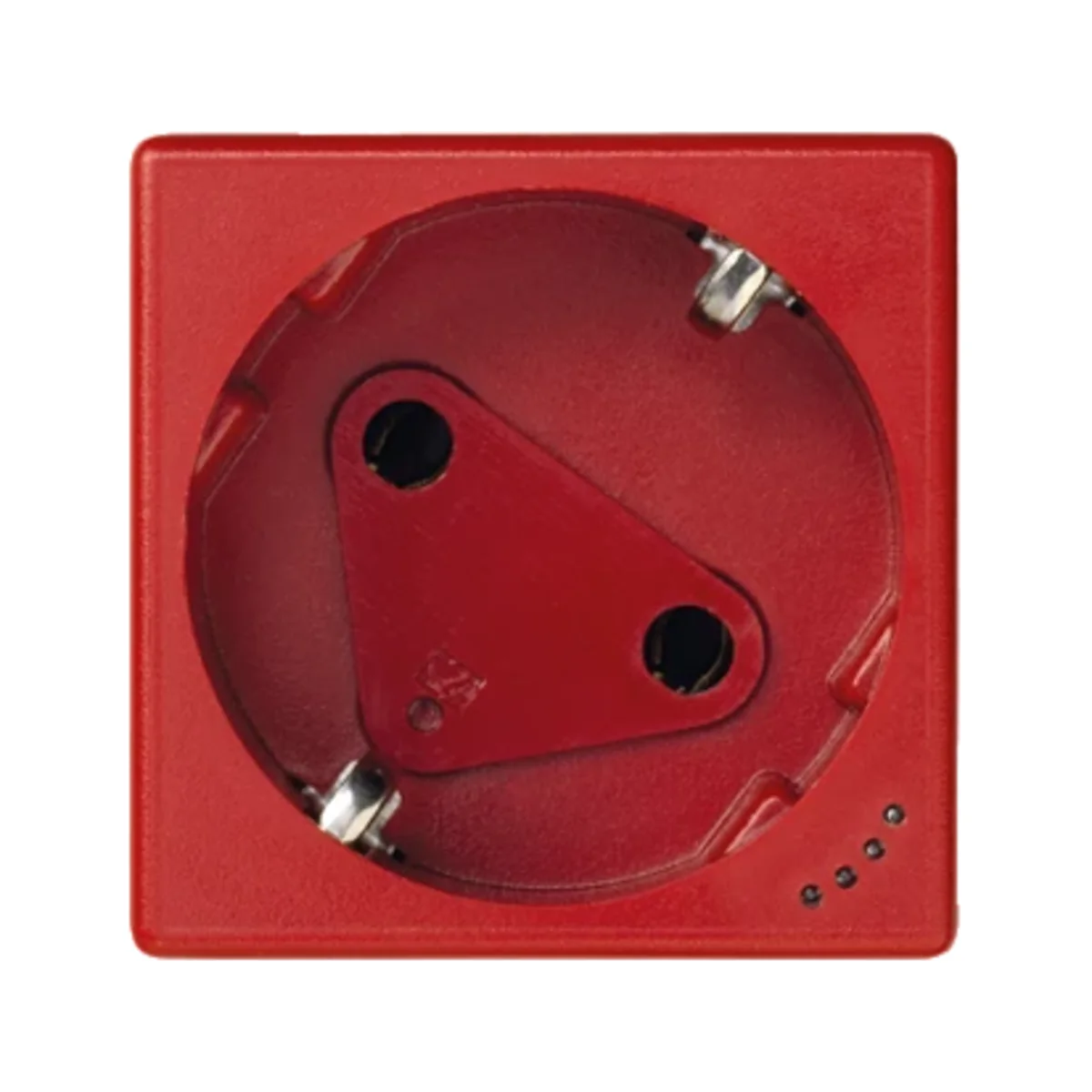

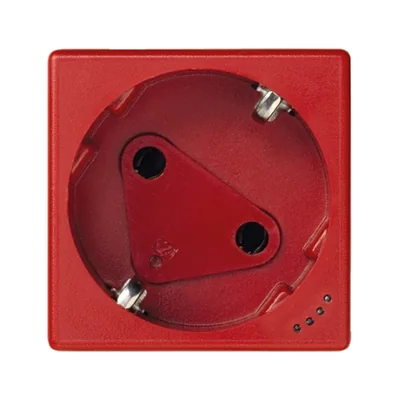

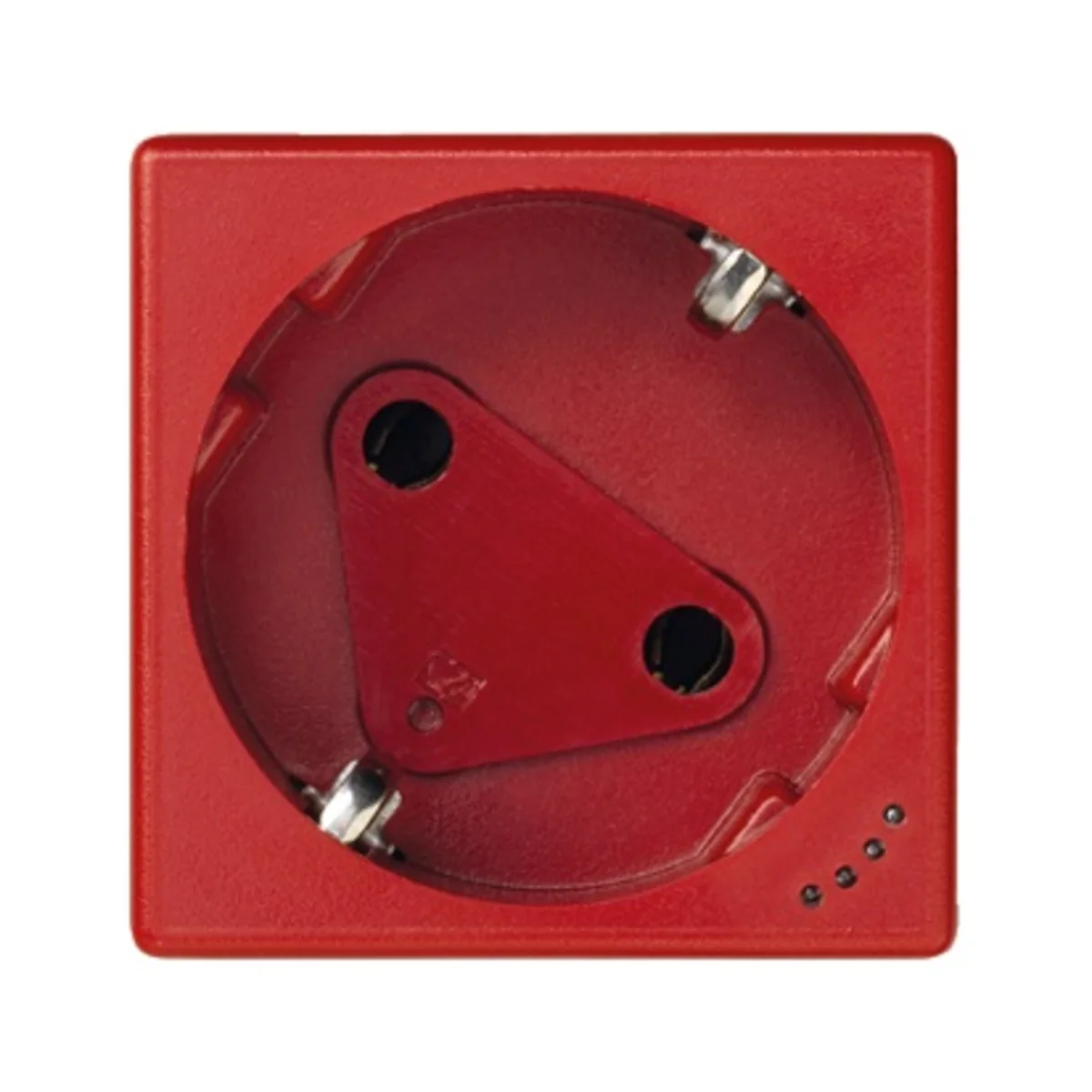

K45 DATA socket with schuko key 16A, 230V with power indicator red KLS01/6
local index:
MGE041KONT
Catalog No:
KLS01/6
EAN code:
8426436019295
Price:
9,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electrical socket in standard K45, from the manufacturer Contact Simon. The product catalog number is KLS01/6.
FEATURES
- Single.
- Z grounding SCHUKO; side grounding contact.
- DATA.
- With voltage indication.
- Complete product.
- Color red.
- Screw terminals.
- Rated current 16A.
- Rated voltage 230V.
- Ingress protection IP20.
- Mounting dimensions 45 x 45 mm.
- Mounting with clips.
- Key included.
SERIES DESCRIPTION
The electrical socket of the K45 standard has been designed so that it can be used in various installations, such as floor boxes, columns or installation ducts.
Technical data
-
Halogen freeYes
-
Number of sockets1
-
ShapeSquare
-
InstallationBuilt-in
-
Rated current [A]16
-
FamilyK45
-
Width [mm]45
-
Groundschuko
-
Surface protectionNatural
-
BacklightYes
-
StandardEuropean
-
On the DATA keyYes
-
Additional informationVoltage indication
-
Depth [mm]39
-
ColorRed
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
Type45x45
-
Height [mm]45
-
Surface finishmatte
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
Connection typeScrewed terminal
-
Mounting methodBuilt-in installation
-
Surface protectionUntreated
-
Nominal voltage250 V
-
ColourRed
-
MaterialPlastic
-
Surface finishingMatt
-
Suitable for degree of protection (IP)IP20
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,051 | 0,051 | 0,520 |
| Width (m) | 0,045 | - | 0,101 |
| Length (m) | 0,045 | - | 0,245 |
| Depth (m) | 0,039 | - | 0,049 |
