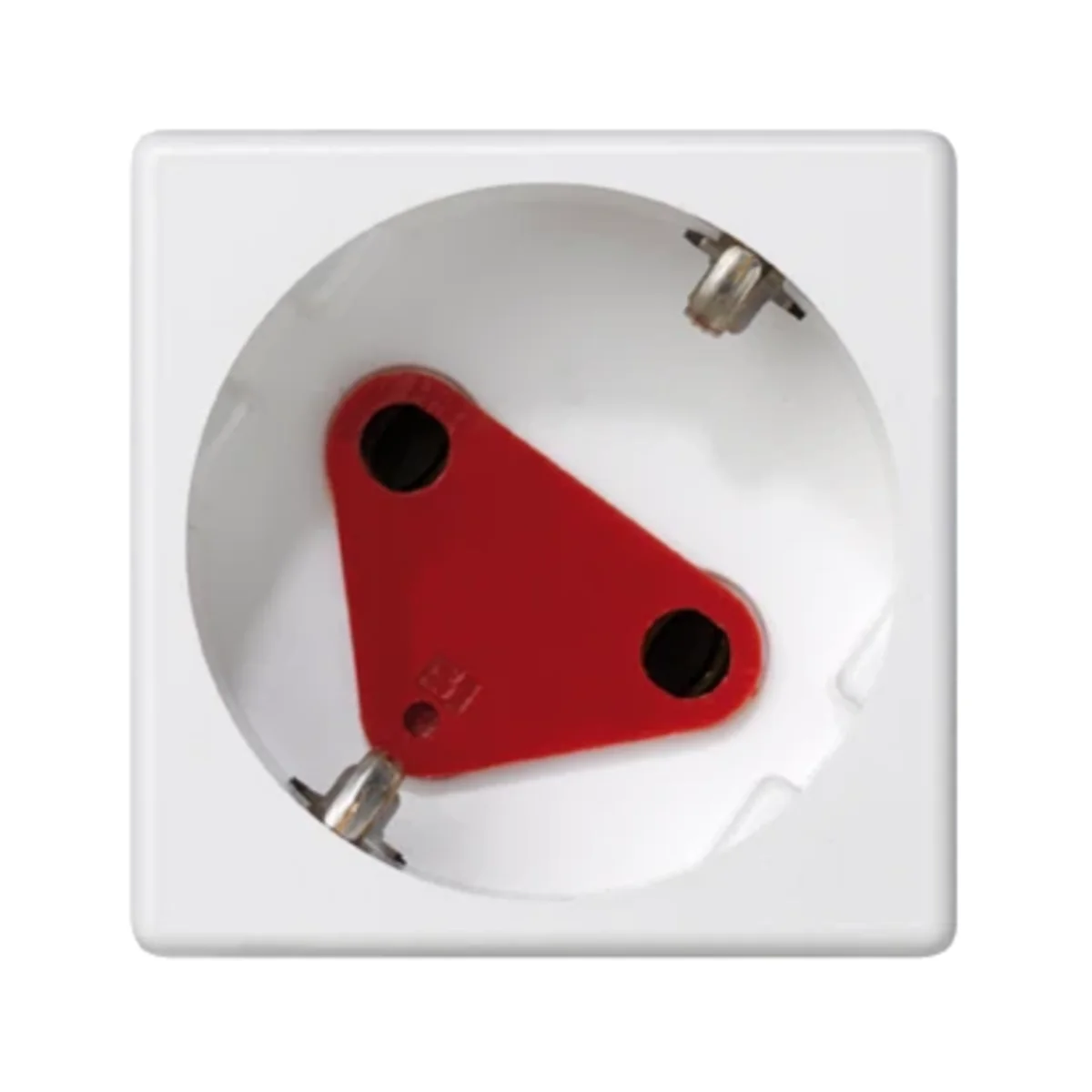

K45 DATA socket with schuko key 16A, 230V quick connectors pure white KS11/9

local index:
MGE043KONT
Catalog No:
KS11/9
EAN code:
8426436022973
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Number of sockets: 1
Color: White
Price:
9,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electrical socket in standard K45, from the manufacturer Contact Simon. The product catalog number is KS11/9.



FEATURES

  • Single.
  • Z grounding SCHUKO; Side grounding contact.
  • DATE.
  • Complete product.
  • Color pure white .
  • Quick connectors.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Mounting dimensions 45 x 45 mm. li>
  • Clip-on installation.
  • Key included.



SERIES DESCRIPTION

< strong>Electric socket of the K45 standard has been designed so that it can be used in various installations, such as floor boxes, columns or installation ducts.

Technical data

  • Halogen free
    Yes
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    45x45
  • Height [mm]
    45
  • Surface finish
    matte
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    Yes
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Built-in
  • Rated current [A]
    16
  • Family
    K45
  • Width [mm]
    45
  • Ground
    schuko
  • Surface protection
    Natural
  • Accurate color
    Pure white
  • Terminal type
    Threadless
  • Shutters of current paths
    Yes
  • For the frame system
    Yes

Other technical data

  • Connection type
    Push-in clamp
  • Mounting method
    Built-in installation
  • Surface protection
    Untreated
  • Nominal voltage
    250 V
  • Colour
    White
  • Material
    Plastic
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,540 0,540 0,530
Width (m) 0,045 - 0,101
Length (m) 0,045 - 0,245
Depth (m) 0,045 - 0,049
