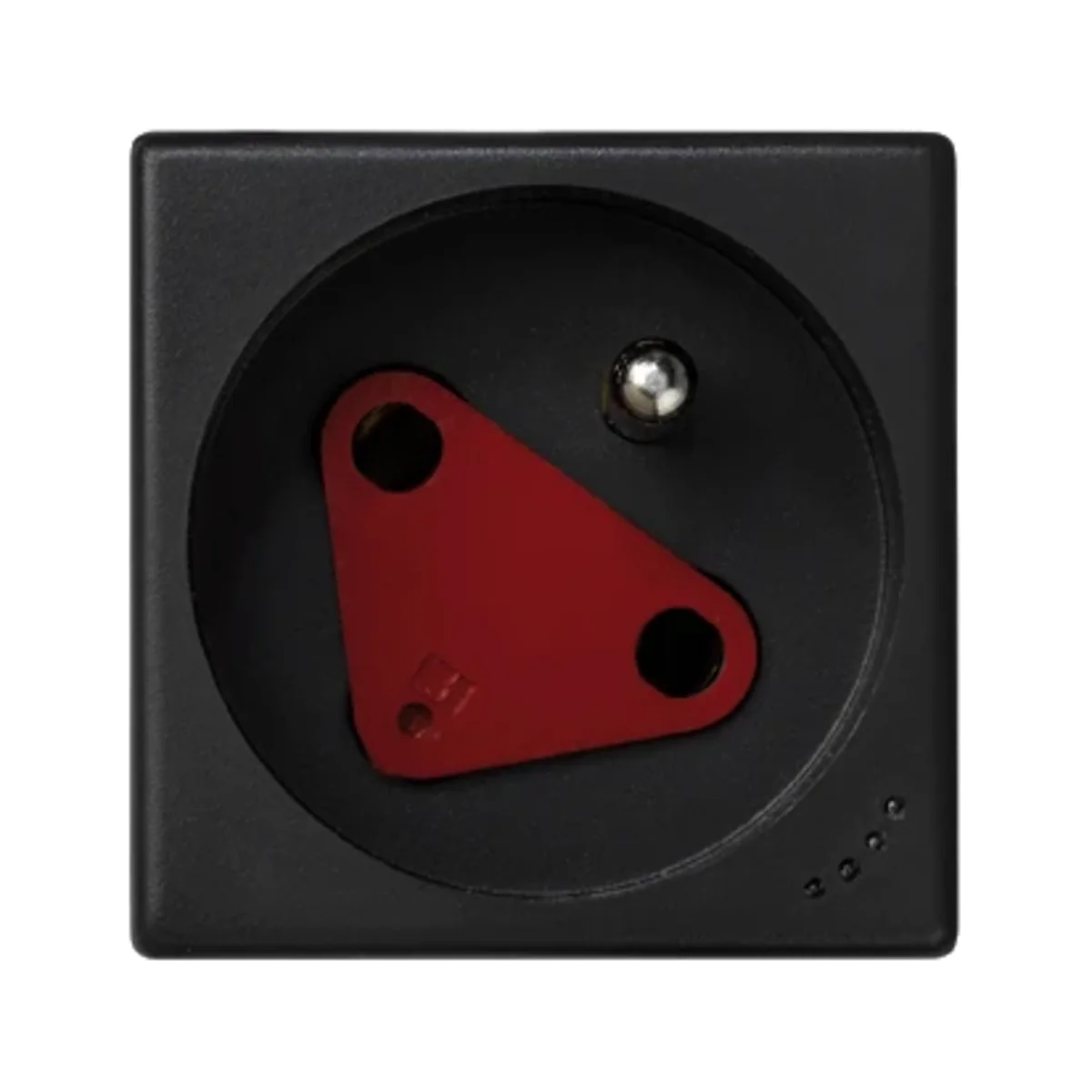

K45 DATA socket with key and grounding 16A, 230V with power indicator graphite gray KLS02/14
local index:
MGE022KONT
Catalog No:
KLS02/14
EAN code:
8426436020931
Price:
5,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electrical socket in standard K45, from the manufacturer Contact Simon. The product catalog number is KLS02/14.
FEATURES
- Single.
- Z grounding; ground pin.
- DATE.
- With voltage indication.
- Complete product< /strong>.
- Color graphite gray.
- Screw terminals.
- Rated current 16A.
- Rated voltage 230V.
- Ingress protection IP20.
- Mounting dimensions 45 x 45 mm.
- Clip mounting.
- Key included.
;
SERIES DESCRIPTION
The electrical socket of the K45 standard has been designed so that it can be used in the various installations, such as floor boxes, columns or installation ducts.
Technical data
-
Halogen freeYes
-
Number of sockets1
-
ShapeSquare
-
InstallationBuilt-in
-
Rated current [A]16
-
FamilyK45
-
Width [mm]45
-
GroundHurt
-
Surface protectionNatural
-
Accurate colorGray graphite
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
-
Depth [mm]39
-
ColorGraphite
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
Type45x45
-
Height [mm]45
-
Surface finishmatte
-
BacklightYes
-
StandardEuropean
-
On the DATA keyYes
-
Additional informationVoltage indication
Other technical data
-
Connection typeScrewed terminal
-
Mounting methodBuilt-in installation
-
Surface protectionUntreated
-
Nominal voltage250 V
-
ColourAnthracite
-
MaterialPlastic
-
Surface finishingMatt
-
Suitable for degree of protection (IP)IP20
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,052 | 0,052 | 0,520 |
| Width (m) | 0,045 | - | 0,101 |
| Length (m) | 0,045 | - | 0,245 |
| Depth (m) | 0,039 | - | 0,049 |
