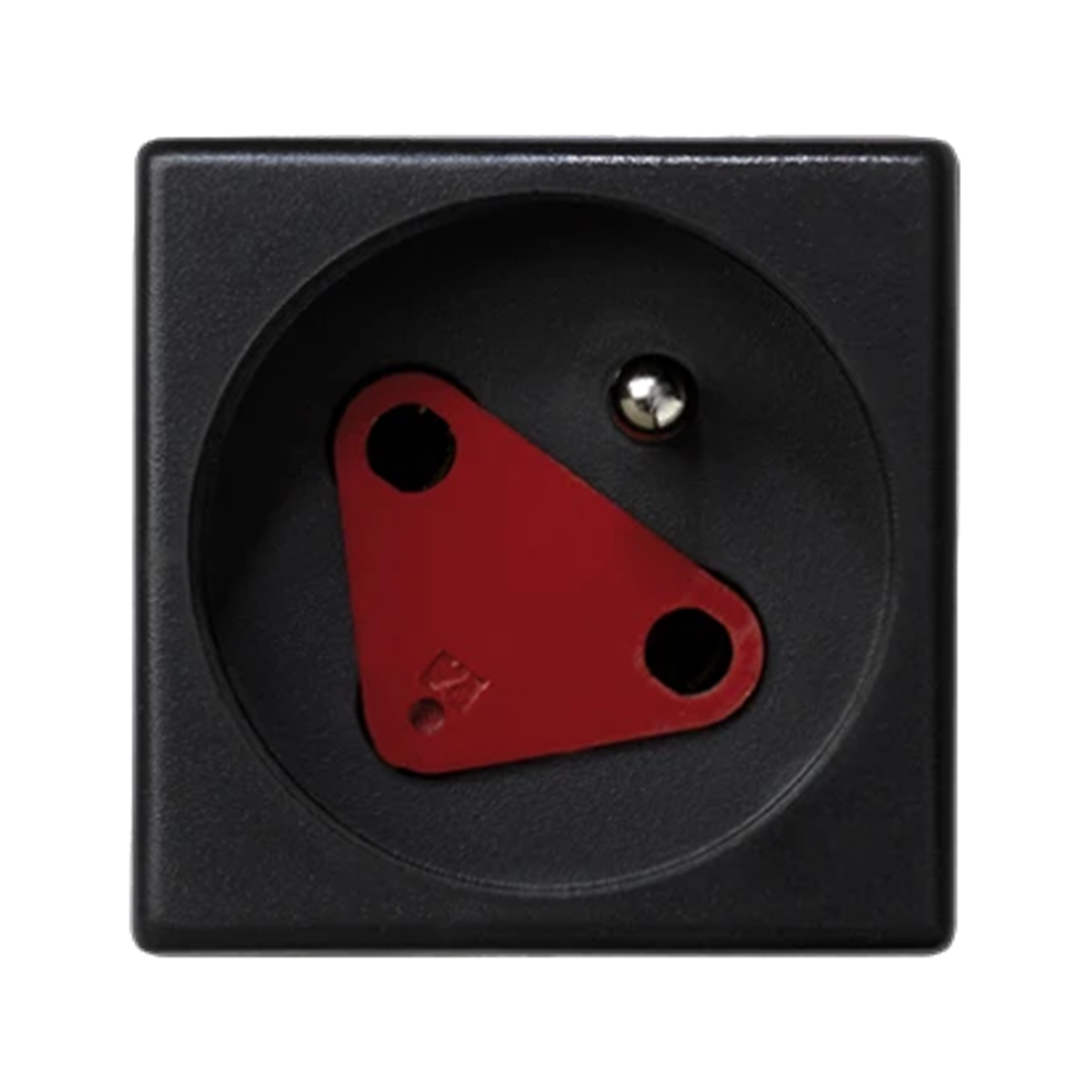

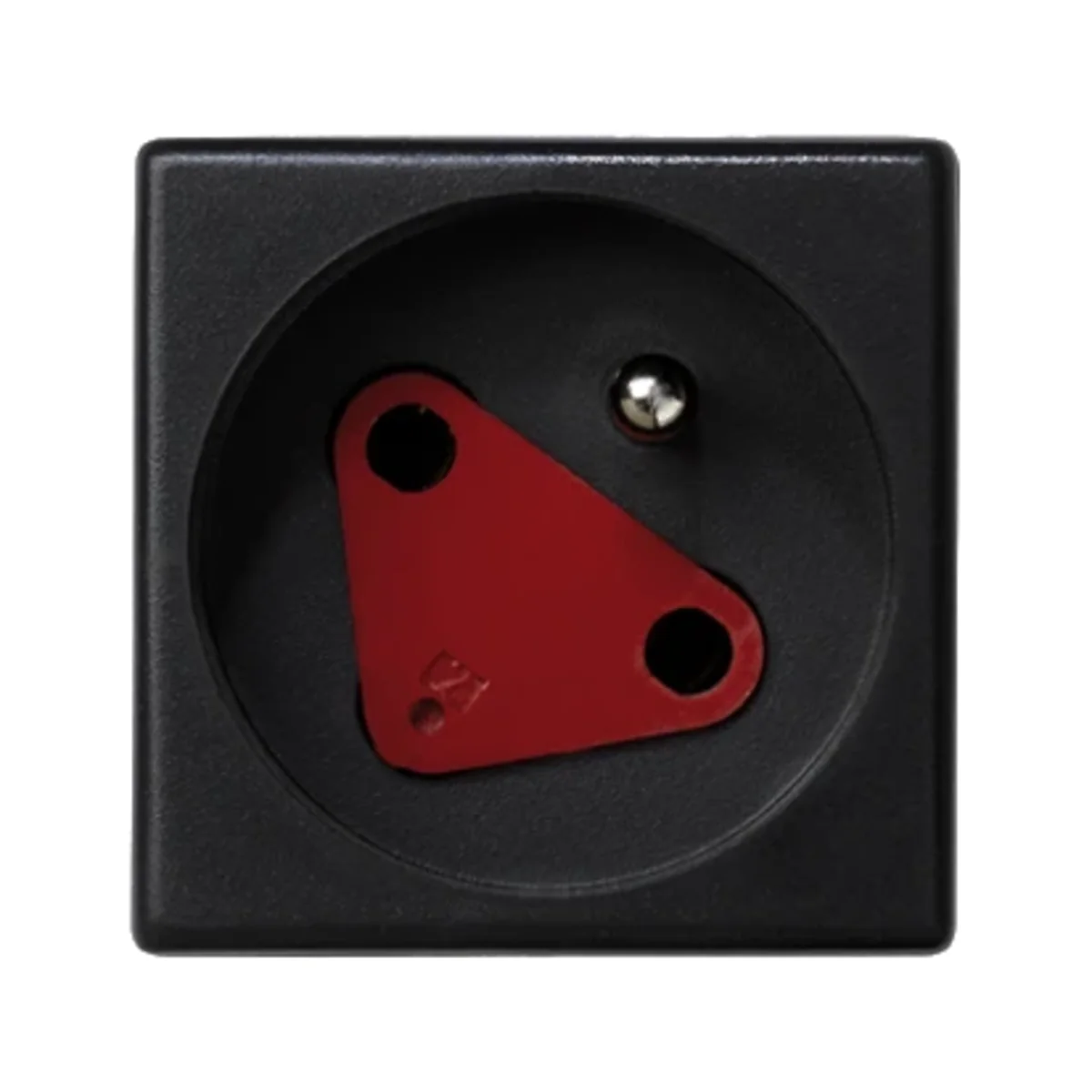

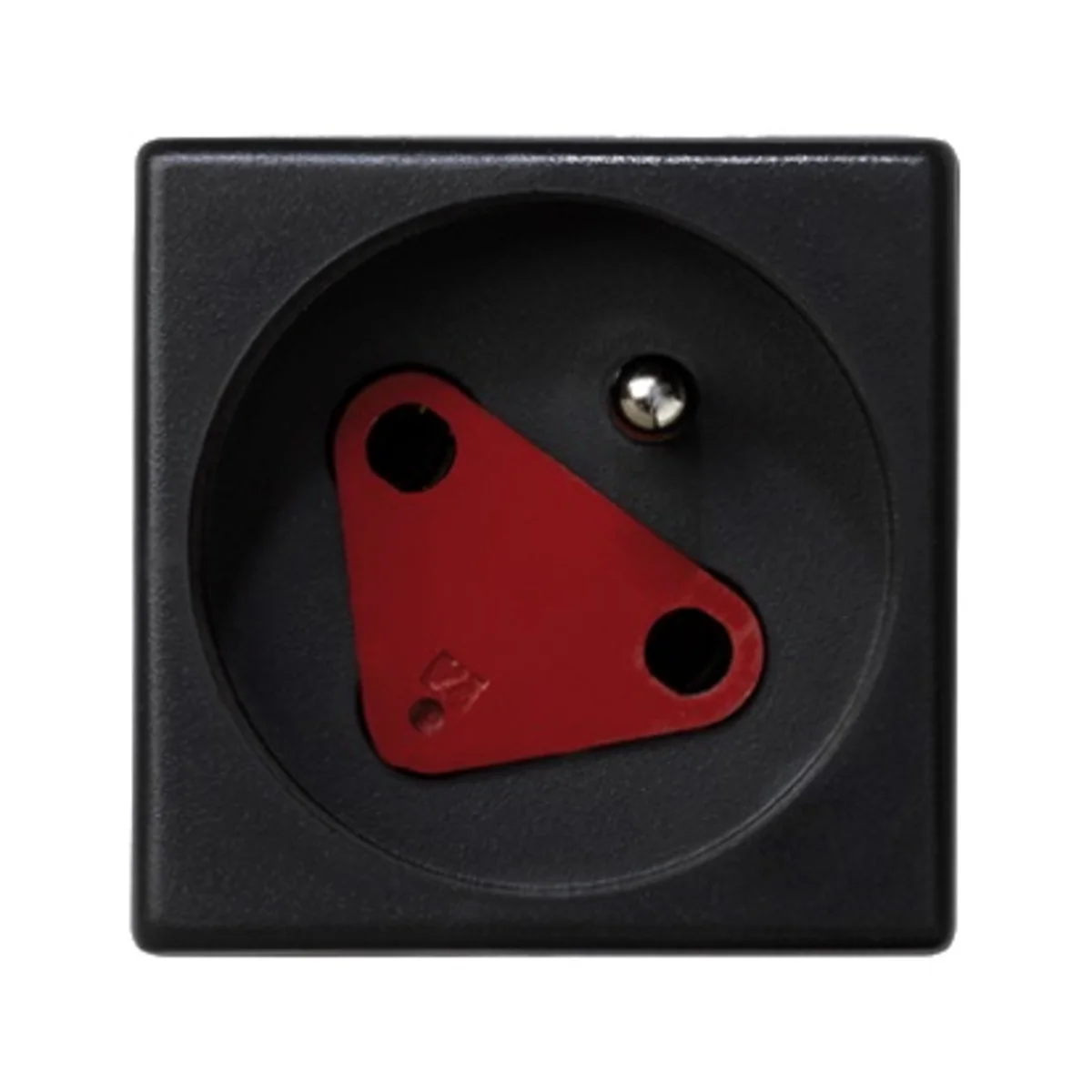

K45 DATA socket with key and grounding 16A, 230V quick connectors graphite gray KS22/14
local index:
MGE044KONT
Catalog No:
KS22/14
EAN code:
8426436022980
Price:
5,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electric socket in standard K45, from the manufacturer Contact Simon. The product catalog number is KS22/14.
FEATURES
- Single.
- Z grounding; grounding pin.
- DATE.
- Complete product.
- Color graphite gray< /strong>.
- Quick connectors.
- Rated current 16A.
- Rated voltage 230V.
- Ingress protection IP20.
- Mounting dimensions 45 x 45 mm.
- Clip-on installation.
- Key included.
SERIES DESCRIPTION
Electric socket of the K45 standard has been designed so that it can be used in various installations, such as floor boxes, columns or installation ducts.
Technical data
-
Halogen freeYes
-
Number of sockets1
-
ShapeSquare
-
InstallationBuilt-in
-
Rated current [A]16
-
FamilyK45
-
Width [mm]45
-
GroundHurt
-
Surface protectionNatural
-
Accurate colorGray graphite
-
Terminal typeThreadless
-
Shutters of current pathsYes
-
For the frame systemYes
-
Depth [mm]42.3
-
ColorGraphite
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
Type45x45
-
Height [mm]45
-
Surface finishmatte
-
BacklightNO
-
StandardEuropean
-
On the DATA keyYes
-
PKWIU27.33.13.0
Other technical data
-
Connection typePush-in clamp
-
Mounting methodBuilt-in installation
-
Surface protectionUntreated
-
Nominal voltage250 V
-
ColourAnthracite
-
MaterialPlastic
-
Surface finishingMatt
-
Suitable for degree of protection (IP)IP20
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,048 | 0,048 | 0,620 |
| Width (m) | 0,045 | - | 0,101 |
| Length (m) | 0,045 | - | 0,245 |
| Depth (m) | 0,042 | - | 0,049 |
