K.1 Comfort IR motion sensor cap 1.1m white gloss 85341279

Name: K.1 Comfort IR motion sensor cap 1.1m white gloss
Brand: BERKER
SKU: MAP383BERK
Price: 141.62 PLN

local index:

MAP383BERK

Catalog No:

85341279

EAN code:

4011334373834

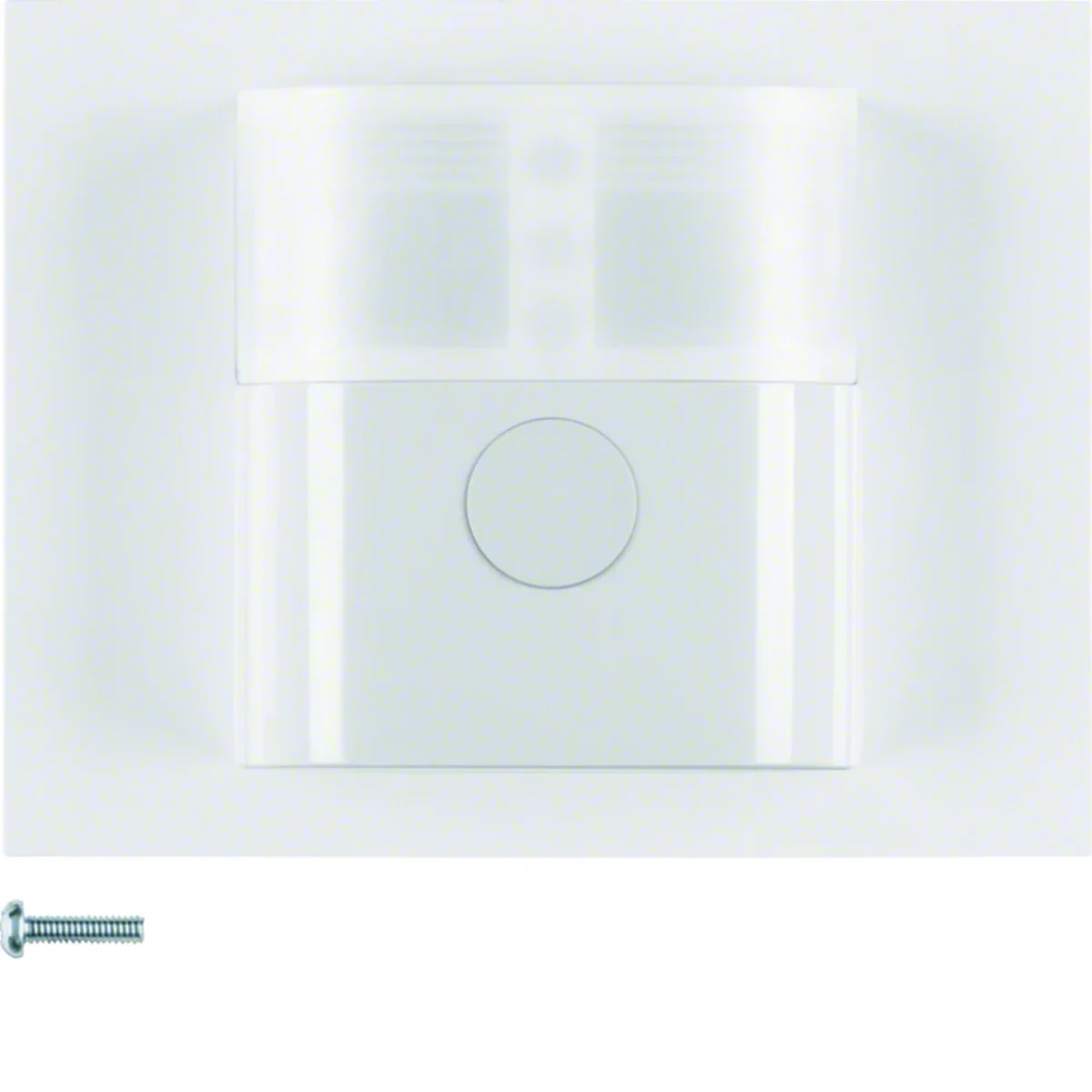

K.1 Comfort IR motion sensor cap 1.1m white gloss

Click on the photo to enlarge

Manufacturer: BERKER

Color: White

Shape: Rectangular

Material: Plastic

See full description

Price:

141,62 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

IR motion sensor cap comfort from the Berker K.1 series, i.e. simple forms enclosed in high-quality plastic that will work in modern interiors.

< p> Functions:

microprocessor control
pulse operation with idle time (e.g. for stair lighting installations/with pulse switching)
the function of programming the activation level of illumination activated by means of a button
with a button lock
the "party" function activated for 2 hours
with a memory function to simulate presence

Controls and indicators:

with on/off/automatic button

LED control:

with red/green/orange operation and status LEDs
socket compatibility LED indicator and mechanism

Technical data

Color

White
Material

Plastic
Type

For the motion sensor
Level of security

IP20
Accurate color

Snow white
Operation brightness level [%]

10 - 100
Lateral range [m]

≈ 8
For modular equipment

Not applicable

Shape

Rectangular
Installation

Flush-mounted
Family

K.1
Operating temperature range [°C]

from -5 to 45
Number of detection planes

3
Relative humidity (no condensation) [%]

0 - 65 (non-condensing)
Straight range [m]

≈ 12
PKWIU

27.40.30.0

Other technical data

Model

Movement sensor
Constant light control

No
Networkable

Yes
Creep-under protection

No
Max. reach sideways

8 m
Diameter reach on floor

0 m
Response value luminosity adjustable

Yes
Dim function with dimmer basic element

Yes
Staircase light controller

Yes
Material quality

Thermoplastic
Suitable for degree of protection (IP)

IP20
Min. switch-on time

10 s
Switch-off delay self-learning

No
Colour

White

Mounting method

Flush-mounted
HVAC-control

Yes
Suitable for wireless transmission

Yes
Mounting height

1.1 m
Max. reach frontally

12 m
Response value sensitivity adjustable

Yes
Teach-function for response value luminosity

Yes
Animal zone

No
Material

Plastic
Halogen free

Yes
Operation mode switch

Yes
Max. duty cycle

30 min
Detection angle horizontal

45 ... 90 °
RAL-number (similar)

9010

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,038	0,110	4,400	165,800
Width (m)	0,055	0,085	0,300	0,800
Length (m)	0,043	0,070	0,225	1,050
Depth (m)	0,070	0,085	0,400	1,200
