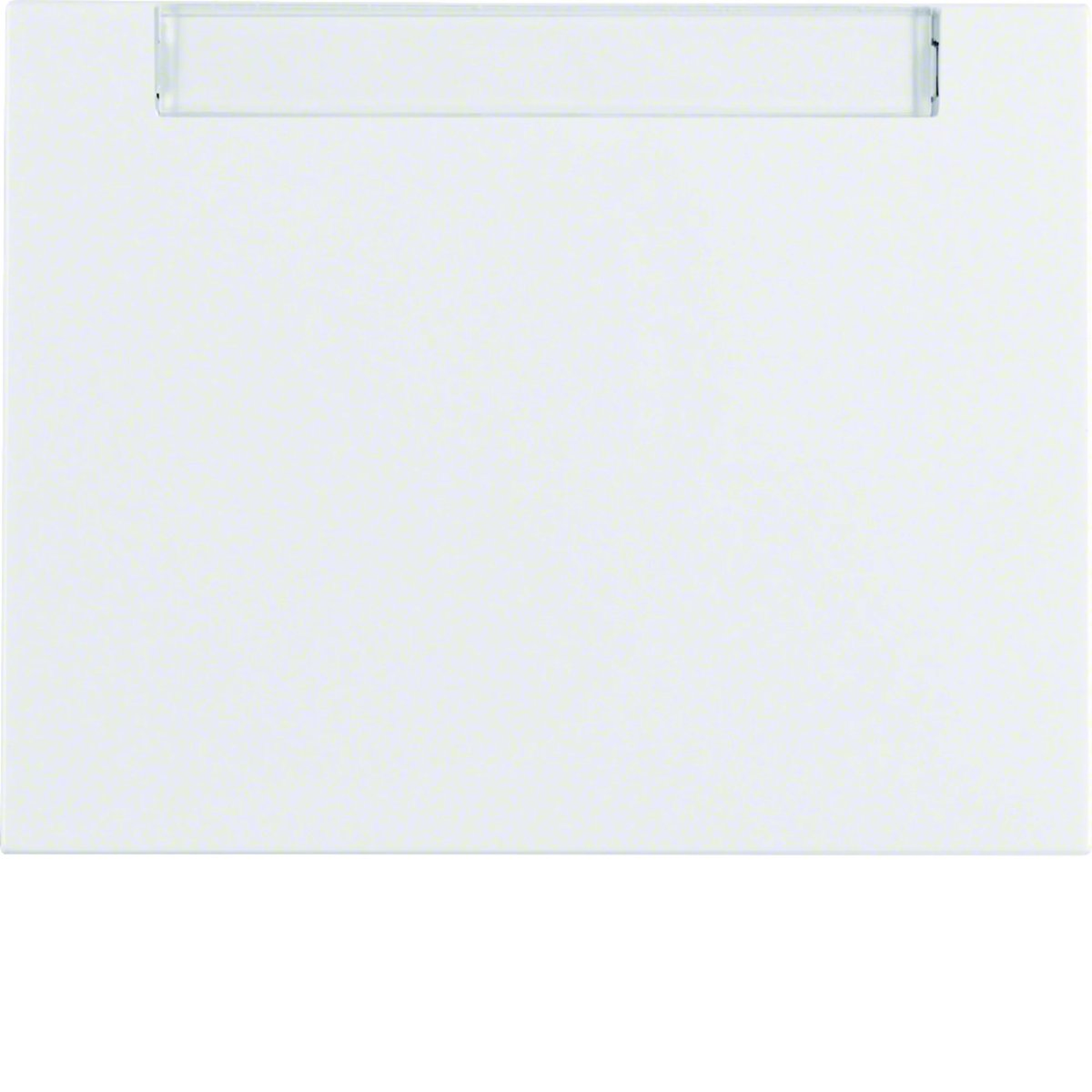

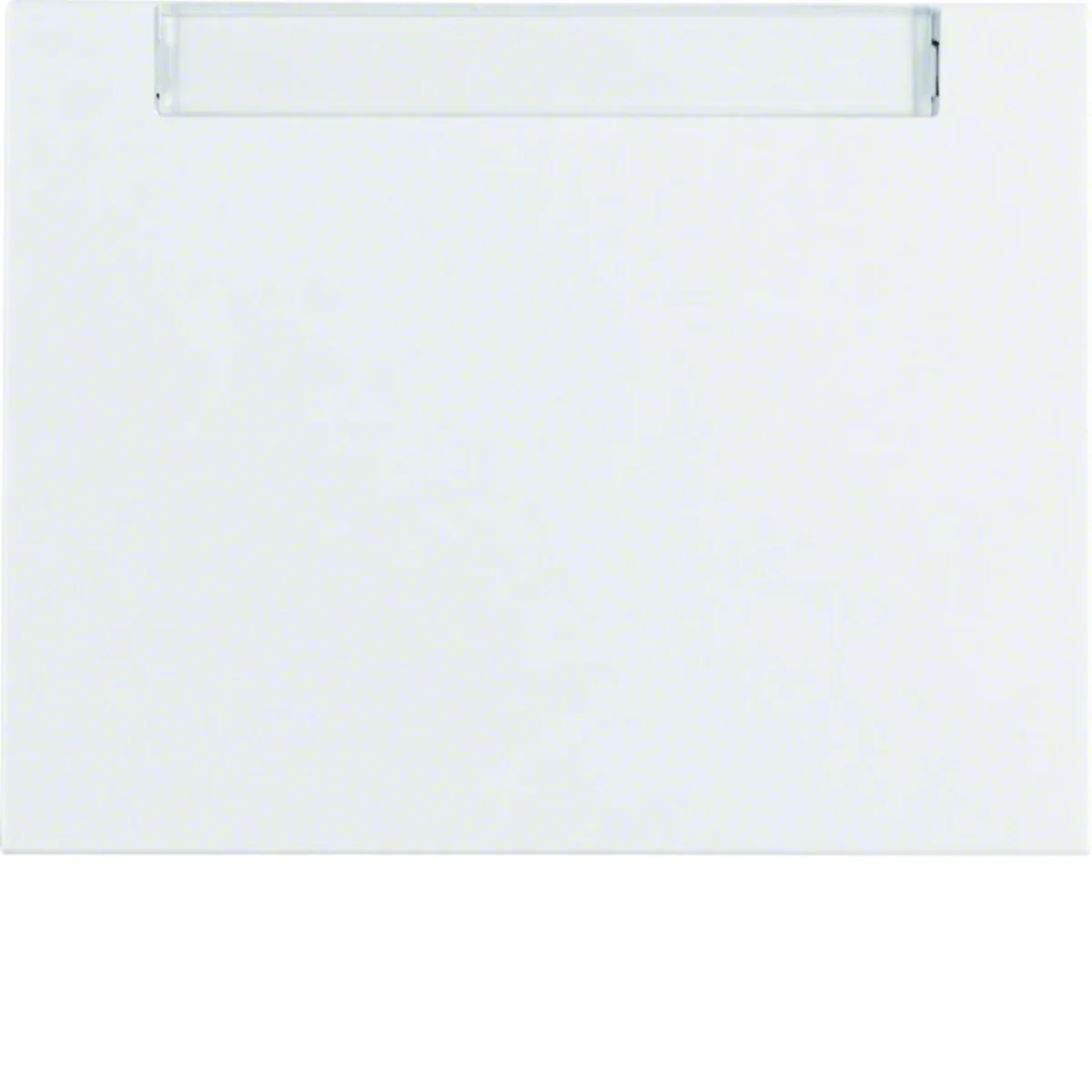

K.1 Button with a white description field 14267009

local index:
MAK074BERK
Catalog No:
14267009
EAN code:
4011334265580
Manufacturer: BERKER
Color: White
Material: Thermoplastic
Surface: Gloss
Price:
13,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The key with a description field, from the Berker K.1 series, i.e. simple forms enclosed in high-quality material that will work well in modern interiors.

< ul>
  • for plasterboard walls
  • for push-button switch
  • for stair/cross switches
  • the height of the description field is adapted to the P-touch strip 6 mm
  • Technical data

    • Color
      White
    • Surface
      Gloss
    • PKWIU
      27.12.40.0
    • Material
      Thermoplastic
    • Family
      K.1

    Other technical data

    • Model
      One-part rocker
    • Utilization
      Switch/push button
    • Type of fastening
      Clamp mounting
    • Material
      Plastic
    • Halogen free
      Yes
    • Surface finishing
      Glossy
    • RAL-number (similar)
      9010
    • With exchangeable lens/symbol
      No
    • Impact strength
      IK05
    • Scannable symbol/barrier free
      No
    • Suitable for touch sensor connector for bus system
      Yes
    • Monitoring window/light outlet
      No
    • Material quality
      Thermoplastic
    • Surface protection
      Untreated
    • Colour
      White
    • With label area
      Yes
    • Suitable for degree of protection (IP)
      IP44

    Bulk packaging

    A kind of package Karton Pakiet Paleta
    Quantity 1 pcs. 10 pcs. 120 pcs. 3840 pcs.
    Weight (kg) 0,020 0,300 4,030 151,960
    Width (m) 0,055 0,085 0,300 0,800
    Length (m) 0,025 0,075 0,225 1,050
    Depth (m) 0,071 0,275 0,400 1,200
