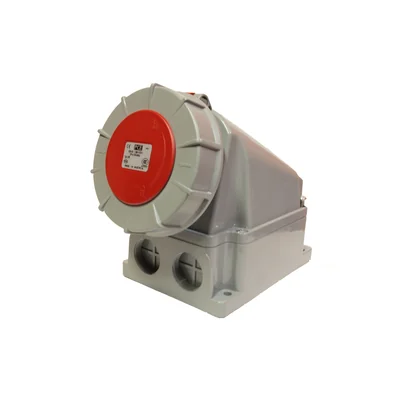

IP67 fixed socket without gland 63A 400V 3P+E 134-6
local index:
MKM151PCEQ
Catalog No:
134-6
EAN code:
9003399032646
Price:
38,94 €
gross / pcs.
(including VAT 23%)
44,81 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

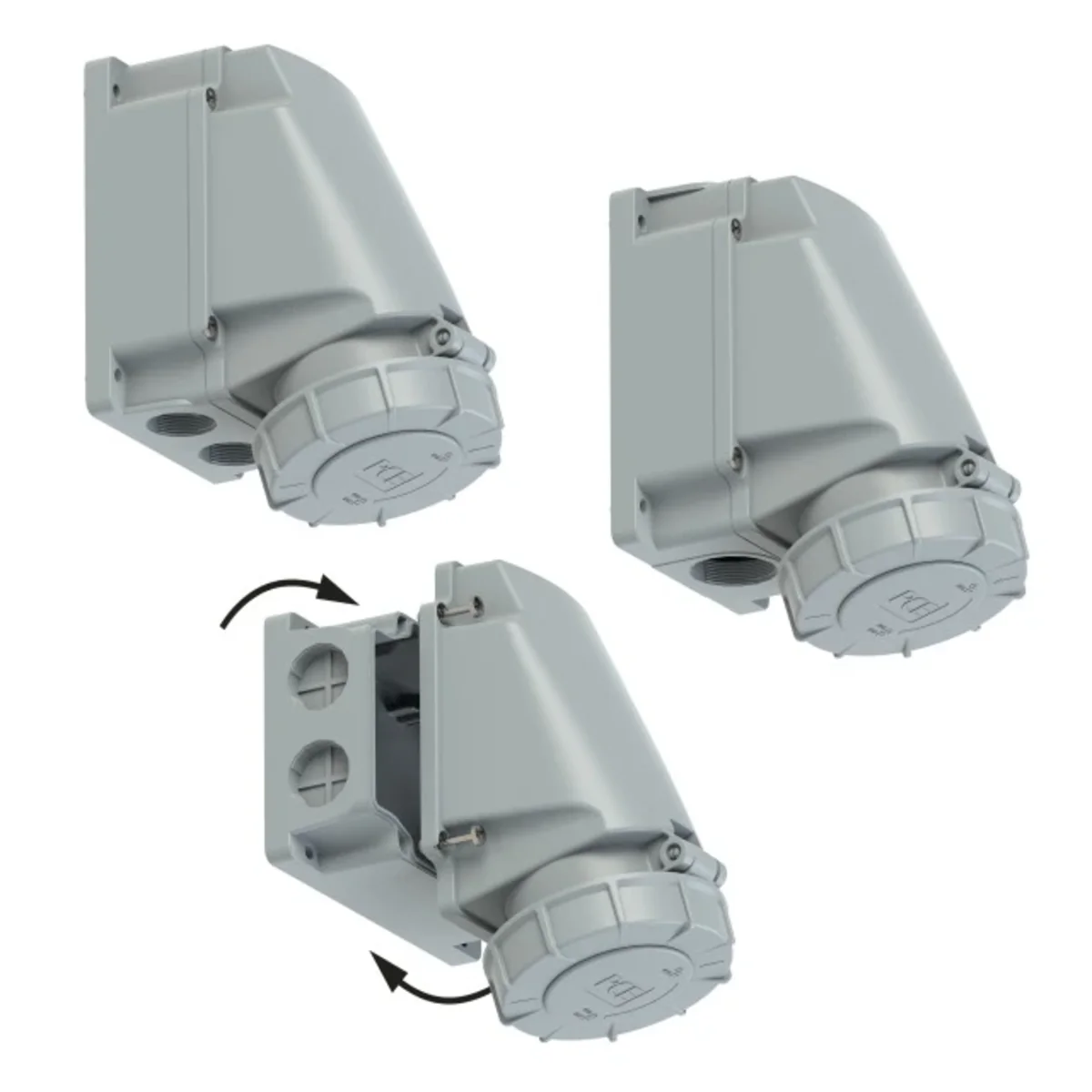

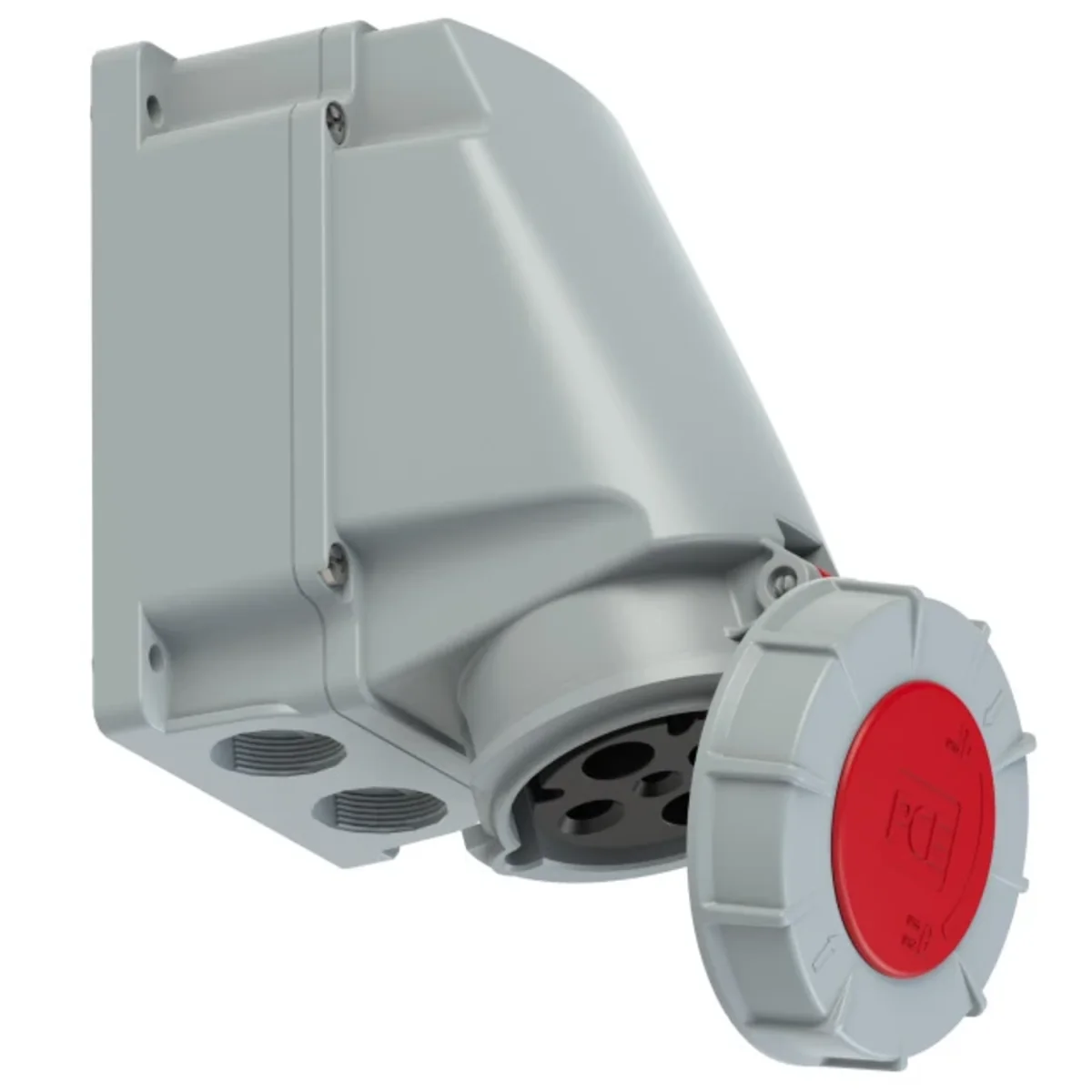

Fixed watertight socket made of PC/ABS plastic. Entrance from above, from below or from the wall. It is possible to move the upper part of the housing by 180°. Socket without cable gland. The stuffing box is sold as a separate item.
Technical data
-
Rated frequency [Hz]50/60
-
Number of contacts4
-
Rated current [A]63
-
Solid cable [mm²]6.0-25.0
-
ContactBrass plates
-
Connection typecage contact
-
Height [mm]170
-
Depth [mm]173
-
Rated voltage [V]400
-
Hose [mm²]6.0-16.0
-
Level of securityIP66
-
Width [mm]118
-
Weight [g]869
-
PKWIU27.33.13.0
Manufacturer details
-
ManufacturerPCE Polska Sp. z o.o.
-
Address58-200 Dzierżoniów Podwalna 8A
-
Phone number
-
E-mail
-
Tax identification number8821000347
-
GLN5909000679856
